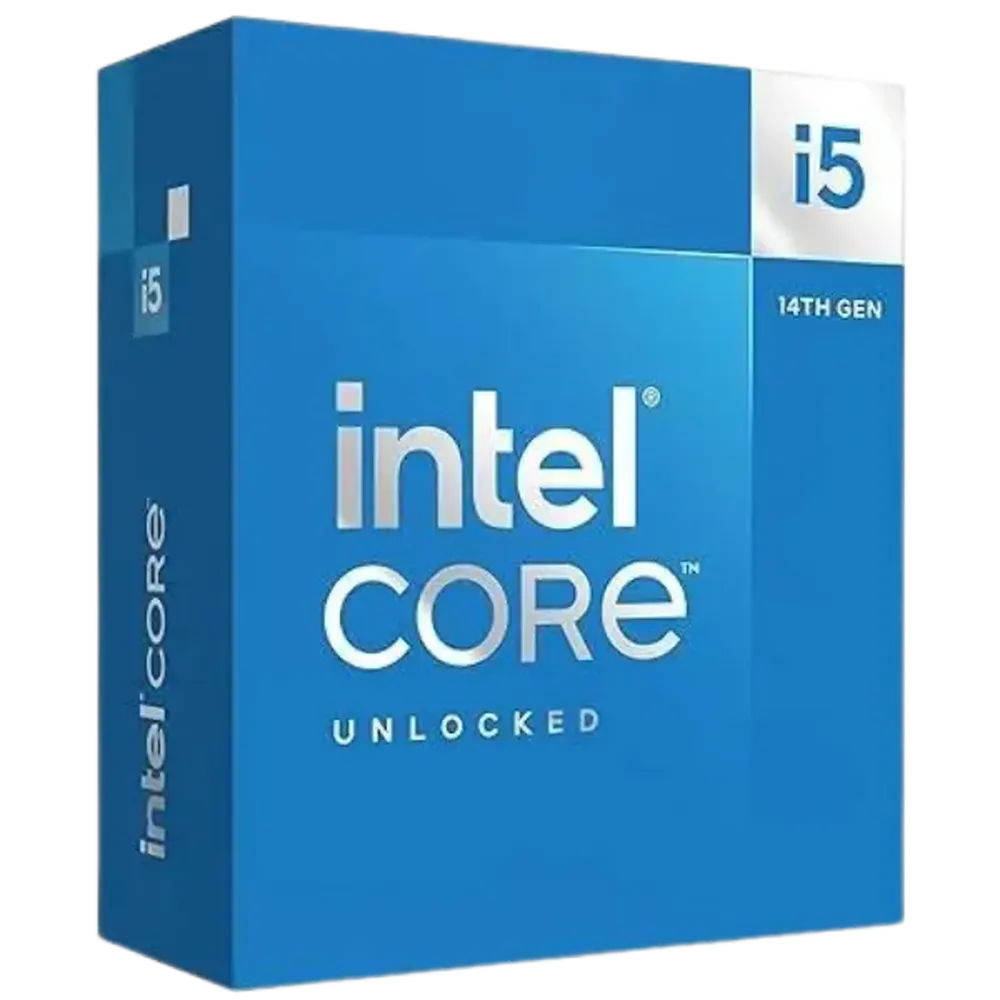

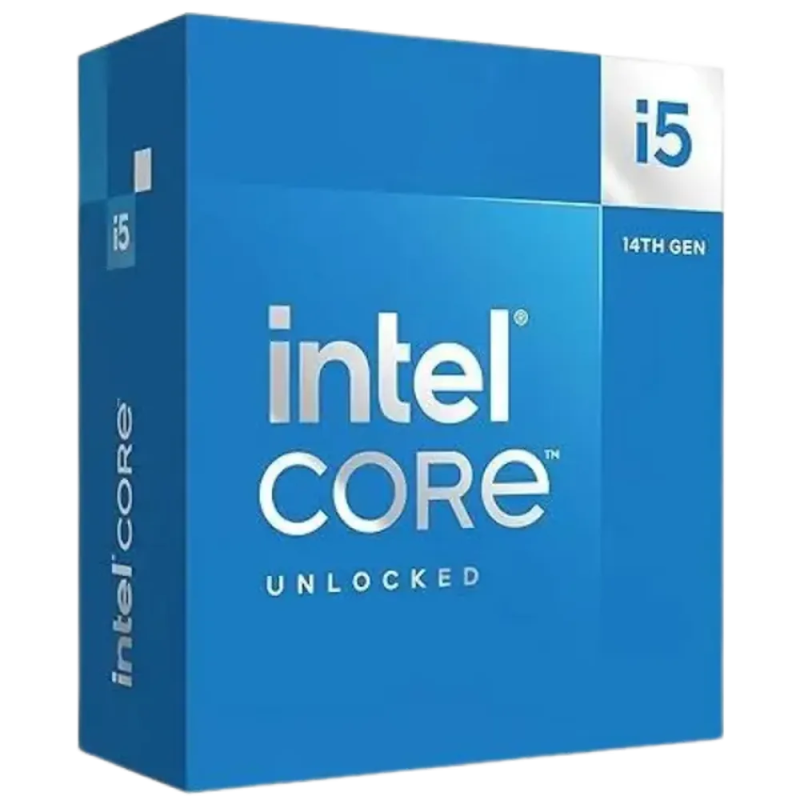

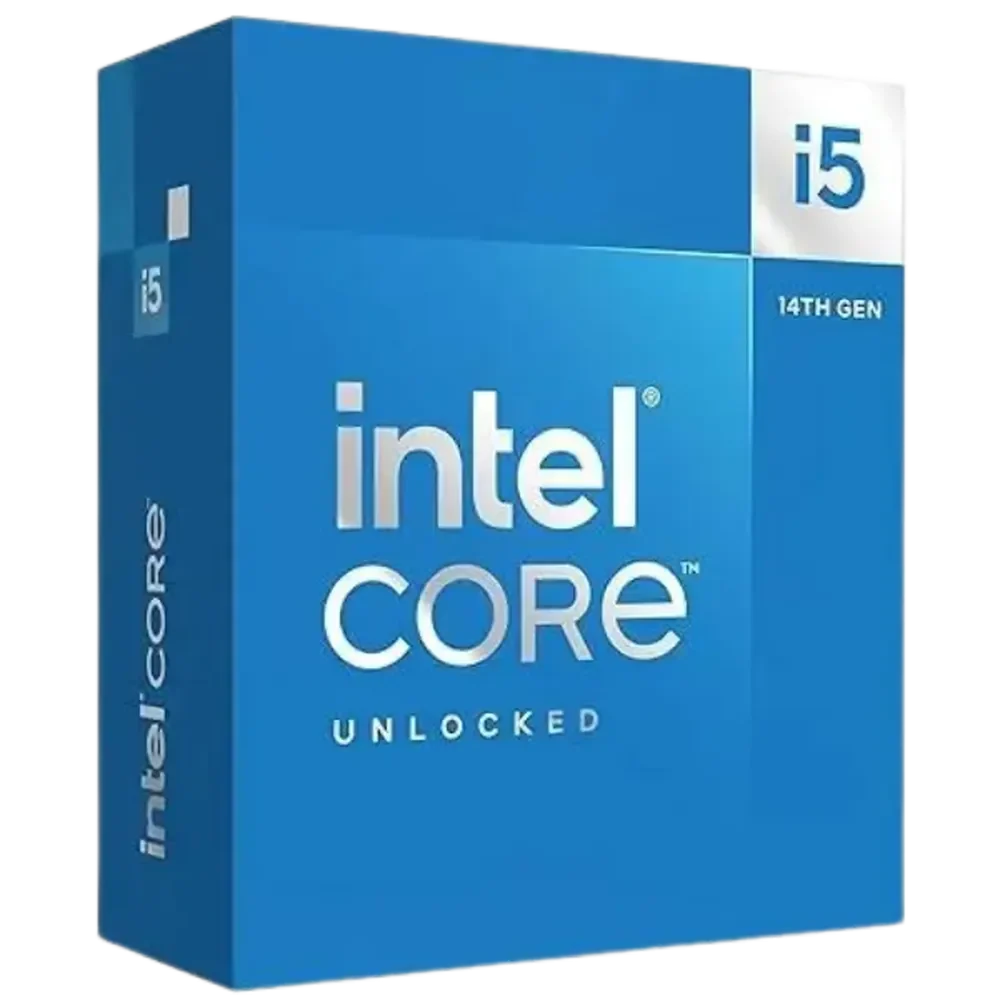

INTEL Core i5 14400F 14th Generation Processor ( 4.7 GHz / 10 Cores / 16 Threads )

The Intel Core i5-14400F is a 14th Generation desktop processor built on Intel’s Raptor Lake architecture and fabricated on the Intel 7 process node. It slots into the LGA1700 (FCLGA1700) socket, making it compatible with 600- and 700-series motherboards, and carries the product code BX8071514400F. The i5-14400F features a hybrid core design with 6 Performance-cores and 4 Efficient-cores, delivering a total of 10 cores and 16 threads. Intel Thread Director, embedded directly into the silicon, works with the operating system to route each workload to the appropriate core type in real time. Performance-cores reach a base clock of 2.5 GHz and a maximum Turbo Boost 2.0 frequency of 4.7 GHz, while Efficient-cores operate at a 1.8 GHz base and boost up to 3.5 GHz. This architecture lets the processor handle demanding applications on its P-cores while background tasks such as media streaming run efficiently on E-cores. The processor ships with a 20 MB Intel Smart Cache (L3) and 9.5 MB of total L2 cache. Its 65 W processor base power keeps platform cooling requirements modest, though maximum turbo power reaches 148 W under sustained all-core loads. Thermal junction maximum is rated at 100 °C. For memory, the i5-14400F supports dual-channel DDR5 up to 4800 MT/s or DDR4 up to 3200 MT/s, with a maximum addressable memory of 192 GB and peak bandwidth of 76.8 GB/s. On the connectivity side, it provides up to 20 PCIe lanes — 16 lanes of PCIe 5.0 and 4 lanes of PCIe 4.0 — in configurations of up to 1×16+4 or 2×8+4, suitable for a high-speed discrete GPU alongside an NVMe SSD. Note: the “F” suffix indicates no integrated graphics; a dedicated GPU is required. Advanced software features include Intel Deep Learning Boost for accelerated AI inference, Gaussian and Neural Accelerator 3.0 for enhanced video-chat noise suppression, Speed Shift Technology, Enhanced SpeedStep Technology, and Hyper-Threading. Security capabilities cover AES-NI, Intel Boot Guard, Control-Flow Enforcement Technology, Virtualization Technology (VT-x and VT-d), OS Guard, Execute Disable Bit, and Secure Key. Instruction set support includes SSE4.1, SSE4.2, and AVX2. Key Verified Specifications: • Model: i5-14400F | SKU: BX8071514400F • Architecture: Raptor Lake (14th Gen) | Process: Intel 7 • Socket: FCLGA1700 | Segment: Desktop • Cores / Threads: 10 (6P + 4E) / 16 • P-core Base / Boost: 2.5 GHz / 4.7 GHz • E-core Base / Boost: 1.8 GHz / 3.5 GHz • L3 Cache: 20 MB Smart Cache | L2 Cache: 9.5 MB • TDP (Base Power): 65 W | Max Turbo Power: 148 W • Memory: DDR5-4800 or DDR4-3200, dual-channel, up to 192 GB • PCIe: 16× PCIe 5.0 + 4× PCIe 4.0 (20 lanes total) • Integrated Graphics: None • Warranty: 3 Years
