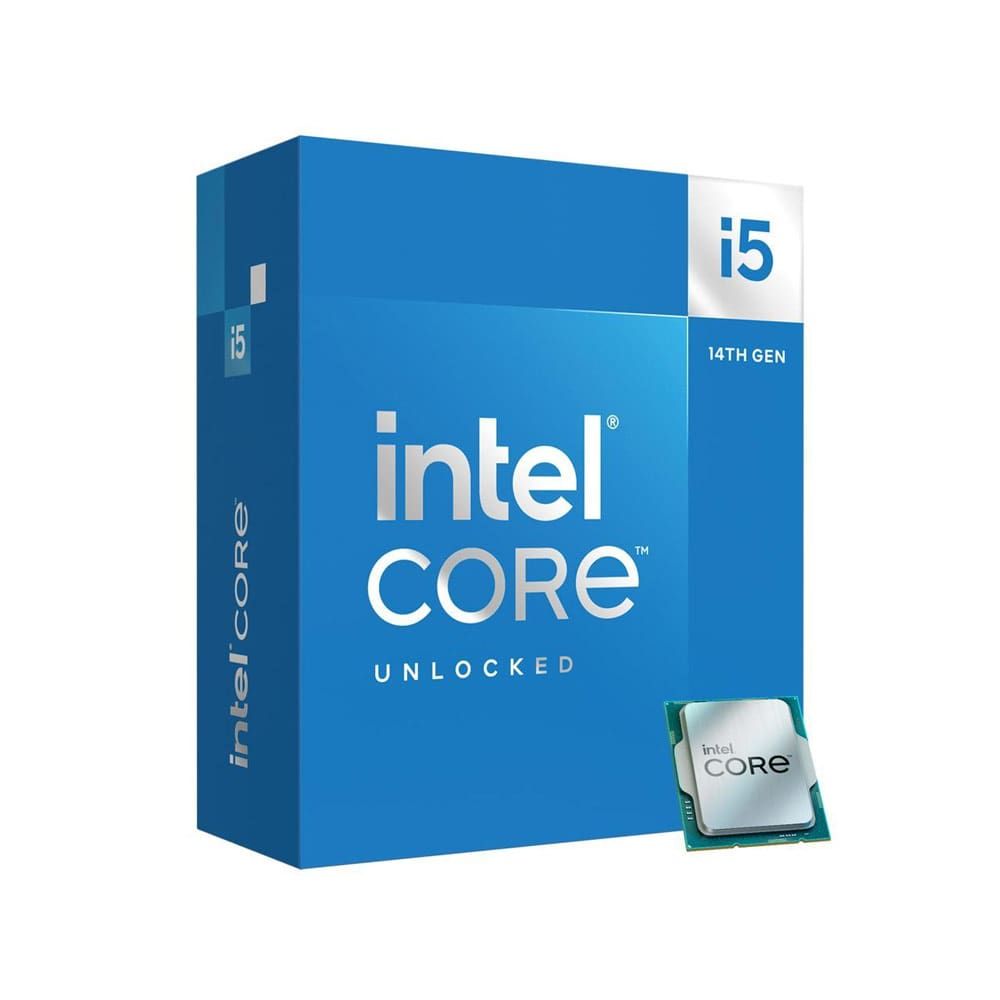

Features Of INTEL Core i5 14600K 14th Generation Processor ( 5.3 GHz / 14 Cores / 20 Threads )
Power up your productivity, gaming, and content creation with the Intel Core i5-14600K 3.5 GHz 14-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14600K powers applications and games with six 3.5 GHz Performance-cores while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 24MB of cache and a 5.3 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. You can overclock this processor for even greater performance. The Core i5-14600K also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Intel core i5 14th Gen processor is among the best processors for those who want functional performance for the intel i5 processor price.
The Core i5-14600K features integrated Intel UHD 770 Graphics.
This processor is backed by a 3-year warranty.
Hybrid Core Design
Intel Thread Director
PCIe 4.0 & 5.0
Integrated Graphics
Gaussian & Neural Accelerator 3.0
Intel Deep Learning Boost
- 14 cores (6 P-cores + 8 E-cores) and 20 threads. Integrated Intel UHD Graphics 770 included
- Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
- Up to 5.3 GHz unlocked. 24MB Cache
- Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
- Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. Intel Optane Memory support. No thermal solution included

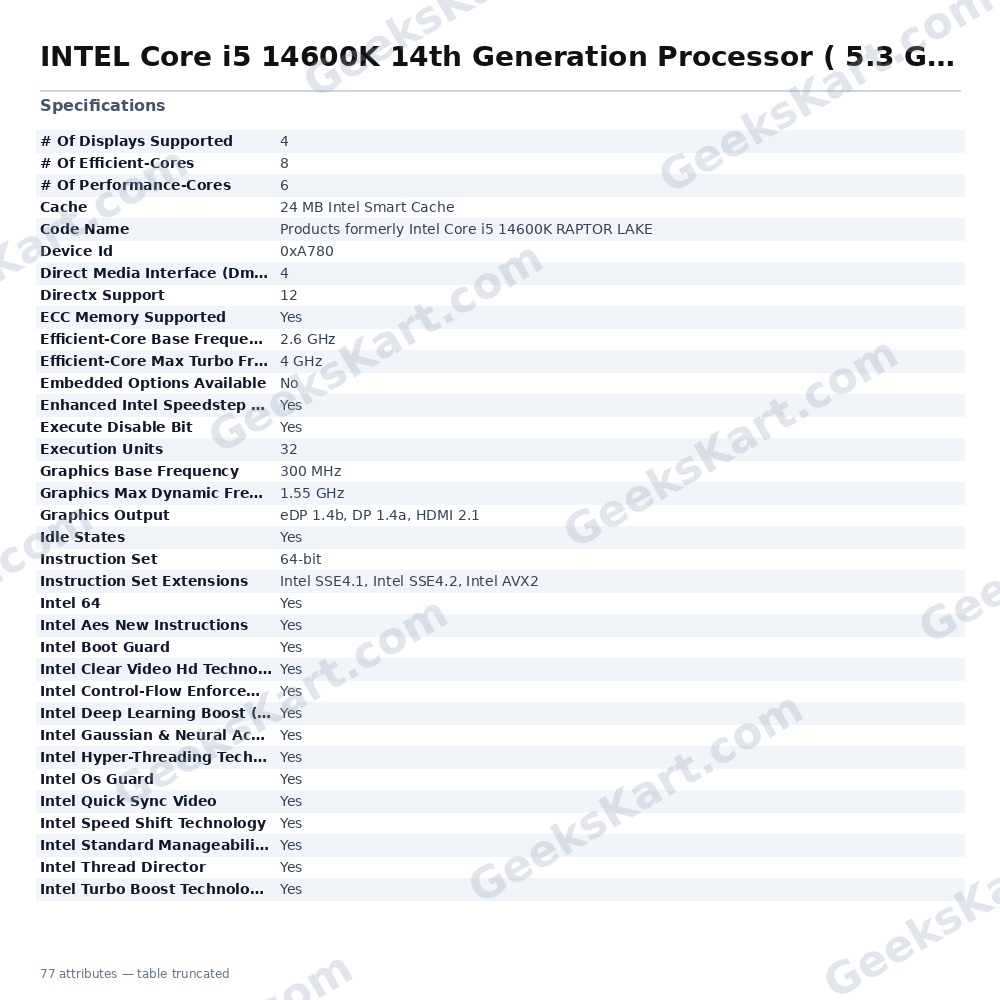

Specifications INTEL Core i5 14600K 14th Generation Processor ( 5.3 GHz / 14 Cores / 20 Threads )
| Code Name | Products formerly Intel Core i5 14600K RAPTOR LAKE |
| Vertical Segment | Desktop |
| Processor Number | i5-14600K |
| Product Code | BX8071514600K |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 20 |
| Max Turbo Frequency | 5.3 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core Base Frequency | 3.5 GHz |
| Efficient-core Base Frequency | 2.6 GHz |
| Cache | 24 MB Intel Smart Cache |
| Total L2 Cache | 20 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 181 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4’23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported | Yes |
| GPU Specifications | |
| Processor Graphics | Intel UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| OpenCL Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel Quick Sync Video | Yes |
| Intel Clear Video HD Technology | Yes |
| # of Displays Supported | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel Gaussian & Neural Accelerator 3.0 | Yes |
| Intel Thread Director | Yes |
| Intel Deep Learning Boost (Intel DL Boost) on CPU | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Technology 2.0 | Yes |
| Intel Hyper-Threading Technology | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel Standard Manageability (ISM) | Yes |
| Intel Control-Flow Enforcement Technology | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
