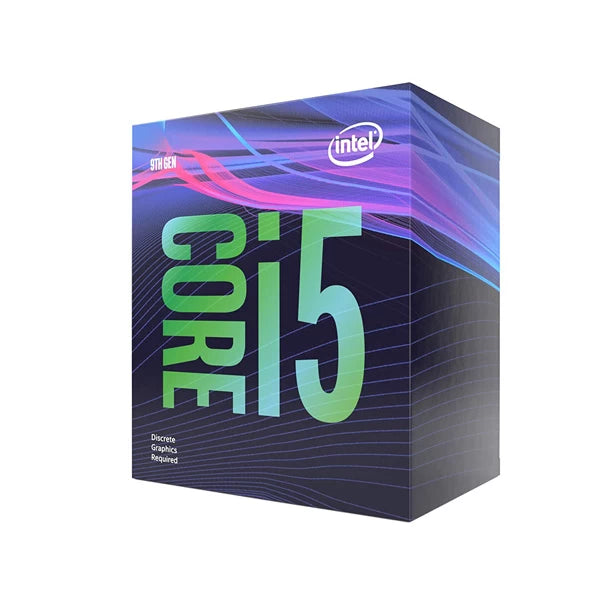

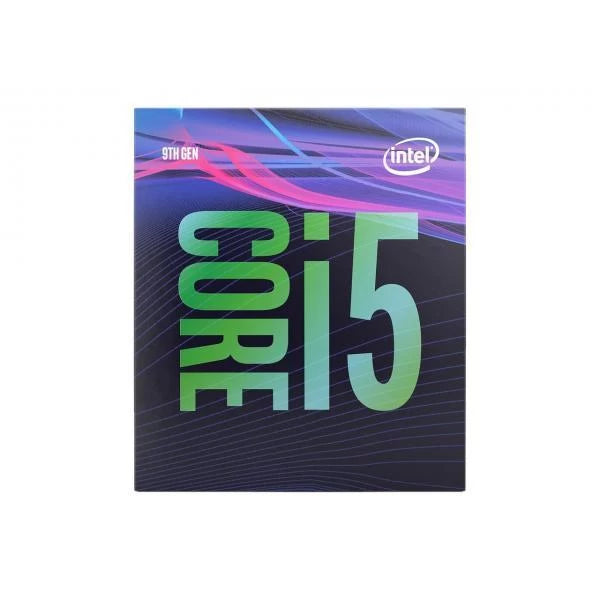

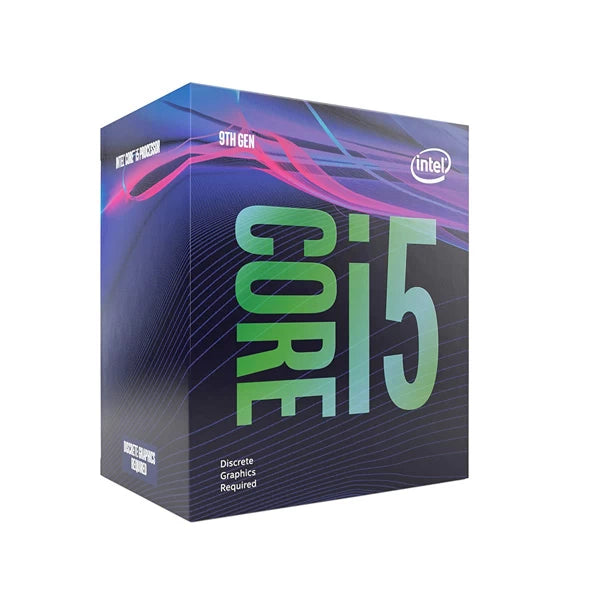

INTEL Core i5 9500F 9th Generation Processor ( 4.4 GHz / 6 Cores / 6 Threads )
MPN INTEL-I5-9500F · Brand Intel
Features of INTEL Core i5 9500F 9th Generation Processor The Intel Core i5-9500F was a desktop processor with 6 cores, launched in April 2019. It is part of the Core i5 lineup, using the Coffee Lake Refresh architecture with Socket 1151. Core i5-9500F has 9 MB of L3 cache and operates at 3 GHz by default, but can boost up to 4.4 GHz, depending on the workload. Intel is building the Core i5-9500F on a 14 nm production process, the transistor count is unknown. The multiplier is locked on Core i5-9
Threads 6
Intel® Hyper-Threading Technology No
Bus Speed 8 GT/s
Enhanced Intel Speedstep® Technology Yes
₹14,395.00
Inclusive of GST · GST invoice available
Out of stock
Warranty
3 Years
Dispatch
24–48 hrs
Returns
7-day
01
Overview
Features of INTEL Core i5 9500F 9th Generation Processor
The Intel Core i5-9500F was a desktop processor with 6 cores, launched in April 2019. It is part of the Core i5 lineup, using the Coffee Lake Refresh architecture with Socket 1151. Core i5-9500F has 9 MB of L3 cache and operates at 3 GHz by default, but can boost up to 4.4 GHz, depending on the workload.
Intel is building the Core i5-9500F on a 14 nm production process, the transistor count is unknown. The multiplier is locked on Core i5-9500F, which limits its overclocking capabilities.
With a TDP of 65 W, the Core i5-9500F consumes typical power levels for a modern PC. Intel's processor supports DDR4 memory with a dual-channel interface.
The highest officially supported memory speed is 2666 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the system, Core i5-9500F uses a PCI-Express Gen 3 connection.
This latest intel processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Core i5-9500F, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
The Intel core i5 9th Gen processor is among the best processors for those who want functional performance for the intel i5 CPU price.
- SeriesCore i5 (9th Gen)
- CORES6 Cores
- THREADS6 Threads
- SocketLGA1151
- SPEED3 GHz
- SPEED (TURBO)4.4 GHz
- CACHE9 MB
- MAX MEMORY SUPPORT64 GB
- INCLUDED CPU COOLERYes
- UNLOCKEDNo
- TDP65W
- WARRANTY*3 Years
Specifications of INTEL Core i5 9500F 9th Generation Processor
| Product Collection | 9th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Coffee Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-9500F |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Cores | 6 |
| Threads | 6 |
| Base Frequency | 3.00 GHz |
| Max Turbo Frequency | 4.40 GHz |
| Cache | 9 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel Turbo Boost 2.0 Technology Frequency | 4.40 GHz |
| TDP | 65 W |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-2666 |
| Memory Channels | 2 |
| Max Memory Bandwith | 41.6 GB/s |
| ECC Memory Supported | No |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configuration | Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Socket Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C (65W) |
| T Junction | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Turbo Boost Technology* | 2 |
| Intel vPro® Platform Eligibility | No |
| Intel® Hyper-Threading Technology | No |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-Bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
02

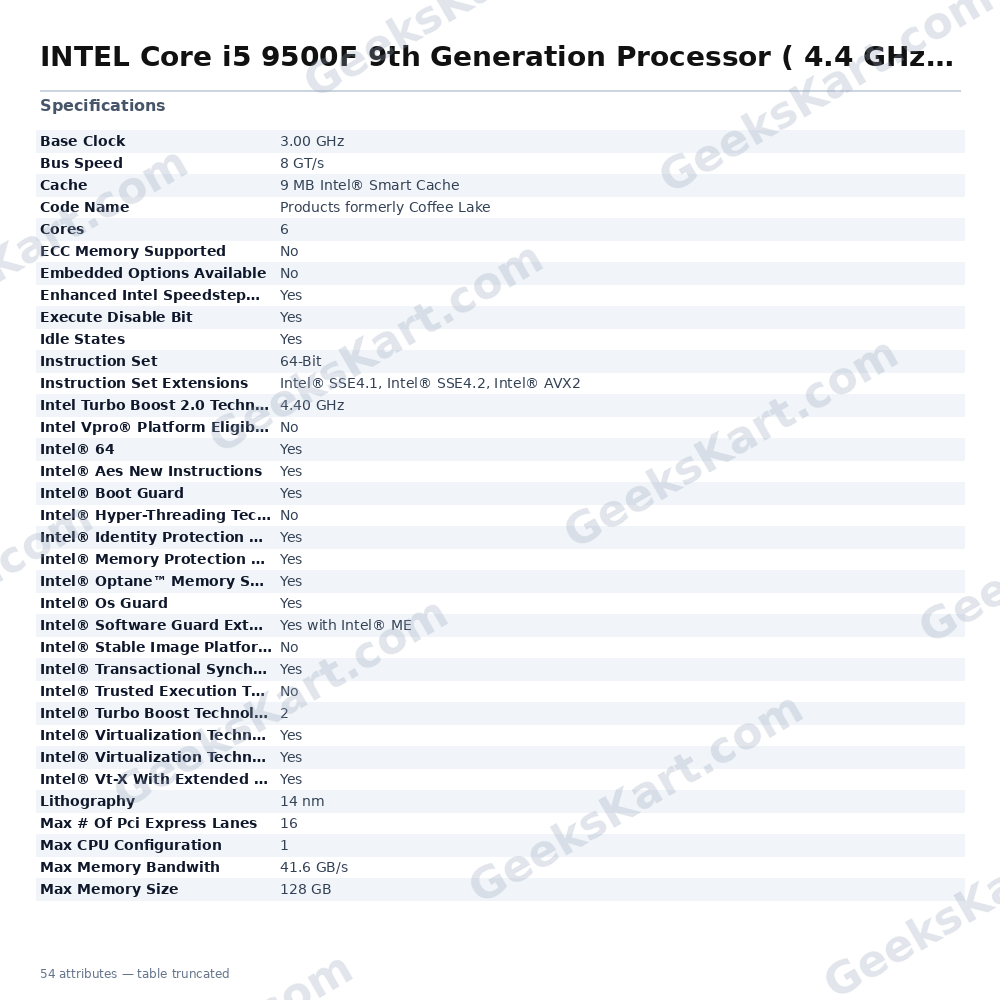

Datasheet
| Warranty | 3 Years |
|---|---|
| Cores | 6 |
| Threads | 6 |
| TDP | 65 W |
| Cache | 9 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Code Name | Products formerly Coffee Lake |
| Intel® 64 | Yes |
| Secure Key | Yes |
| T Junction | 100°C |
| Idle States | Yes |
| Lithography | 14 nm |
| Scalability | 1S Only |
| Memory Types | DDR4-2666 |
| Package Size | 37.5mm x 37.5mm |
| Base Clock | 3.00 GHz |
| Use Conditions | PC/Client/Tablet |
| Instruction Set | 64-Bit |
| Max Memory Size | 128 GB |
| Memory Channels | 2 |
| Intel® Os Guard | Yes |
| Processor Number | i5-9500F |
| Socket Supported | FCLGA1151 |
| Vertical Segment | Desktop |
| Intel® Boot Guard | Yes |
| Product Collection | 9th Generation Intel® Core™ i5 Processors |
| Execute Disable Bit | Yes |
| Max Memory Bandwith | 41.6 GB/s |
| Max Turbo Frequency | 4.40 GHz |
| ECC Memory Supported | No |
| Pci Express Revision | 3 |
| Max CPU Configuration | 1 |
| Pci Express Configuration | Up to 1×16, 2×8, 1×8+2×4 |
| Embedded Options Available | No |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Max # Of Pci Express Lanes | 16 |
| Intel® Aes New Instructions | Yes |
| Thermal Solution Specification | PCG 2015C (65W) |
| Intel® Turbo Boost Technology* | 2 |
| Thermal Monitoring Technologies | Yes |
| Intel Vpro® Platform Eligibility | No |
| Intel® Hyper-Threading Technology | No |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Trusted Execution Technology | No |
| Enhanced Intel Speedstep® Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Virtualization Technology (Vt-X) | Yes |
| Intel Turbo Boost 2.0 Technology Frequency | 4.40 GHz |
| Intel® Stable Image Platform Program (Sipp) | No |
| Intel® Vt-X With Extended Page Tables (Ept) | Yes |
| Intel® Software Guard Extensions (Intel® Sgx) | Yes with Intel® ME |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Memory Protection Extensions (Intel® Mpx) | Yes |
| Intel® Virtualization Technology For Directed I/O (Vt-D) | Yes |
