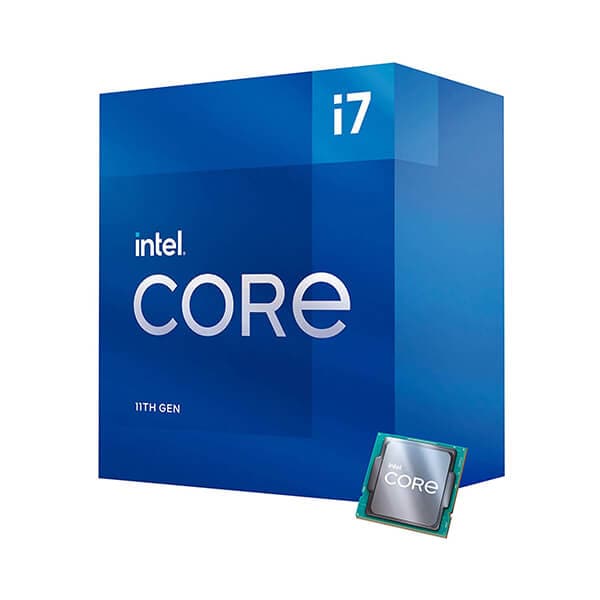

Features Of INTEL Core I7 11700K 11th Generation Processor
Introducing the newest and fastest INTEL Core i7 11700K processor built based on 14 nm lithography supporting Socket type LGA 1200. The Processors features 8 Core which allow the processor to run multiple programs simultaneously without slowing down the system, while the 16 threads allow instructions to be handled by a single CPU core along with Hyper Threading Technology.
With 3.60 GHz Base frequency, the Intel Turbo Boost 3.0 technology cranks maximum turbo frequency up to blazing 5.00 GHz. The processor is desirable for a gamer looking for a fantastic in-game experience and a creator that is ready to do more creating and sharing alike.
All this paired in INTEL Core i7 with 16MB of Intel Smart Cache. It has a TDP rating of 125W with max memory size of 128GB dual-channel DDR4 support for up-to 3200Mhz with Intel top notch security features.
This processor is designed for users who value fast responsiveness and comes with built-in Intel UHD Graphics 750 and 4K support at 60Hz, with the cutting-edge processor architecture. The graphics processor is bundled with DirectX support, OpenGL support and supports up to 3 displays offering you a never like gaming experience.
Play, record and stream simultaneously with high FPS and effortlessly switch to heavy multitasking workloads.
Engineered for play.
Intel’s latest desktop processor architecture and fast clock speeds deliver high frame rates and low latency for competitive play and more immersive experiences.
Works hard, too.
The improved productivity of the 11th Gen Intel Core processors will help you get your work done fast and back in the game in no time.
Game for a crowd.
The efficient multi-threaded performance of the 11thGen Intel Core processors allow you to maximize your streaming quality and maintain high FPS while gaming.
Customized performance.
With an extensive suite of overclocking tools like the Intel Performance Maximizer and Intel Extreme Tuning Utility, you can get the most from your unlocked processor

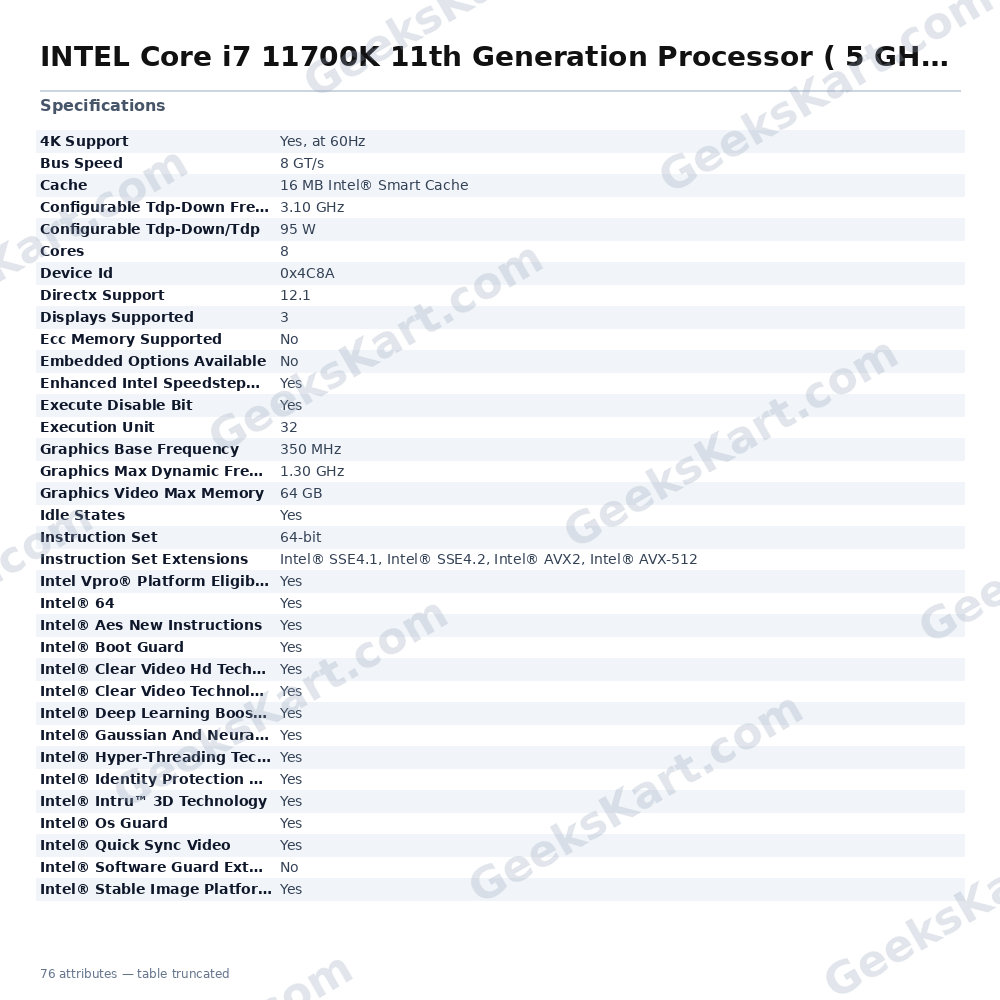

Specifications Of INTEL Core I7 11700K 11th Generation Processor
| Essentials | |
| Product Collection | 11th Generation Intel® Core™ i7 Processors |
| Product Code | BX8070811700K |
| Vertical Segment | Desktop |
| Processor Number | i7-11700K |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| Performance Specifications | |
| Cores | 8 |
| Threads | 16 |
| Processor Base Frequency | 3.60 GHz |
| Max Turbo Frequency | 5.00 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.00 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency | 4.90 GHz |
| TDP | 125 W |
| Configurable TDP-down Frequency | 3.10 GHz |
| Configurable TDP-down/tdp | 95 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max Memory Channels | 2 |
| Max Memory Bandwidth | 50.0 GB/s |
| ECC Memory Supported | No |
| Processor Graphics | |
| Processor Graphics | Intel® UHD Graphics 750 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Unit | 32 |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI) | 4096×2160@30Hz |
| Max Resolution (DP) | 5120×3200@60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 5120×3200@60Hz |
| DirectX Support | 12.1 |
| OpenGL Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| Displays Supported | 3 |
| Device ID | 0x4C8A |
| Open CL Support | 3 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations | Up to 1×16+1×4, 2×8+1×4, 1×8+3×4 |
| Max PCI Express Lanes | 20 |
| Package Specifications | |
| Socket Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019A |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel vPro® Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| ntel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
| Intel® Gaussian and Neural Accelerator 2.0 | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
