Features of INTEL Core I9 10920X 10th Generation X Series 10th Generation Processor
The Intel Core i9 processor with 12 cores, launched in October 2019. It is part of the Core i9 lineup, using the X-Series 10th Gen architecture with Socket 2066. Thanks to Intel Hyper-Threading the core-count is effectively doubled, to 24 threads. Core i9-10920X has 19.25 MB of L3 cache and operates at 3.5 GHz by default, but can boost up to 4.8 GHz, depending on the workload.
Intel is building the Core i9-10920X on a 14 nm production process, the transistor count is unknown. You may freely adjust the unlocked multiplier on Core i9-10920X, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 165 W, the Core i9-10920X is extremely power hungry, which means you need top-notch cooling. Intel’s processor supports DDR4 memory with a quad-channel interface. For communication with other components in the computer, Core i9-10920X uses a PCI-Express Gen 3 connection.
This intel Processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Core i9-10920X, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel has added support for the newer AVX2 and AVX-512 instructions, too.
- Up to 4. 8 GHz unlocked
- Discrete graphics required
- Compatible with Intel x299 Chipset based motherboards
- Supports Intel Optane Memory
- Cascade Lake, CLX, 10th, Generation, Desktop, CPU, Ci9, Core, 165W, i9-10920X, Enthusiast, Creator, Content Creation, LGA, 2066, 200 Series, X299, X299-Made to Create

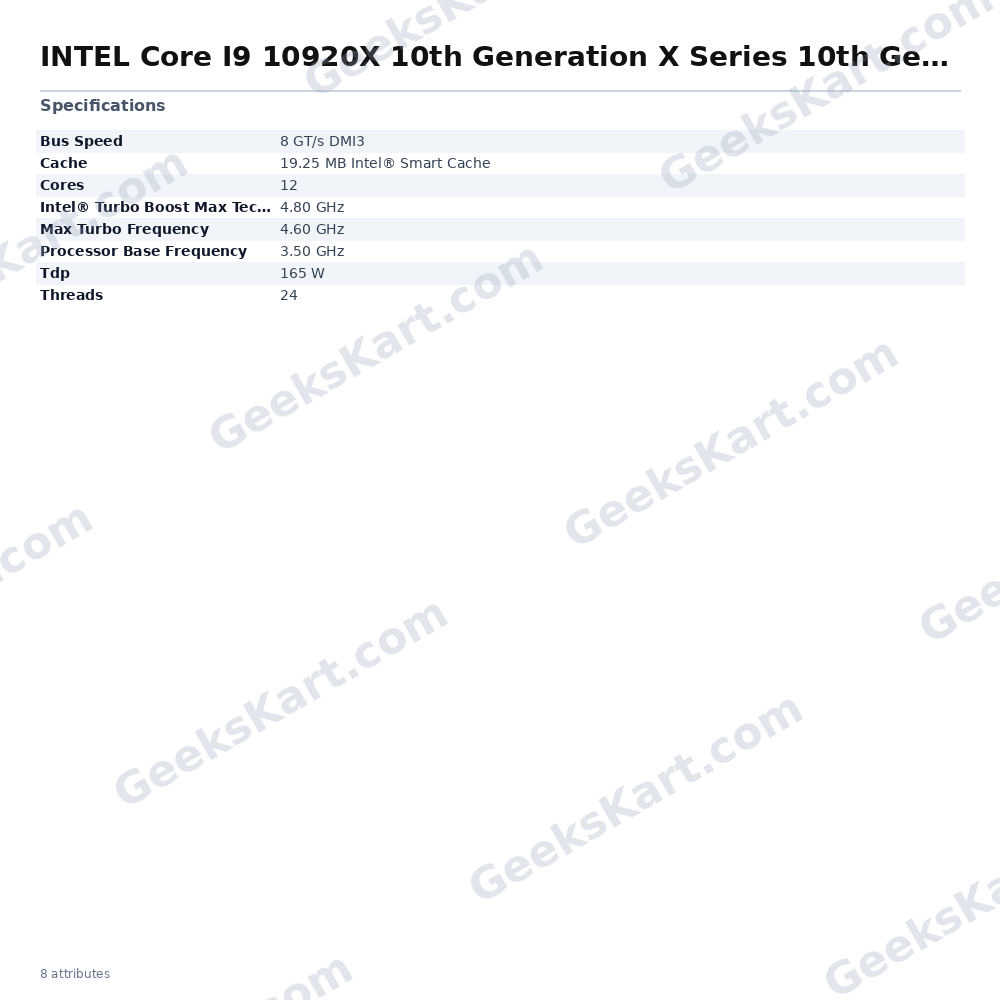

Specifications of INTEL Core I9 10920X 10th Generation X Series 10th Generation Processor
| # of Cores | 12 |
| # of Threads | 24 |
| Processor Base Frequency | 3.50 GHz |
| Max Turbo Frequency | 4.60 GHz |
| Cache | 19.25 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s DMI3 |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 4.80 GHz |
| TDP | 165 W |
