Features of INTEL Core i9 11900KF 11th Generation Processor
Built employing a 14nm process, this i9 11th generation desktop processor features a base clock frequency of three.5 GHz and a 5.2 GHz Turbo Boost Max 3.0 frequency with 16MB of cache with 8 cores, and 16 threads for fast performance.
Power up your productivity, gaming, and content creation experiences by installing the Intel Core i9-11900KF 3.5 GHz Eight-Core LGA 1200 Processor into your computing system.
The Intel i9-11900KF Processor also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to assist run and multitasking a variety of demanding applications and games using technologies such as built-in AI acceleration.
Performance is often further enhanced with overclocking and installing the Intel core Optane memory to cache frequently accessed data.
The i9-11900KF intel Processor doesn’t include integrated graphics, meaning users will have to purchase a separate dedicated graphics card. Please note that a thermal solution isn’t included. The processor is backed with a 3-year warranty.
Built for gamers trying to find maximum performance to play the latest games, while also having the capabilities to tackle other workloads. New 11th Gen Intel Core processor-based PCs make it all possible

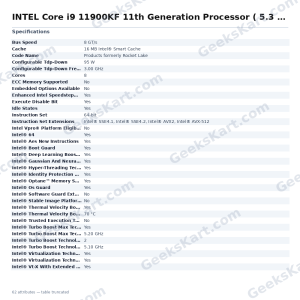

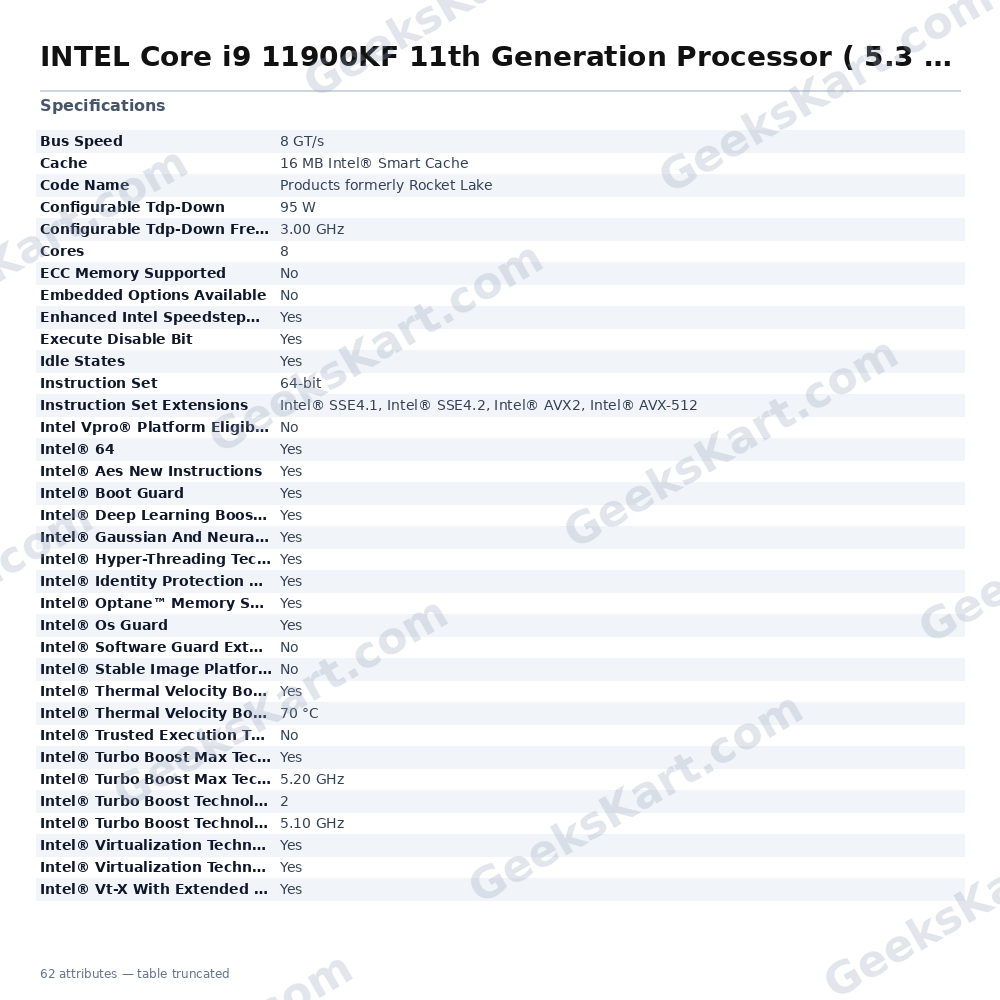

Specifications of INTEL Core i9 11900KF 11th Generation Processor
| Essentials | |
| Product Collection | 11th Generation Intel® Core™ i9 Processors |
| Code Name | Products formerly Rocket Lake |
| Vertical Segment | Desktop |
| Processor Number | i9-11900KF |
| Status | Launched |
| Launch Date | Q1’21 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| # of Cores | 8 |
| # of Threads | 16 |
| Processor Base Frequency | 3.50 GHz |
| Max Turbo Frequency | 5.30 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.20 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency | 5.10 GHz |
| TDP | 125 W |
| Configurable TDP-down Frequency | 3.00 GHz |
| Configurable TDP-down | 95 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported | No |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations | Up to 1×16+1×4, 2×8+1×4, 1×8+3×4 |
| Max # of PCI Express Lanes | 20 |
| Advanced Technologies | |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel vPro® Platform Eligibility | No |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Intel® Gaussian and Neural Accelerator 2.0 | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019A |
| Intel® Thermal Velocity Boost Temperature | 70 °C |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm/td> |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
