Genuine · Sealed
Processors

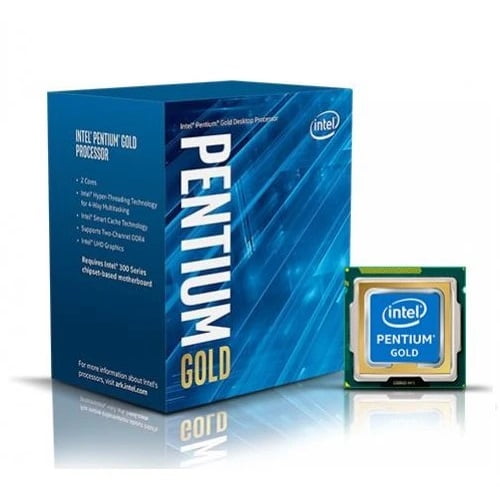

INTEL Pentium Gold 8th Generation G5420 Processor ( 3.8 GHz / 2 Cores / 4 Threads )
MPN INTEL-PENTIUM-GOLD-G5420 · Brand Intel
Features of INTEL Pentium Gold 8th Generation G5420 Processor Series - Pentium Gold CORES - 2 Cores THREADS - 4 Threads Socket - LGA1151 SPEED - 3.8 GHz CACHE - 4 MB MAX MEMORY SUPPORT - 64 GB INTEGRATED GRAPHICS - Intel UHD Graphics 610 INCLUDED CPU COOLER - Yes UNLOCKED - No TDP - 54W WARRANTY - 3 YEARS INTEL Pentium Gold 8th Generation G5420 Processor Specifications of INTEL Pentium Gold 8th Generation G5420 Processor Vertical Segment Desktop Processor Number G5420 Lithography 14 nm Cores 2 T
Intel® Hyper-Threading Technology Yes
Threads 4
Enhanced Intel Speedstep® Technology Yes
Warranty 3 Years
₹5,055.00
Inclusive of GST · GST invoice available
Out of stock
Warranty
3 Years
Dispatch
24–48 hrs
Returns
7-day
01
Overview
Features of INTEL Pentium Gold 8th Generation G5420 Processor
- Series - Pentium Gold
- CORES - 2 Cores
- THREADS - 4 Threads
- Socket - LGA1151
- SPEED - 3.8 GHz
- CACHE - 4 MB
- MAX MEMORY SUPPORT - 64 GB
- INTEGRATED GRAPHICS - Intel UHD Graphics 610
- INCLUDED CPU COOLER - Yes
- UNLOCKED - No
- TDP - 54W
- WARRANTY - 3 YEARS
INTEL Pentium Gold 8th Generation G5420 Processor

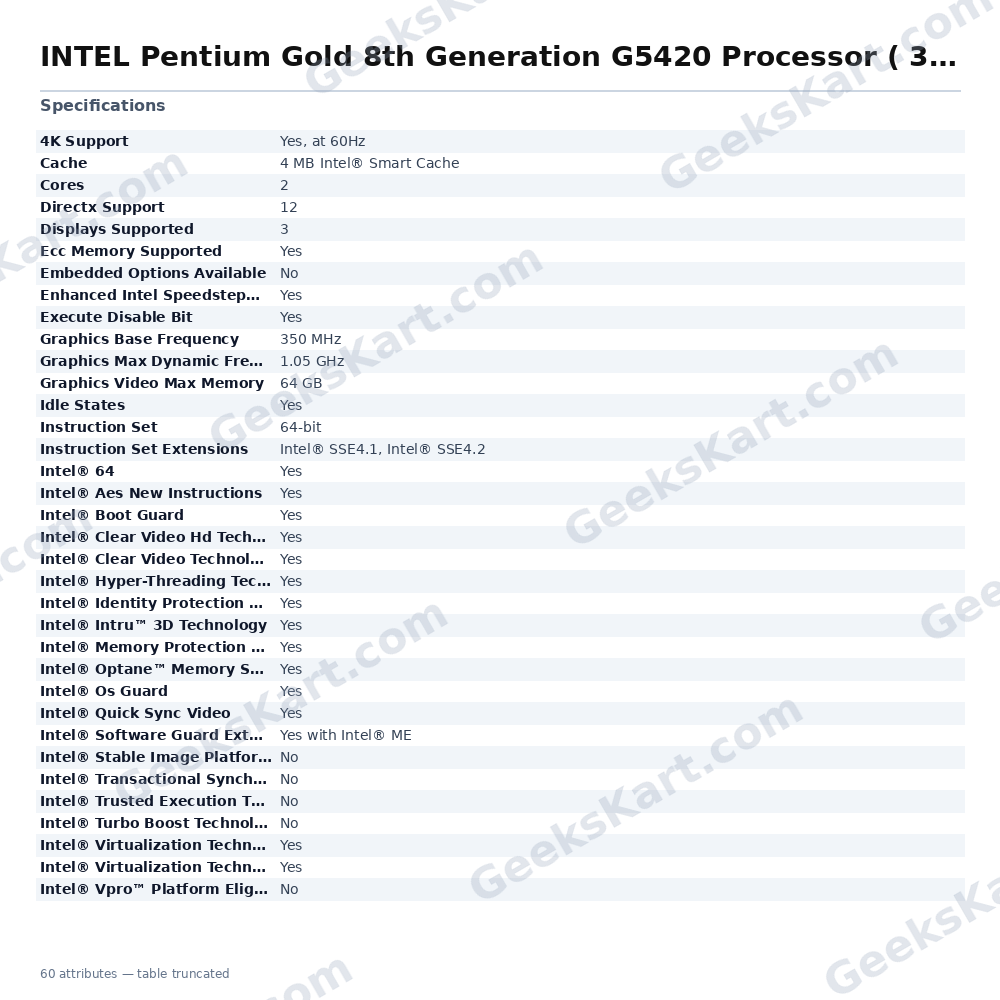

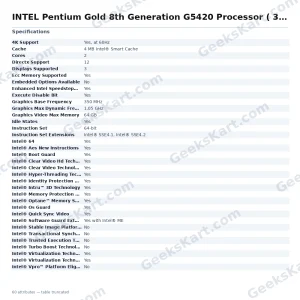

Specifications of INTEL Pentium Gold 8th Generation G5420 Processor
| Vertical Segment | Desktop |
| Processor Number | G5420 |
| Lithography | 14 nm |
| Cores | 2 |
| Threads | 4 |
| Processor Base Frequency | 3.80 GHz |
| Cache | 4 MB Intel® Smart Cache |
| TDP | 54 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-2400 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 37.5 GB/s |
| ECC Memory Supported | Yes |
| Processor Graphics | Intel® UHD Graphics 610 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.05 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096x2304@24Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| Displays Supported | 3 |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C (65W) |
| TJUNCTION | 100°C |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
02
Datasheet
| Tjunction | 100°C |
|---|---|
| 4K Support | Yes, at 60Hz |
| Intel® 64 | Yes |
| Secure Key | Yes |
| Idle States | Yes |
| Lithography | 14 nm |
| Scalability | 1S Only |
| Memory Types | DDR4-2400 |
| Opengl Support | 4.5 |
| Directx Support | 12 |
| Instruction Set | 64-bit |
| Intel® Os Guard | Yes |
| Processor Number | G5420 |
| Vertical Segment | Desktop |
| Sockets Supported | FCLGA1151 |
| Displays Supported | 3 |
| Intel® Boot Guard | Yes |
| Processor Graphics | Intel® UHD Graphics 610 |
| Execute Disable Bit | Yes |
| Ecc Memory Supported | Yes |
| Max Memory Bandwidth | 37.5 GB/s |
| Pci Express Revision | 3 |
| Max Cpu Configuration | 1 |
| Graphics Base Frequency | 350 MHz |
| Intel® Quick Sync Video | Yes |
| Max # Of Memory Channels | 2 |
| Processor Base Frequency | 3.80 GHz |
| Graphics Video Max Memory | 64 GB |
| Max Resolution (Hdmi 1.4) | 4096×2304@24Hz |
| Embedded Options Available | No |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2 |
| Max # Of Pci Express Lanes | 16 |
| Pci Express Configurations | Up to 1×16, 2×8, 1×8+2×4 |
| Intel® Aes New Instructions | Yes |
| Graphics Max Dynamic Frequency | 1.05 GHz |
| Intel® Clear Video Technology | Yes |
| Intel® Intru™ 3D Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Solution Specification | PCG 2015C (65W) |
| Thermal Monitoring Technologies | Yes |
| Intel® Clear Video Hd Technology | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Trusted Execution Technology | No |
| Intel® Vpro™ Platform Eligibility | No |
| Enhanced Intel Speedstep® Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Virtualization Technology (Vt-X) | Yes |
| Max Memory Size (Dependent On Memory Type) | 64 GB |
| Intel® Stable Image Platform Program (Sipp) | No |
| Intel® Vt-X With Extended Page Tables (Ept) | Yes |
| Intel® Software Guard Extensions (Intel® Sgx) | Yes with Intel® ME |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Memory Protection Extensions (Intel® Mpx) | Yes |
| Intel® Virtualization Technology For Directed I/O (Vt-D) | Yes |
| Warranty | 3 Years |
| Cores | 2 |
| Threads | 4 |
| TDP | 54 W |
| Cache | 4 MB Intel® Smart Cache |
