INWIN 103 ATX Mid Tower Cabinet (Black)
MPN W-103-Black · Brand InWin
Features of INWIN 103 ATX Mid Tower Cabinet (Black) Sharp Exterior Pinstripe Design The INWIN 103 produces gamer vibes with its pinstripe design and sharp exterior. It’s an opportunity to feel your own style and build a stunning rig. Address Your Lighting The InWin logo radiates with addressable RGB lighting effects. It’s controlled and synced with your motherboard software to customize your PC. Accelerated Tool-less Glass Design The 103’s tempered glass side panel can be easily removed by pulli
Inclusive of GST · GST invoice available
Overview
Features of INWIN 103 ATX Mid Tower Cabinet (Black)
Sharp Exterior Pinstripe Design
The INWIN 103 produces gamer vibes with its pinstripe design and sharp exterior. It’s an opportunity to feel your own style and build a stunning rig.
Address Your Lighting
The InWin logo radiates with addressable RGB lighting effects. It’s controlled and synced with your motherboard software to customize your PC.
Accelerated Tool-less Glass Design

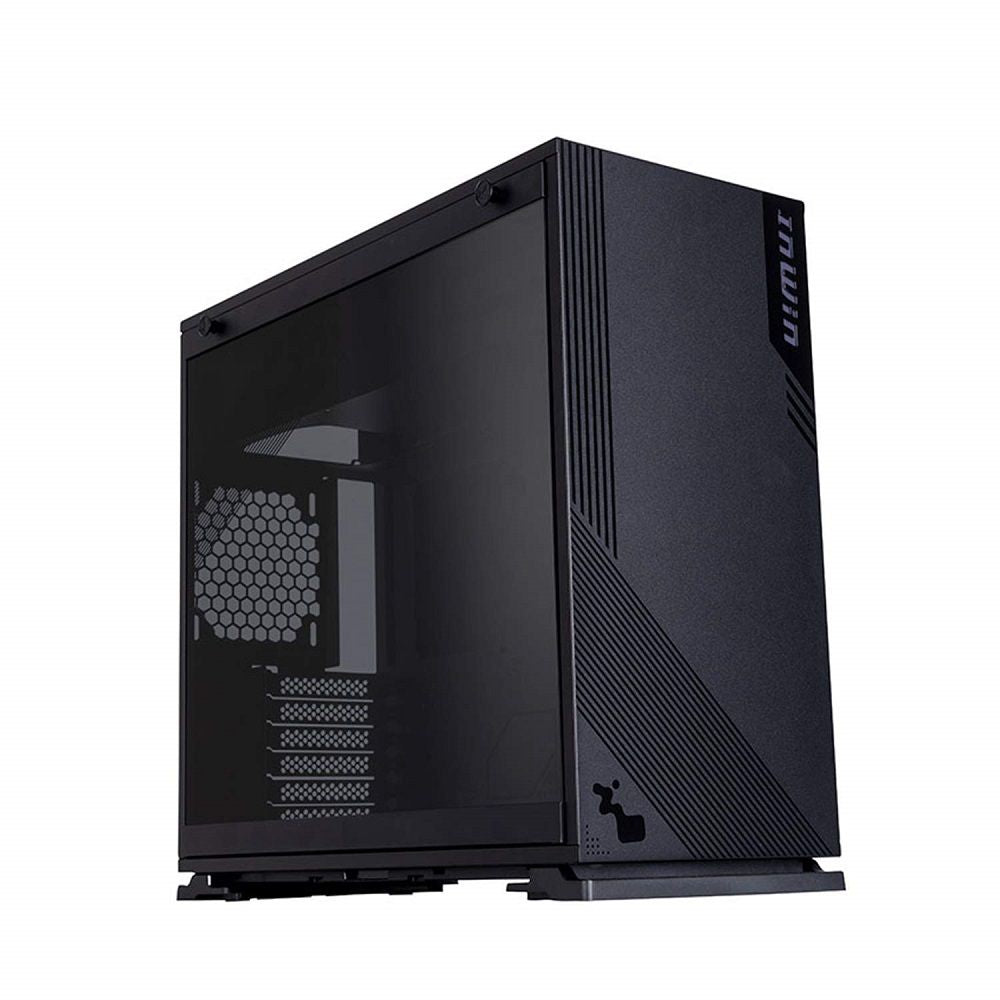

The 103’s tempered glass side panel can be easily removed by pulling the tabs and lifting up. The tinted glass with pinstripe design enhances your system’s visual appearance, and allows users to admire their builds inside and out.
Stay Cool!
The 103 supports up to 6 fans and can accommodate radiators at the rear, side and bottom. This extremely flexible interior structure allows the users to have optimal cooling performance.
It’s the Little Things that Matter
To provide the most user-friendly environment and the highest quality for our users, we’ve included the following:
Two 2.5” SSD mounts in the back of motherboard tray
Supports 3.5”/2.5” HDD trays
Extra graphics cards support holder
Quick removal dust filter
Tactical Thermal Treatment
The top PSU chamber makes the system cleaner and creates an ideal area for better airflow without interfering with the motherboard and graphics card.

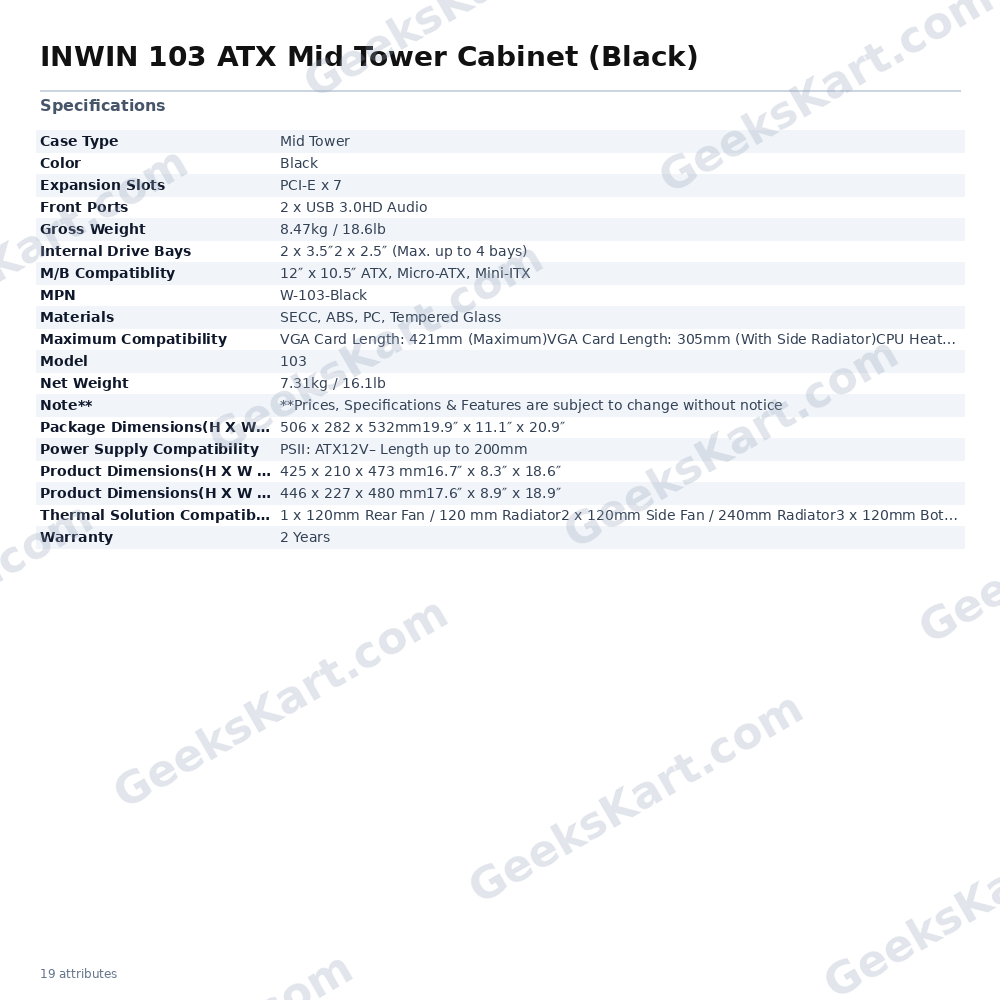

Specifications of INWIN 103 ATX Mid Tower Cabinet (Black)
| Model | 103 |
| Part Number | W-103-Black |
| Color | Black |
| Case Type | Mid Tower |
| Materials | SECC, ABS, PC, Tempered Glass |
| M/B Compatiblity | 12″ x 10.5″ ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | PCI-E x 7 |
| Maximum Compatibility | VGA Card Length: 421mm (Maximum) VGA Card Length: 305mm (With Side Radiator) CPU Heatsink Height: 160mm |
| Front Ports | 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 2 x 3.5″ 2 x 2.5″ (Max. up to 4 bays) |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan / 120 mm Radiator 2 x 120mm Side Fan / 240mm Radiator 3 x 120mm Bottom Fan / 360mm Radiator |
| Power Supply Compatibility | PSII: ATX12V – Length up to 200mm |
| Product Dimensions (H x W x D) |
425 x 210 x 473 mm 16.7″ x 8.3″ x 18.6″ |
| Product Dimensions (H x W x D) with screw & handle height |
446 x 227 x 480 mm 17.6″ x 8.9″ x 18.9″ |
| Package Dimensions (H x W x D) |
506 x 282 x 532mm 19.9″ x 11.1″ x 20.9″ |
| Net Weight | 7.31kg / 16.1lb |
| Gross Weight | 8.47kg / 18.6lb |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice. |
Datasheet
| Warranty | 2 Years |
|---|---|
| color | Black |
| Model | 103 |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Case Type | Mid Tower |
| Materials | SECC, ABS, PC, Tempered Glass |
| Net Weight | 7.31kg / 16.1lb |
| Front Ports | 2 x USB 3.0HD Audio |
| Gross Weight | 8.47kg / 18.6lb |
| Expansion Slots | PCI-E x 7 |
| M/B Compatiblity | 12″ x 10.5″ ATX, Micro-ATX, Mini-ITX |
| Internal Drive Bays | 2 x 3.5″2 x 2.5″ (Max. up to 4 bays) |
| Maximum Compatibility | VGA Card Length: 421mm (Maximum)VGA Card Length: 305mm (With Side Radiator)CPU Heatsink Height: 160mm |
| Power Supply Compatibility | PSII: ATX12V– Length up to 200mm |
| Package Dimensions(H X W X D) | 506 x 282 x 532mm19.9″ x 11.1″ x 20.9″ |
| Product Dimensions(H X W X D) | 425 x 210 x 473 mm16.7″ x 8.3″ x 18.6″ |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan / 120 mm Radiator2 x 120mm Side Fan / 240mm Radiator3 x 120mm Bottom Fan / 360mm Radiator |
| Product Dimensions(H X W X D)With Screw & Handle Height | 446 x 227 x 480 mm17.6″ x 8.9″ x 18.9″ |
