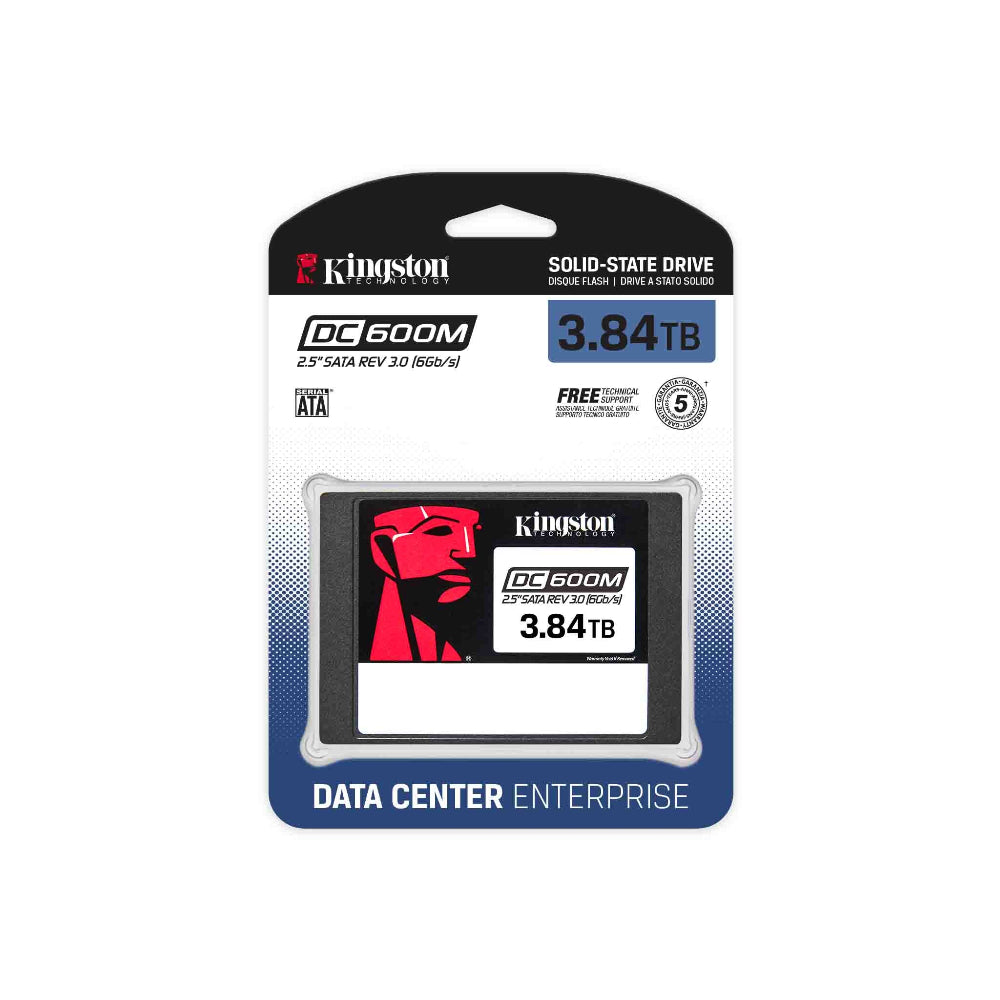

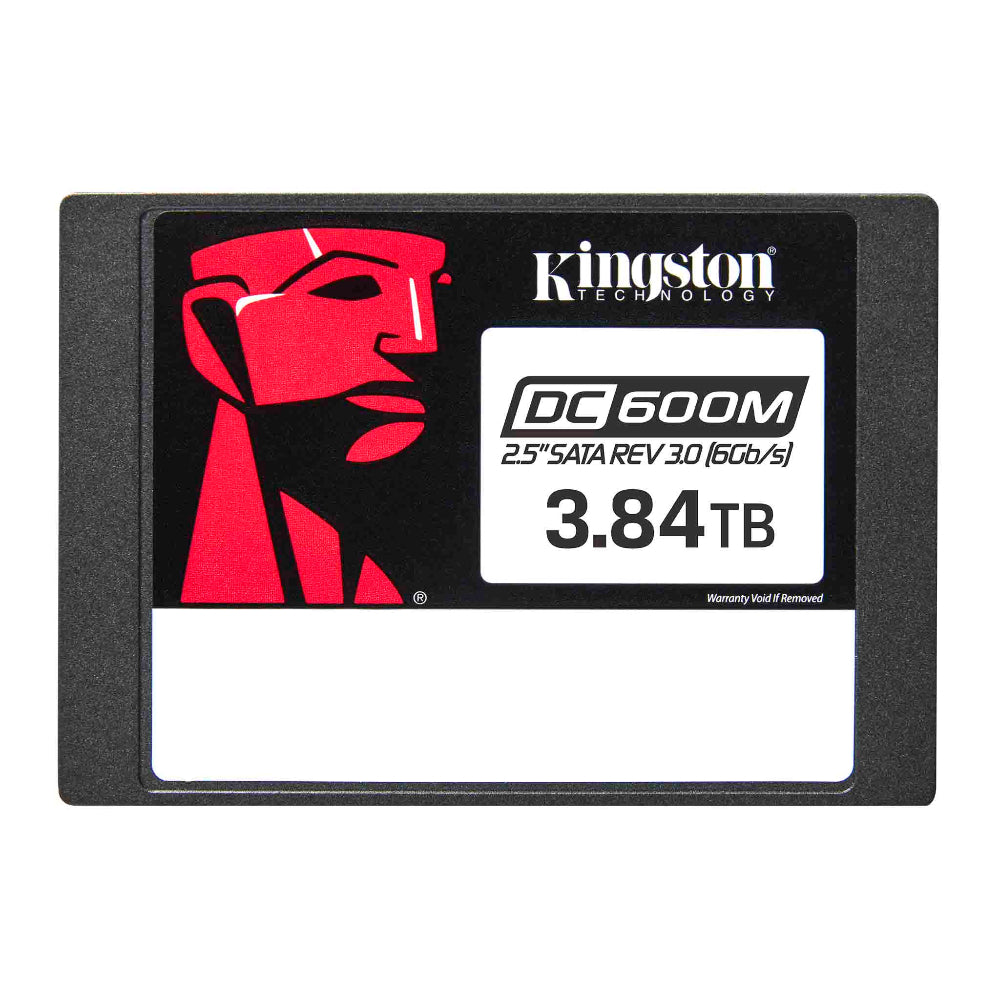

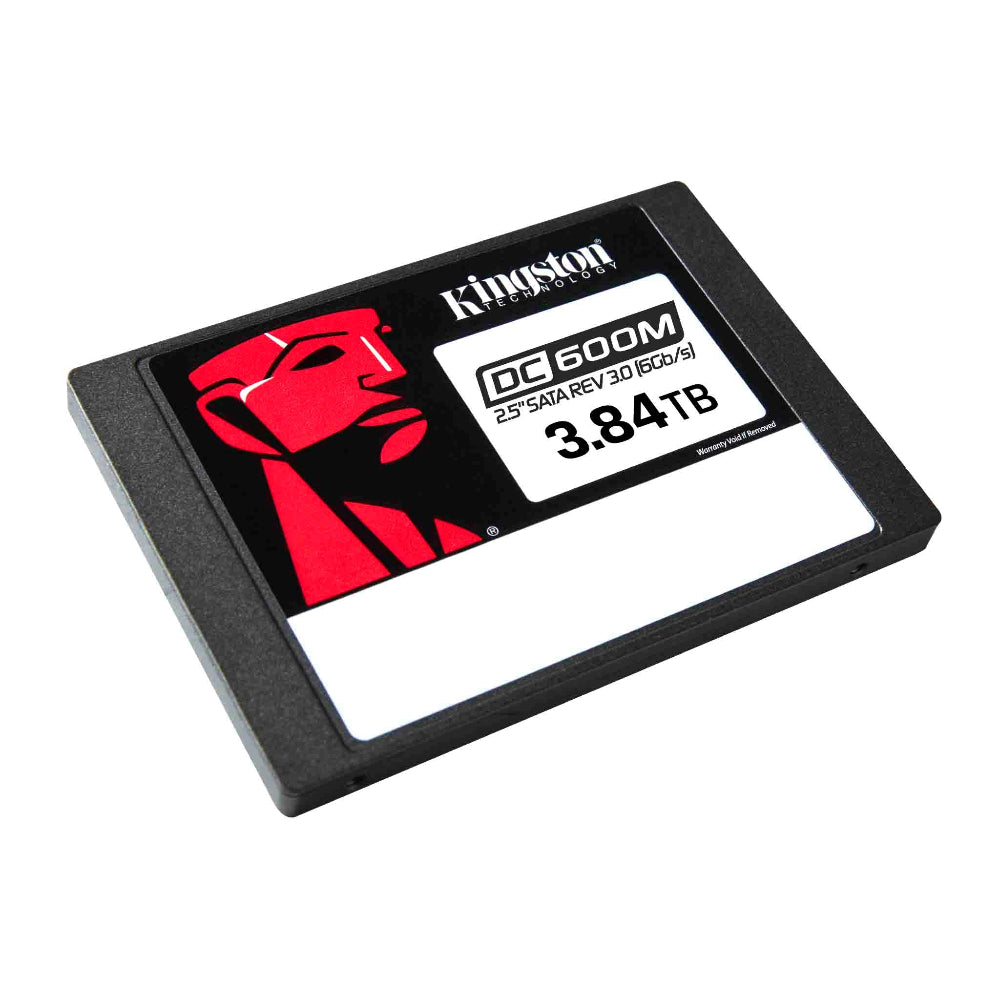

KINGSTON DC600M 3.84TB 2.5 SATA3 Internal Solid State Drive ( SSD )

The Kingston DC600M 3.84TB 2.5" SATA3 Internal SSD (model SEDC600M-3840G) is a fourth-generation enterprise-class drive built for mixed-use server and data-center workloads. Engineered with 3D TLC NAND and a DRAM cache, it delivers sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s over a SATA Rev. 3.0 (6Gb/s) interface — with backward compatibility to SATA Rev. 2.0 (3Gb/s) for flexible deployment in existing infrastructure. For random I/O-intensive workloads typical of databases, virtualisation hosts, and cloud service providers, the DC600M reaches up to 94,000 IOPS read and 59,000 IOPS write (steady-state 4K random). Quality-of-service latency at the 99.999th percentile is rated at 200 µs read / 300 µs write, while typical latency sits below 200 µs read and below 30 µs write — giving system integrators and hyperscale operators the consistency they need across varied workload demands. Data integrity under unexpected power events is addressed through board hardware-based power-loss protection via hold-up capacitors, ensuring in-flight data is committed and the drive reinitialises cleanly after power restoration. Static and dynamic wear levelling, enterprise SMART reporting (covering reliability tracking, usage statistics, life remaining, wear-level status, and temperature), and an Uncorrectable Bit Error Rate (UBER) of ≤10⁻¹⁷ round out the reliability feature set. At 3.84TB capacity, the drive is rated for 7,008 TBW endurance — equating to 1 drive write per day over five years or 1.66 DWPD over three years — making it suitable for sustained mixed-read/write enterprise environments. MTBF is rated at 2 million hours. The drive ships in a standard 2.5-inch, 7mm-high form factor (69.9 mm × 100 mm × 7 mm, 92.34 g), fitting standard SFF hot-swap bays. Operating temperature range is 0°C to 70°C; storage temperature range is −40°C to 85°C. Power draw is 1.30 W at idle, 1.45 W average, 1.6 W peak read, and 3.6 W peak write. Verified Specifications: • Model: SEDC600M-3840G • Form factor: 2.5-inch, 7mm • Interface: SATA Rev. 3.0 (6Gb/s), backward compatible with SATA Rev. 2.0 (3Gb/s) • Capacity: 3.84TB • NAND: 3D TLC • DRAM Cache: Yes • Sequential Read/Write: 560 MB/s / 530 MB/s • Steady-state 4K Random Read/Write: 94,000 / 59,000 IOPS • QoS Latency (99.999%): 200 µs read / 300 µs write • Typical Latency: <200 µs read / <30 µs write • Endurance: 7,008 TBW (1 DWPD / 5 yr; 1.66 DWPD / 3 yr) • MTBF: 2,000,000 hours • UBER: ≤10⁻¹⁷ • Power: Idle 1.30 W | Avg 1.45 W | Max Read 1.6 W | Max Write 3.6 W • Operating Temperature: 0°C – 70°C • Storage Temperature: −40°C – 85°C • Dimensions: 69.9 mm × 100 mm × 7 mm | Weight: 92.34 g • Vibration (operating): 2.17G peak (7–800 Hz) • Vibration (non-operating): 20G peak (10–2000 Hz) • Warranty: Limited 5-year with free technical support
