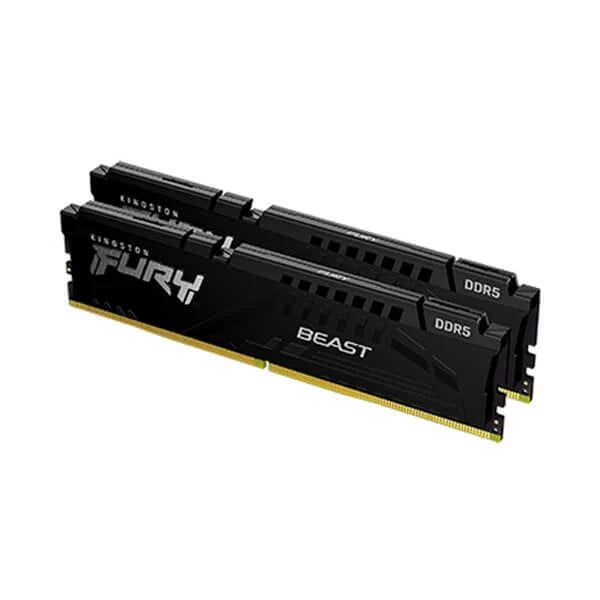

KINGSTON Fury 32GB ( 16GB x 2 ) 5200MHz DDR5 RAM
MPN KINGSTON-FURY-BEAST-32GB-5200 · Brand kingst
Features of KINGSTON Fury Beast 32GB (16GBx2) 5200MHz DDR5 RAM Kingston Ram is a kit of two 2G x 64-bit (16GB) DDR5-5200 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5200 at 1.25V. The SPDs are programmed to JEDEC standard latency ddr5 ram at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JE
Inclusive of GST · GST invoice available
Overview
Features of KINGSTON Fury Beast 32GB (16GBx2) 5200MHz DDR5 RAM
Kingston Ram is a kit of two 2G x 64-bit (16GB) DDR5-5200 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5200 at 1.25V. The SPDs are programmed to JEDEC standard latency ddr5 ram at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37” (34.9mm), w/heatsink

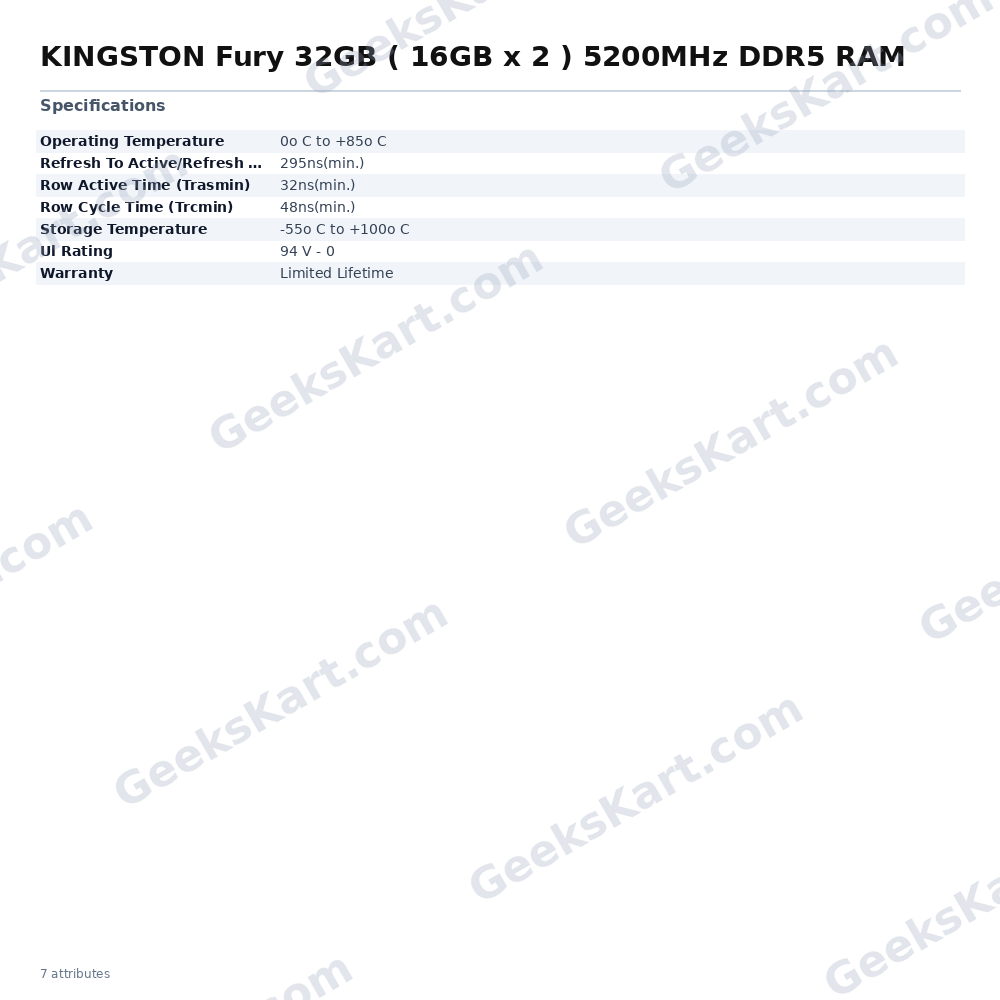

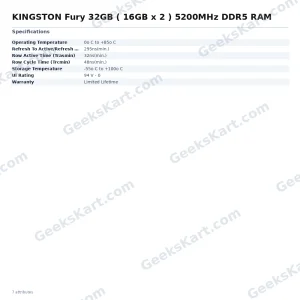

Specifications of KINGSTON Fury 32GB ( 16GB x 2 ) 5200MHz DDR5 RAM
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0o C to +85o C |
| Storage Temperature | -55o C to +100o C |
| Warranty | Limited Lifetime |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
Datasheet
| Ul Rating | 94 V – 0 |
|---|---|
| Storage Temperature | -55o C to +100o C |
| Operating Temperature | 0o C to +85o C |
| Row Cycle Time (Trcmin) | 48ns(min.) |
| Row Active Time (Trasmin) | 32ns(min.) |
| Refresh To Active/Refresh Command Time (Trfcmin) | 295ns(min.) |
| Warranty | Lifetime |
