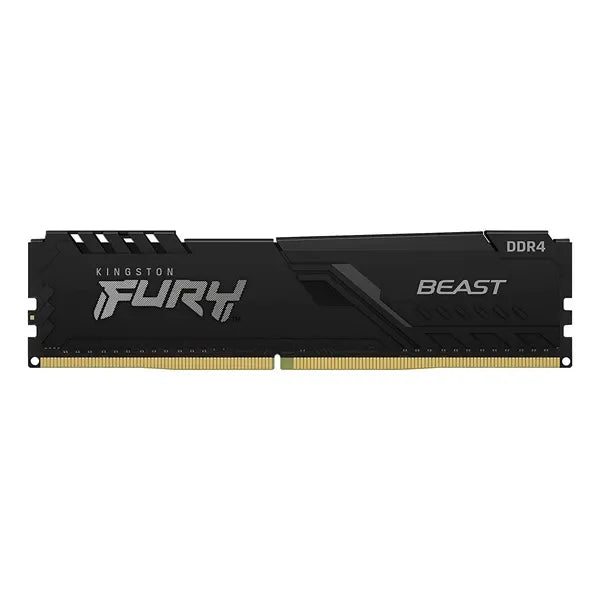

KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 )
MPN KINGSTON-FURY-BEAST-16GB-3200MHZ · Brand kingst · UDIMM
Features of KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 ) Kingston Ram KF432C16BB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 a
Inclusive of GST · GST invoice available
Overview
Features of KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 )
Kingston Ram KF432C16BB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch the-fly BL8 or BC4(Burst Chop)
- Height 1.34” (34mm), w/heatsink
- Cost-efficient, high-performance DDR4 upgrade
- Speed of 3200MHz and kit capacity of 16gb ram
- Intel XMP-ready and XMP Certified
- Ready for AMD Ryzen
- Low-profile heat spreader design
- Plug N Play functionality at 2666MHz ddr4 ram
Specifications of KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 )
| FORM FACTOR | UDIMM |
| XMP READY | Yes |
| PLUG N PLAY | Yes |
| SPEED | 3200MHz |
| LATENCY | CL16 |
| VOLTAGE | 1.35V |
| MODULE CAPACITY | 16GB (16GBx1) |
| DUAL MODULE | Yes |
| COLOR | Black |
| OPERATING TEMPERATURE | 0°C to 85°C |
| HEIGHT | 34.1mm |
| WARRANTY | Limited Lifetime |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Speed | 3200MHz |
|---|---|
| Height | 34.1mm |
| Xmp Ready | Yes |
| Dual Module | Yes |
| Plug N Play | Yes |
| Operating Temperature | 0°C to 85°C |
| Warranty | Lifetime |
| Capacity | 16GB |
| Form Factor | UDIMM |
| color | Black |
| Timing | CL16 |
| Voltage | 1.35V |
