Kingston Fury Beast 16GB 5600MHz CL40 DDR5 RAM

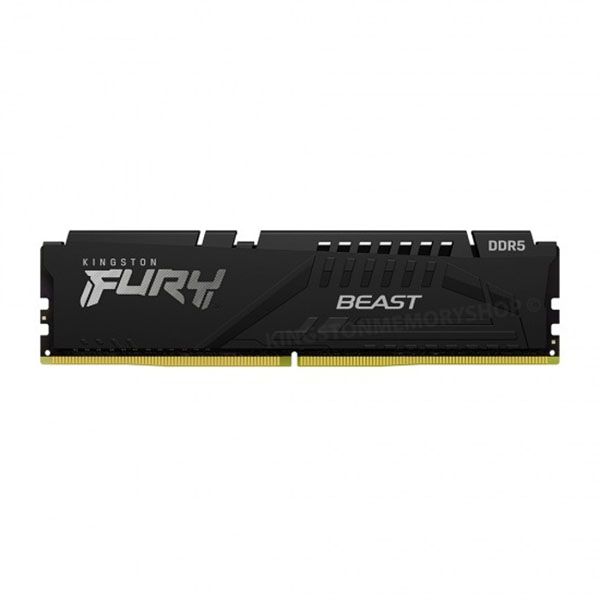

The Kingston Fury Beast 16GB DDR5-5600 (model KF556C40BB-16) is a single 288-pin UDIMM designed for DDR5-capable desktop platforms. It is built on an eight-chip configuration using eight 2Gb × 8-bit FBGA components arranged in a 2Gb × 64-bit (16GB) 1Rx8 topology, delivering a total usable capacity of 16GB per module. At its XMP 3.0 profile, the module runs at DDR5-5600 with primary timings of CL40-40-40 and a tested voltage of 1.25V. When operating under JEDEC defaults, the module falls back to DDR5-4800 at 40-39-39 timings and 1.1V, ensuring broad out-of-the-box compatibility with platforms that do not support XMP. The module carries a UL 94 V-0 flammability rating on its PCB. Die ECC (error-correcting code) is integrated at the silicon level, a standard feature of the DDR5 specification, helping to maintain data integrity under load without requiring platform-level ECC support. The module operates across a temperature range of 0°C to 85°C and is rated for storage between -55°C and 100°C. The low-profile black heatspreader keeps the installed height at 34.9mm (1.37 inches), making it compatible with most tower and mid-tower chassis with standard CPU cooler clearances. Gold contact fingers on the 288-pin edge connector help ensure reliable, corrosion-resistant seating in the DIMM slot. Kingston covers this module under a Limited Lifetime Warranty. It ships as a single-module (16GB × 1) kit and carries GTIN 740617325713. Verified Specifications: - Part Number: KF556C40BB-16 - Capacity: 16GB (2Gb × 64-bit, 1Rx8) - Memory Type: DDR5 SDRAM - Form Factor: 288-pin UDIMM - XMP Speed: DDR5-5600 (5600MT/s) - XMP Timings: CL40-40-40 - XMP Voltage: 1.25V - JEDEC Speed: DDR5-4800 - JEDEC Timings: CL40-39-39 - JEDEC Voltage: 1.1V (VDD/VDDQ); VPP: 1.8V - Profile Support: Intel XMP 3.0 - Heatspreader Height: 34.9mm (1.37") - Color: Black - Operating Temperature: 0°C to 85°C - GTIN: 740617325713 - Warranty: Limited Lifetime
