KINGSTON Fury Beast 32GB ( 32GBx1 ) 5200MHz DDR5 RAM ( CL40 )
MPN KINGSTON-FURY-BEAST-32GB · Brand kingst
Features of KINGSTON Fury Beast 32GB ( 32GBx1 ) 5200MHz DDR5 RAM ( CL40 ) Fury Beast Desktop Ram has a capacity of 32gb ram with Speed 5200MHz and Memory ddr5 ram. The Die ECC feature helps to maintain data integrity and can rectify bit errors within the DRAM chip. Tested to run at DDR5 -5200 at low latency timing. Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typica VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V Die ECC Height 1.37” (34.9mm), w/heatsink Kingston FURY 32GB 64Bit Kingston Ram a 4G
Inclusive of GST · GST invoice available
Overview
Features of KINGSTON Fury Beast 32GB ( 32GBx1 ) 5200MHz DDR5 RAM ( CL40 )
Fury Beast Desktop Ram has a capacity of 32gb ram with Speed 5200MHz and Memory ddr5 ram. The Die ECC feature helps to maintain data integrity and can rectify bit errors within the DRAM chip. Tested to run at DDR5 -5200 at low latency timing.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typica
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37” (34.9mm), w/heatsink
Kingston FURY 32GB 64Bit
Kingston Ram a 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module.
The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

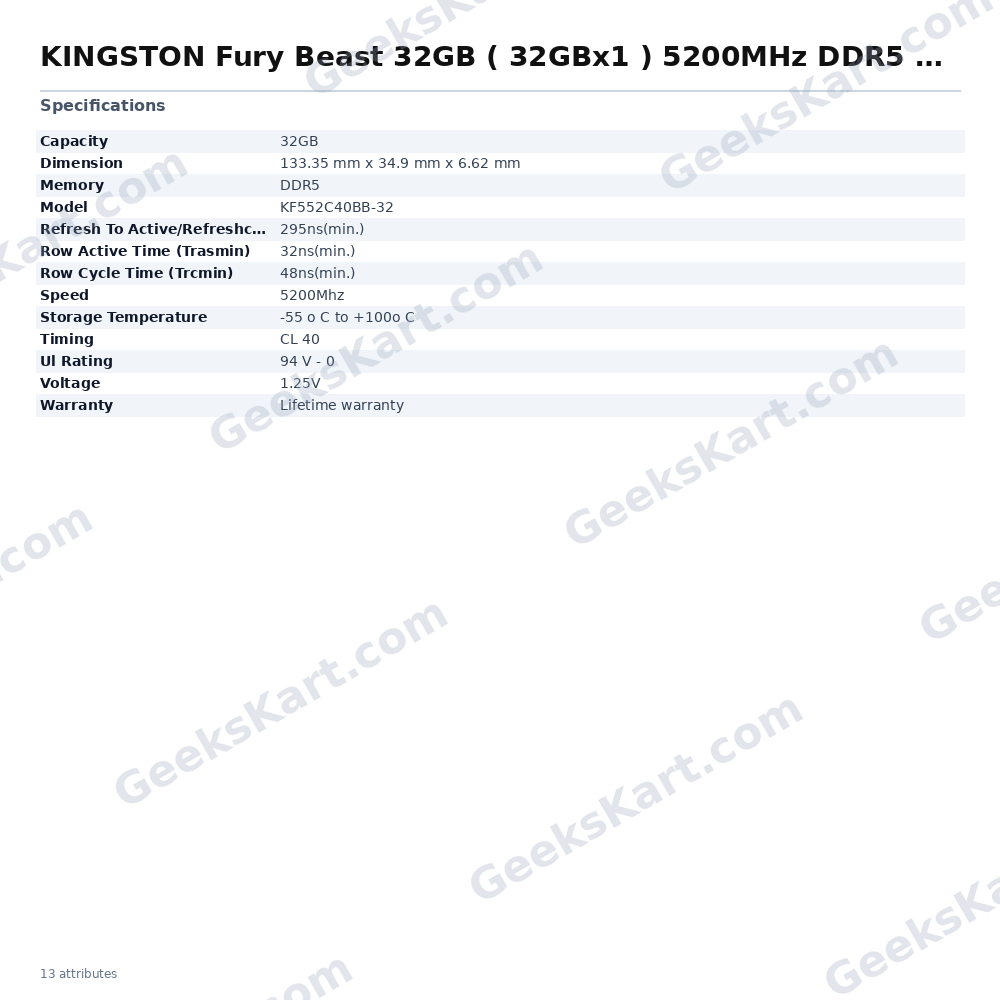

Specification of KINGSTON Fury Beast 32GB ( 32GBx1 ) 5200MHz DDR5 RAM ( CL40 )
| Model: | KF552C40BB-32 |
| Capacity: | 32GB |
| Memory: | DDR5 |
| Latency: | CL 40 |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Speed: | 5200Mhz |
| Voltage: | 1.25V |
| Refresh to Active/Refresh Command Time (tRFCmin) |
295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating: | 94 V - 0 |
| Storage Temperature: | -55 o C to +100o C |
| Dimension: | 133.35 mm x 34.9 mm x 6.62 mm |
| Warranty: | Lifetime warranty |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Model | KF552C40BB-32 |
|---|---|
| Speed | 5200Mhz |
| Memory | DDR5 |
| Dimension | 133.35 mm x 34.9 mm x 6.62 mm |
| Ul Rating | 94 V – 0 |
| Storage Temperature | -55 o C to +100o C |
| Row Cycle Time (Trcmin) | 48ns(min.) |
| Row Active Time (Trasmin) | 32ns(min.) |
| Refresh To Active/Refreshcommand Time (Trfcmin) | 295ns(min.) |
| Warranty | Lifetime |
| Capacity | 32GB |
| Timing | CL 40 |
| Voltage | 1.25v |
