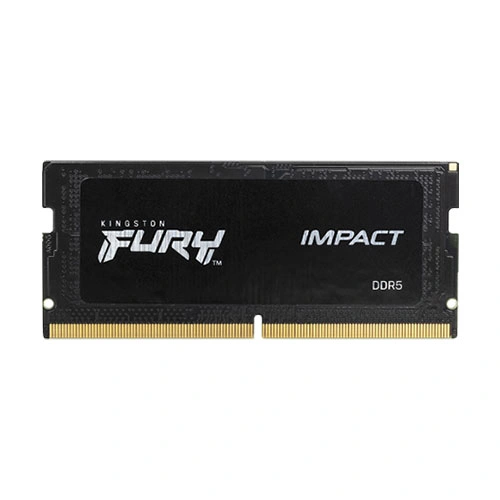

Kingston Fury Impact 16GB 5600MHz CL40 DDR5 Laptop RAM
MPN KF556S40IB-16 · Brand KINGST
Features: 16GB 2G x 64-Bit DDR5-5600 CL40 262-Pin SODIMM Kingston FURY KF556S40IB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. Power Supply: VDD = 1.1V Typical VDDQ = 1
Inclusive of GST · GST invoice available
Overview
Features: 16GB 2G x 64-Bit DDR5-5600 CL40 262-Pin SODIMM Kingston FURY KF556S40IB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V Die ECC Height 1.18” (30mm) DEFAULT SPECIFICATIONS CL(IDD): 40 cycles Row Cycle Time (tRCmin): 48ns(min) Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min) Row Active Time (tRASmin): 28.56ns(min) UL Rating: 94 V - 0 Operating Temperature: 0o C to +85o C Storage Temperature: -55o C to +100o C

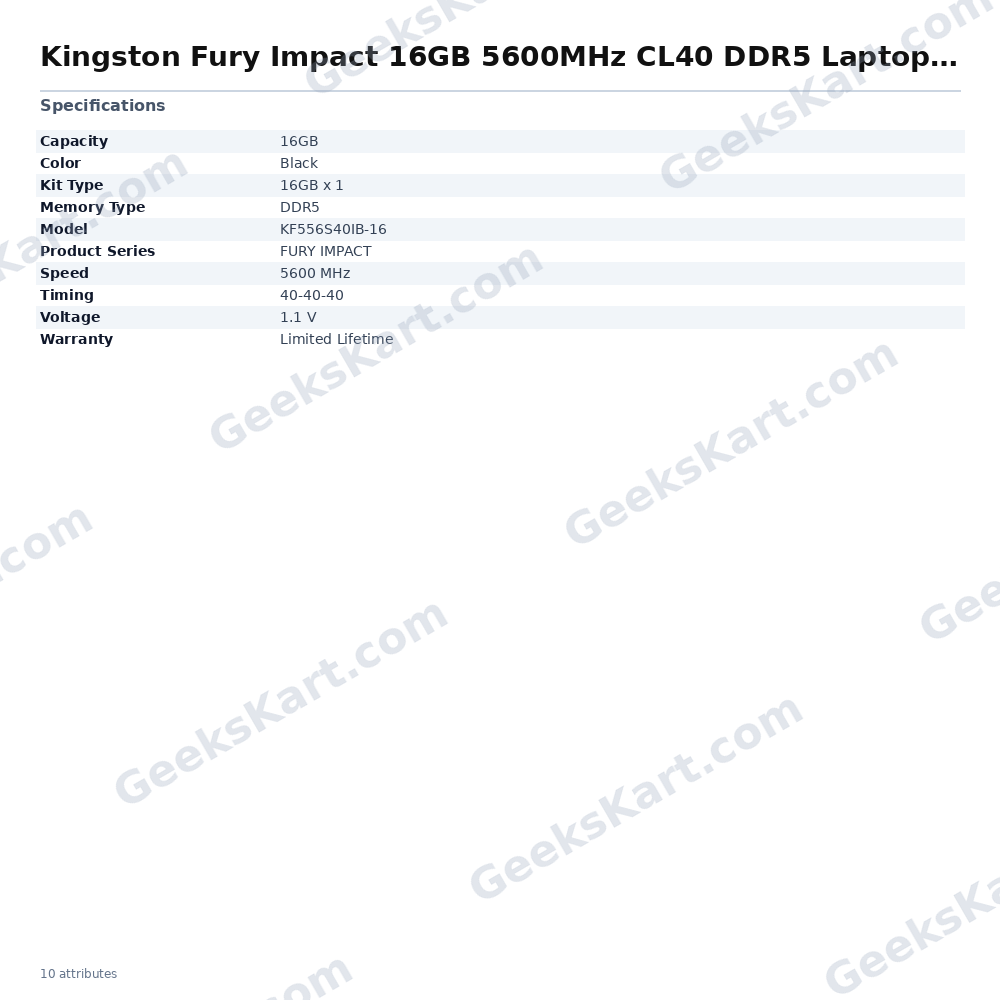

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | Lifetime |
| Capacity | 16GB |
| color | Black |
| Kit Type | 16GB x 1 |
| Timing | 40-40-40 |
| Voltage | 1.1 V |
| Model | KF556S40IB-16 |
| Speed | 5600 MHz |
| Product Series | FURY IMPACT |
