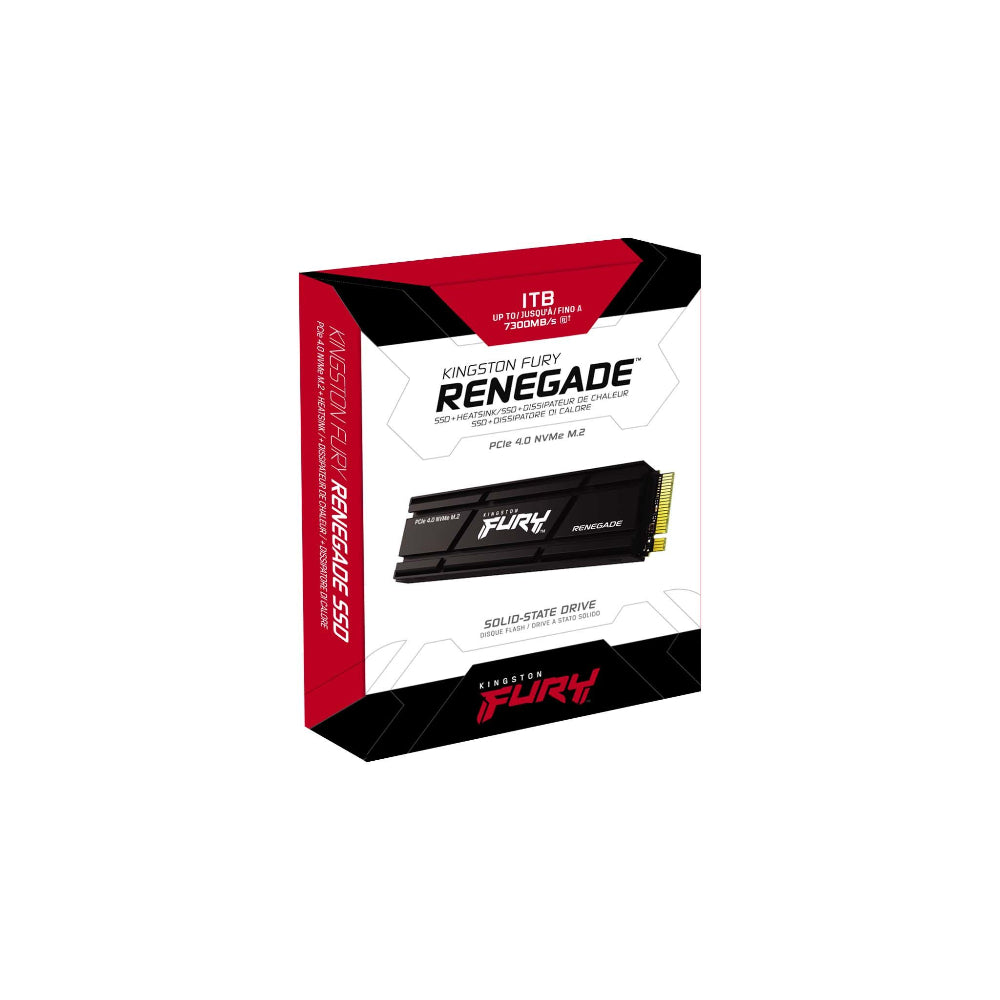

KINGSTON FURY Renegade 2TB M.2 NVME Gen4 Solid State Drive ( SSD )
MPN KINGSTON-FURY-RENEGDE-2TB-NVME-GEN4-WITH-HEATSINK · Brand kingston · M.2 2280
The Kingston FURY Renegade 2TB NVMe Gen4 SSD with Heatsink features the Phison E18 controller and 3D TLC NAND, delivering up to 7,300/7,000MB/s sequential read/write speeds and up to 1,000,000 IOPS — backed by a 2.0PBW endurance rating and 5-year limited warranty
Inclusive of GST · GST invoice available
Overview
The Kingston FURY Renegade 2TB M.2 NVMe PCIe Gen4 SSD (With Heatsink) is a high-performance internal solid state drive engineered for gaming enthusiasts, content creators, and PC builders who demand the maximum throughput that the PCIe 4.0 platform can deliver. Powered by the Phison E18 controller and 3D TLC NAND flash memory, this drive achieves sequential read speeds of up to 7,300MB/s and sequential write speeds of up to 7,000MB/s — among the highest available in the M.2 2280 form factor as of this generation. Random 4K read and write performance reaches up to 1,000,000 IOPS each, ensuring rapid response during game loading, application launches, and large file transfers. The heatsink variant includes an integrated aluminium heatsink over the standard low-profile graphene aluminium heat spreader, providing an additional layer of thermal dispersion during sustained workloads. This makes it compatible with PS5 console expansion storage slots, where managing drive temperature is essential for consistent peak performance. The slim M.2 2280 standard footprint ensures broad compatibility across gaming desktops, high-performance laptops, and current-generation motherboards with PCIe 4.0 x4 slots. Durability and reliability are addressed through a rated MTBF of 2,000,000 hours and a Total Bytes Written (TBW) endurance rating of 2.0 petabytes (2.0PBW), making the drive suitable for intensive daily workloads over a prolonged lifespan. Kingston backs this drive with a limited 5-year warranty and free technical support. Verified Specifications: - Model: SFYRDK/2000G - Form Factor: M.2 2280 - Interface: PCIe 4.0 x4 NVMe - Capacity: 2TB - Controller: Phison E18 - NAND: 3D TLC - Sequential Read/Write: 7,300 / 7,000 MB/s - Random 4K Read/Write: up to 1,000,000 / 1,000,000 IOPS - TBW: 2.0PBW - MTBF: 2,000,000 hours - Power Consumption: 5mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write - Operating Temperature: 0°C to 70°C - Storage Temperature: -40°C to 85°C - Dimensions (with heatsink): 80mm x 23.67mm x 10.5mm - Weight: 9.7g - Vibration Operating: 2.17G peak (7–800Hz) - Vibration Non-Operating: 20G peak (20–1000Hz) - Warranty: Limited 5-year warranty with free technical support
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Power Consumption | 5mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write |
| Mtbf | 2,000,000 hours |
| Nand | 3D TLC |
| Model | SFYRDK/2000G |
| Weight | 9.7g |
| Capacities | 2TB |
| Controller | Phison E18 |
| Dimensions | 80mm x 23.67mm x 10.5mm |
| Storage Temperature | -40°C~85°C |
| Vibration Operating | 2.17G peak (7-800Hz) |
| Random 4K Read/Write | up to 1,000,000/1,000,000 IOPS |
| Sequential Read/Write | 7,300/7,000MB/s |
| Vibration Non-Operating | 20G peak (20-1000Hz) |
| Total Bytes Written (Tbw) | 2.0PBW |
| Operatingtempetemperaturerature | 0°C~70°C |
