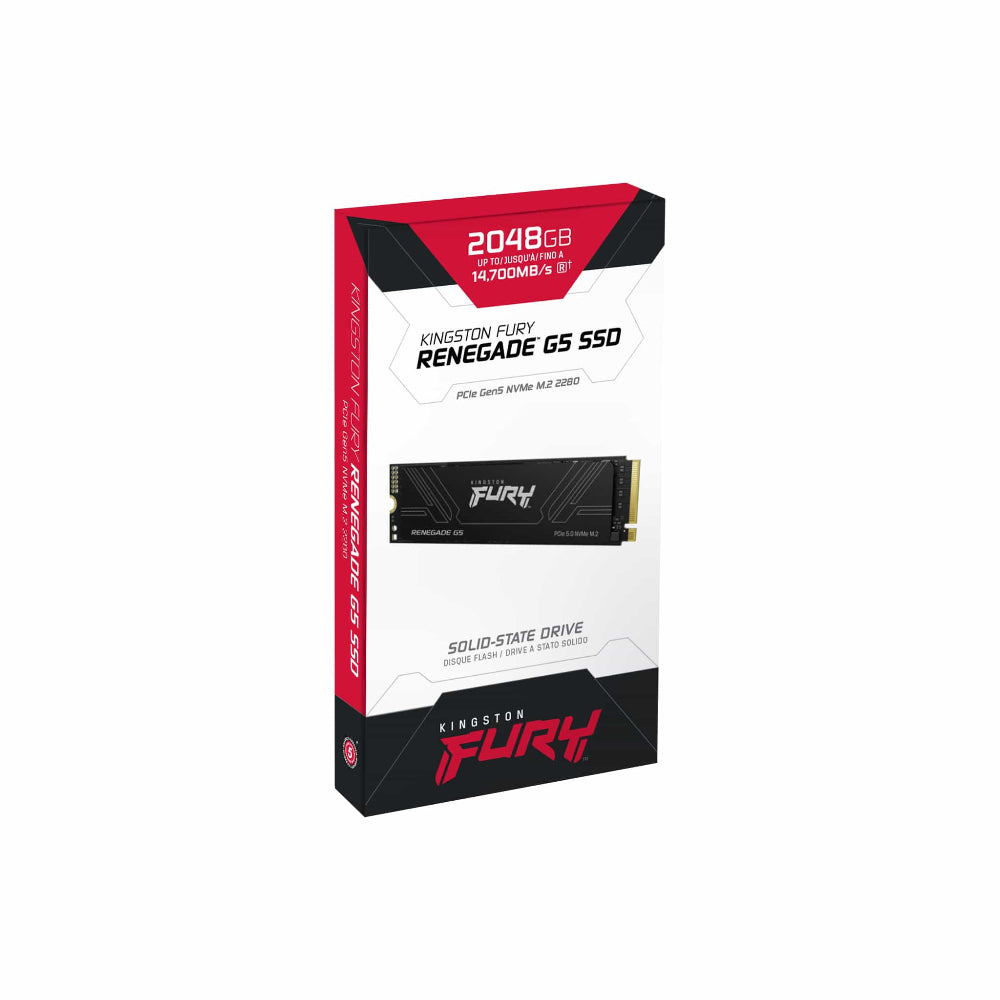

KINGSTON Fury Renegade G5 2TB M.2 NVME Gen5 Solid State Drive ( SSD )

The Kingston FURY Renegade G5 is a PCIe 5.0 x4 NVMe M.2 2280 solid state drive engineered for enthusiast gaming PCs, high-performance workstations, and content creation workflows that demand maximum throughput. Built on the Silicon Motion SM2508 controller — fabricated on a 6 nm process node — the drive pairs a low-power DDR4 DRAM cache with 3D TLC NAND to deliver sequential read and write speeds of up to 14,700 MB/s and 14,000 MB/s respectively on the 2 TB (2048 GB) capacity. Random 4K performance across the 2 TB and 4 TB variants reaches up to 2,200,000 IOPS both read and write, making the drive responsive under demanding mixed workloads. A 12-layer PCB design improves signal integrity and data stability under sustained loads, while the advanced thermal architecture helps maintain consistent performance during extended gaming sessions or large file transfers. The drive supports Microsoft DirectStorage, enabling compatible titles to stream game assets directly from NVMe storage to the GPU, reducing CPU overhead and shortening texture load times. With a rated endurance of 2.0 PB (total bytes written) for the 2 TB model and a mean time between failures (MTBF) of 2,000,000 hours, the FURY Renegade G5 is built for long-term reliability. Power draw is lean: 0.27 W average and up to 7.0 W under peak load, keeping thermals manageable in compact chassis. The drive stores safely between -40 °C and 85 °C and operates between 0 °C and 70 °C. Verified Specifications (Model SFYR2S-2T0): - Form Factor: M.2 2280 - Interface: PCIe 5.0 x4 NVMe - Capacity: 2048 GB (2 TB) - Controller: Silicon Motion SM2508 - NAND: 3D TLC - DRAM Cache: Yes (DDR4) - Sequential Read / Write: up to 14,700 / 14,000 MB/s - Random 4K Read / Write: up to 2,200,000 / 2,200,000 IOPS - Endurance (TBW): 2.0 PB - MTBF: 2,000,000 hours - Power (avg / max): 0.27 W / 7.0 W - Operating Temperature: 0 °C – 70 °C - Storage Temperature: -40 °C – 85 °C - Dimensions: 80 mm × 22 mm × 2.3 mm - Weight: 7.7 g - Vibration (non-operating): 20 G peak (20–1,000 Hz) - DirectStorage: Supported - Warranty: Limited 5-year with free technical support
