Kingston Server Premier 32GB 3200MHz CL22 DDR4 ECC RAM

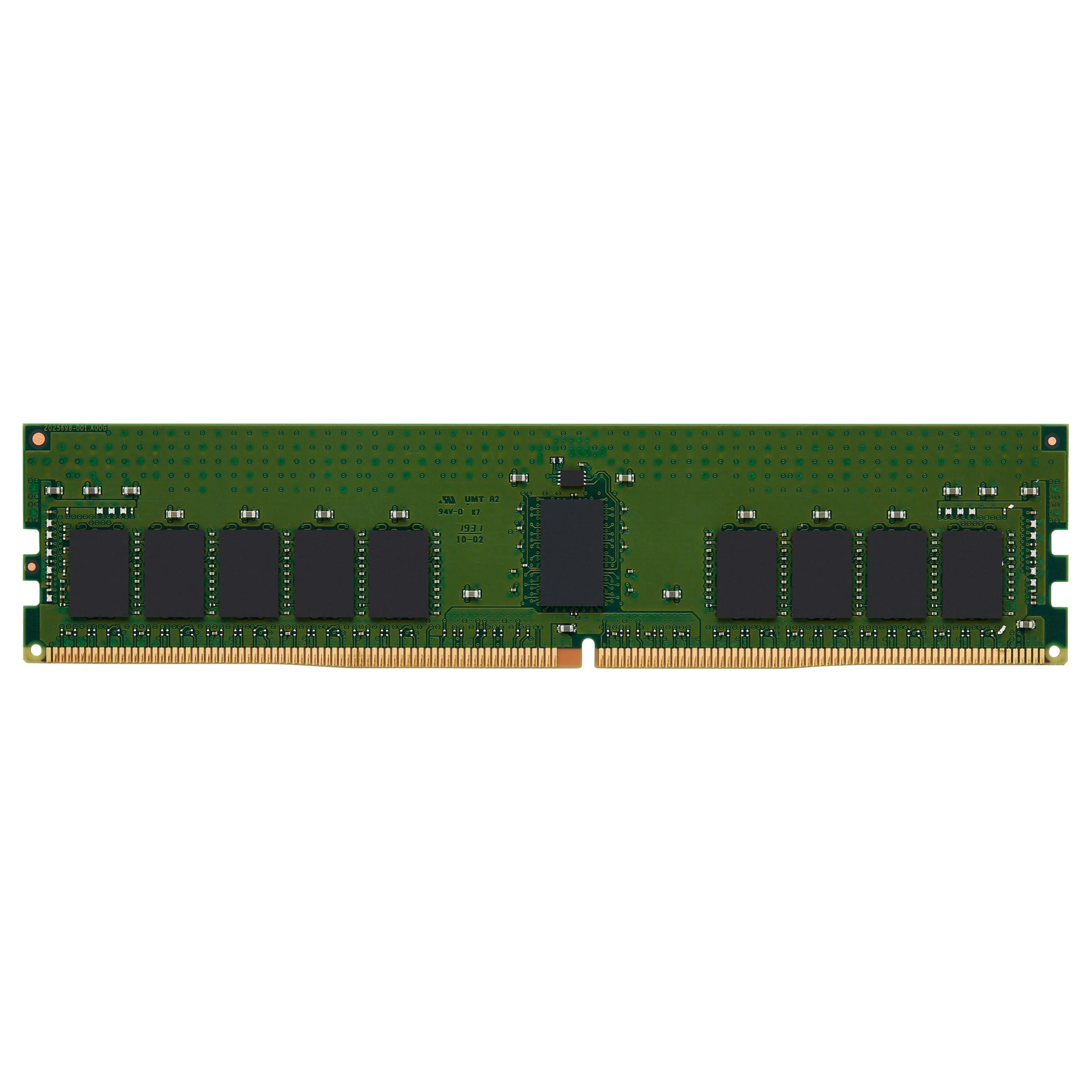

The Kingston Server Premier KSM32RD8/32HD is a 32GB DDR4 ECC Registered DIMM engineered for rack-mount servers, workstations, and enterprise platforms that demand data integrity and continuous operation. Operating under the Server Premier product series, this module is a direct fit for environments where unplanned downtime or silent data corruption is not an option. At its core, the module is organised as a 4G × 72-bit array constructed from eighteen 2G × 8-bit FBGA components in a dual-rank (2Rx8) configuration. ECC (Error Correcting Code) logic continuously detects and corrects single-bit memory errors and detects multi-bit errors, making it suitable for always-on server workloads. The registered (buffered) design offloads electrical load from the memory controller, supporting high-density server configurations. The Serial Presence Detect (SPD) is factory-programmed to JEDEC DDR4-3200 standard timings of 22-22-22 at 1.2 V, so the module initialises correctly without manual BIOS tuning. Beyond DDR4-3200, the module supports downward-compatible data transfer rates including PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, and PC4-1600, giving it flexibility across different server generations. Additional reliability features include Die Termination (ODT) for signal integrity, a built-in temperature sensor integrated with the SPD, bidirectional differential data strobes, an 8-bit prefetch architecture, and burst-length switching (BL8 or BC4) the-fly. CA Parity (Command/Address Parity) mode and Write CRC support at all speed grades further reduce the risk of corrupted commands reaching DRAM cells. Internal bank grouping enables lower CAS-to-CAS latency between different bank group accesses (tCCD_L/tCCD_S), improving throughput on multi-threaded workloads. The 288-pin DIMM uses gold contact fingers for reliable seating and long-term corrosion resistance. The module is RoHS compliant. Verified Specifications: • Model: KSM32RD8/32HD • Series: Server Premier • Capacity: 32 GB (4G × 72-bit) • Memory Type: DDR4 SDRAM, Registered with Parity (RDIMM) • Speed Grade: DDR4-3200 (PC4-25600) • Tested Latency: CL22 (22-22-22) • Voltage: VDD/VDDQ 1.2 V; VPP 2.5 V • Rank / Bus Width: 2Rx8 • DIMM Width: 288-pin • ECC: Yes • RoHS Compliant: Yes • Warranty: Limited Lifetime
