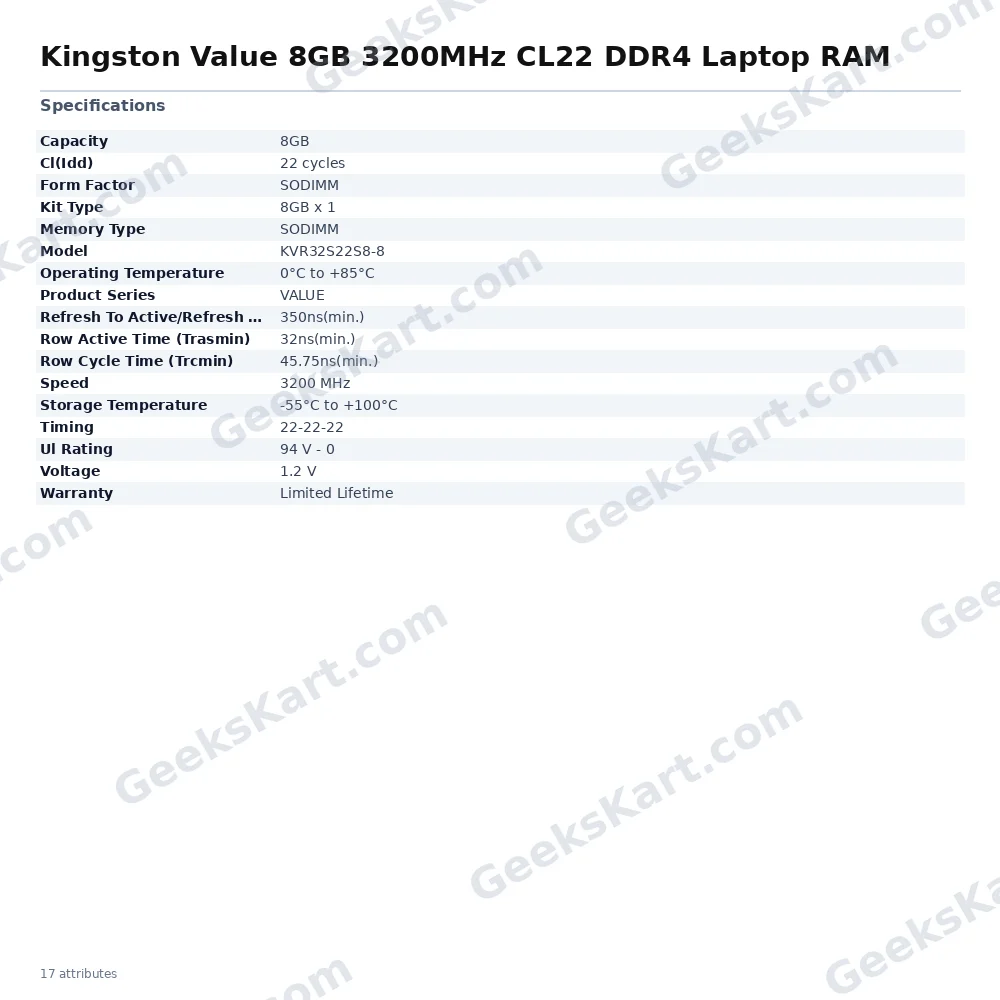

Kingston Value 8GB 3200MHz CL22 DDR4 SODIMM Laptop RAM (KVR32S22S8-8)

The Kingston Value RAM KVR32S22S8-8 is a single 8GB DDR4 SODIMM module designed for laptops and compact systems that accept 260-pin SO-DIMM memory. Built to JEDEC DDR4-3200 standards, it operates at a bus speed of 3200 MHz with CL22 primary timings (22-22-22) and a supply voltage of 1.2V — keeping power draw low relative to older DDR3 platforms. This module is configured as a 1G × 64-bit (8GB) SDRAM using eight 1G × 8-bit FBGA components in a single-rank arrangement. It supports die termination (ODT) for data, strobe, and mask signals, low-power auto self-refresh (LPASR), data bus inversion (DBI), and die VREFDQ generation and calibration — features that help maintain signal integrity at high data rates. The internal organisation consists of 16 banks arranged in four groups of four, enabling efficient memory scheduling. Burst chop (BC4) and burst length (BL8) can be set via the mode register or toggled the-fly (OTF), providing flexibility across workloads. The PCB uses a fly-by topology with a terminated control, command, and address bus for improved signal fidelity. Module height is 30.00 mm (1.18 inches), making it compatible with most standard laptop chassis. An board I2C SPD EEPROM stores JEDEC-standard timing parameters so the host system can auto-configure the module without manual overrides. The module carries a UL 94 V-0 flammability rating and is both RoHS compliant and halogen-free. Kingston backs it with a limited lifetime warranty. Verified Specifications: - Model: KVR32S22S8-8 - Capacity: 8GB (1G × 64-bit) - Memory Type: DDR4 SDRAM - Form Factor: 260-pin SODIMM - Speed: DDR4-3200 (3200 MHz) - Primary Timings (CL-tRCD-tRP): 22-22-22 - Voltage (VDD / VDDQ): 1.2V typical - VPP: 2.5V typical - Row Cycle Time (tRCmin): 45.75 ns - Row Active Time (tRASmin): 32 ns - Refresh Command Time (tRFCmin): 350 ns - Organisation: Single-rank, 1Rx8 - Internal Banks: 16 (4 groups × 4 banks) - PCB Height: 30.00 mm (1.18 in) - Operating Temperature: 0°C to +85°C - Storage Temperature: −55°C to +100°C - UL Rating: 94 V-0 - Compliance: RoHS, Halogen-Free - Warranty: Limited Lifetime
