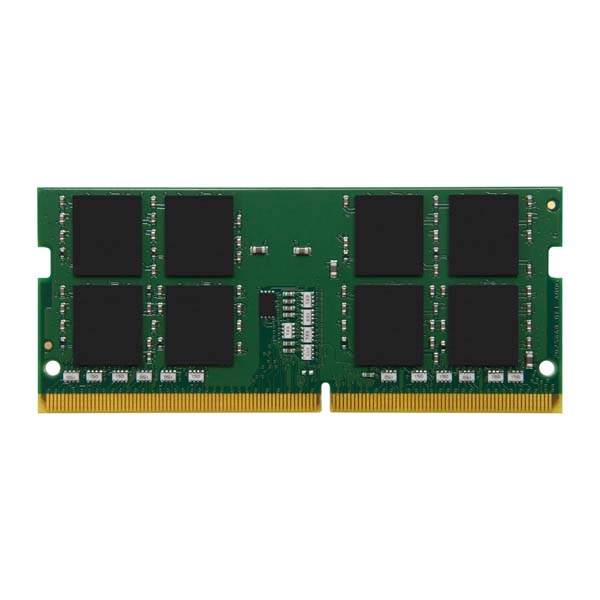

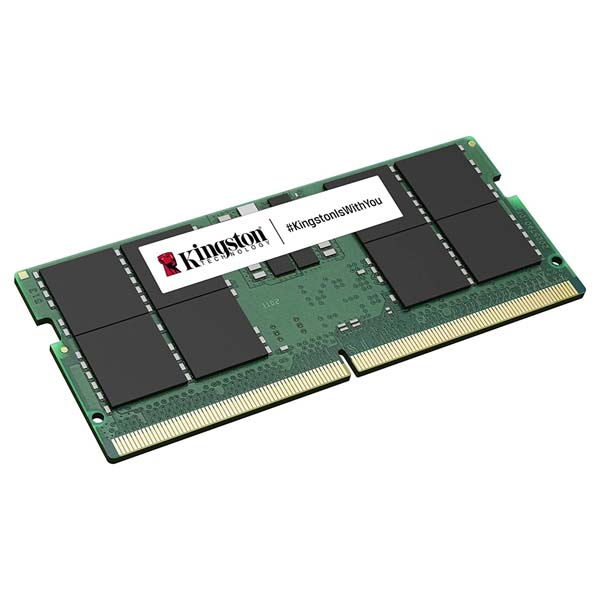

Kingston Value RAM 8GB 5600MT/s DDR5 Non-ECC CL46 SODIMM 1Rx16 KVR56S46BS6-8 Laptop Memory

The Kingston ValueRAM KVR56S46BS6-8 is an 8GB DDR5 SODIMM designed for laptop upgrades where reliability and JEDEC-standard compatibility matter most. Built around a 1Rx16 single-rank, 16Gbit-per-die architecture, the module organises 1G x 64 bits of capacity across four 1G x 16-bit FBGA components — a layout optimised for the power budgets found in portable systems. The SPD is factory-programmed to JEDEC DDR5-5600 primary timings of 46-45-45 at 1.1V, meaning it slots into any DDR5-compatible laptop without manual tuning. The DDR5 standard shifts die power management (PMIC) and die ECC to the memory itself, reducing motherboard complexity compared with earlier generations, while the 5600MT/s transfer rate provides meaningful bandwidth headroom over DDR4 platforms. Connecting via a 262-pin SODIMM edge with gold contact fingers, the module conforms to standard DDR5 SODIMM mechanical dimensions — a PCB height of 30.00mm (1.18 inches) — making it compatible with the thin-and-light chassis common in modern notebooks. It is RoHS compliant and halogen-free, meeting environmental standards for responsible manufacturing. Kingston ships this module as a single 8GB unit (kit type: 1 x 8GB), so two modules can be paired in dual-channel configurations where the platform and chassis permit an additional slot. No active cooling or RGB lighting is fitted, which keeps the thermal and height profile minimal. Verified Specifications: - Part Number: KVR56S46BS6-8 - Capacity: 8GB (1 x 8GB) - Memory Type: DDR5, Non-ECC - Form Factor: SODIMM, 262-pin - Speed: 5600MT/s (DDR5-5600) - CAS Latency: CL46 - Timings: 46-45-45 - Rank / Die: 1Rx16 - Operating Voltage: 1.1V (VDD / VDDQ); VPP 1.8V - PCB Height: 30.00mm (1.18 in) - Compliance: RoHS, Halogen-Free - GTIN / EAN: 740617334074 - Warranty: Limited Lifetime For laptops that currently run DDR4 SODIMM, note that DDR5 modules are not backward-compatible; confirm your platform supports DDR5 before purchasing. Pairing with a Kingston NV3 or KC3000 SSD can provide a broader performance uplift across both storage and memory subsystems
