Kingston Value Series 16GB 3200MHz CL22 DDR4 Laptop RAM

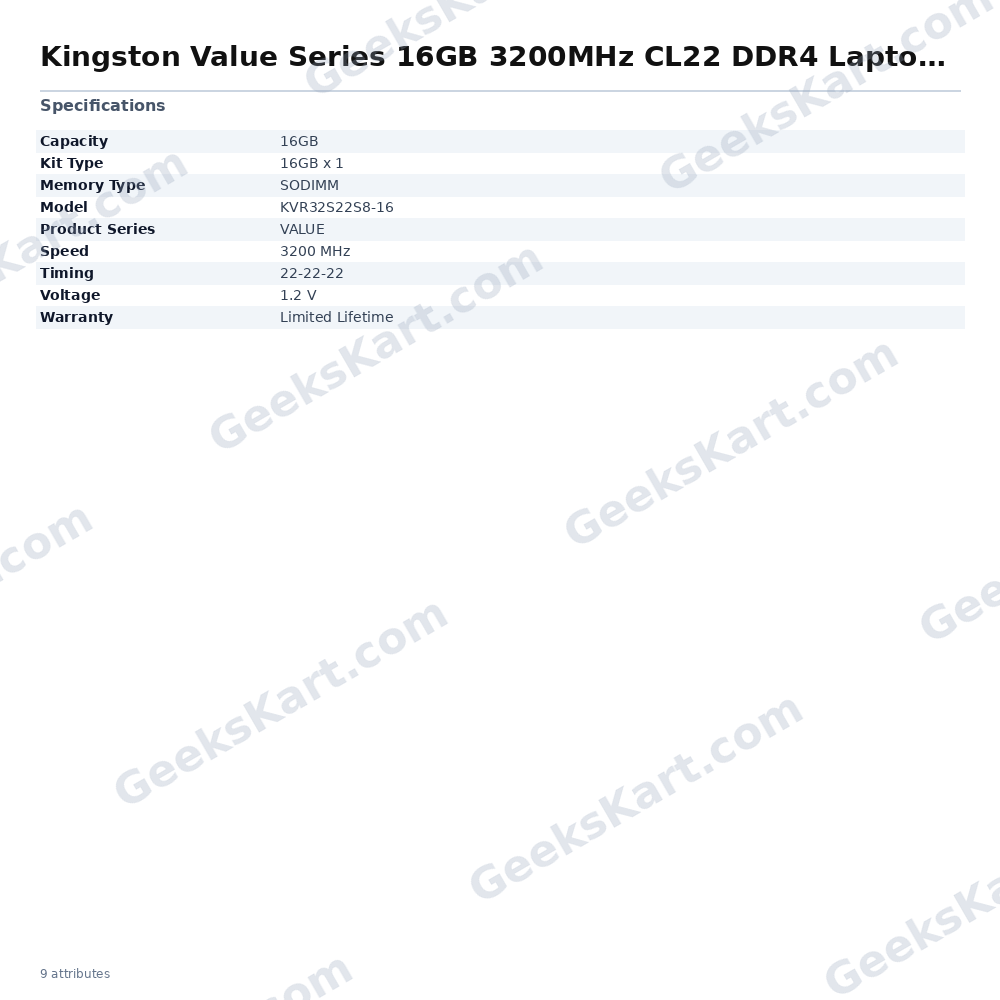

The Kingston Value Series KVR32S22S8-16 is a 16GB DDR4 SO-DIMM module designed for laptop memory upgrades. It operates at a rated speed of DDR4-3200 (PC4-25600) with JEDEC-standard CL22-22-22 timings at 1.2V, making it a dependable choice for users looking to expand system memory without overclocking complexity. This module is built around a single-rank, 1Rx8 architecture using eight 2G x 8-bit FBGA components, delivering a total 2G x 64-bit (16GB) configuration across a 260-pin SO-DIMM form factor with gold contact fingers. The PCB measures 30.00mm (1.18 inches) in height, keeping it within the clearance limits of most laptops and compact systems. Key memory technologies integrated into this module include low-power auto self refresh (LPASR), data bus inversion (DBI) for improved signal integrity, die VREFDQ generation and calibration, and nominal and dynamic die termination (ODT) for data, strobe, and mask signals. The module also supports fly-by topology, a terminated control, command and address bus, and a fixed burst chop (BC) of 4 alongside burst length (BL) of 8 configurable via the mode register set (MRS), with selectable BC4 or BL8 the-fly (OTF) operation. An board I2C serial presence-detect (SPD) EEPROM ensures seamless compatibility detection by the host system. This is a non-ECC module, suited for mainstream consumer laptops rather than server or workstation environments. The module is RoHS compliant and halogen-free, aligning with modern environmental standards. Kingston backs this module with a limited lifetime warranty. Verified Specifications: - Part Number: KVR32S22S8-16 - Capacity: 16GB (1 x 16GB) - Memory Type: DDR4 SO-DIMM - Speed: DDR4-3200 (3200MHz) - Timings: CL22-22-22 (JEDEC) - Voltage: 1.2V - Rank: Single rank (1Rx8) - Form Factor: 260-pin SO-DIMM - ECC: Non-ECC - PCB Height: 30.00mm (1.18") - Compliance: RoHS, Halogen-Free - Warranty: Limited Lifetime
