Kingston Value Series 16GB 5600MHz CL46 DDR5 Ram

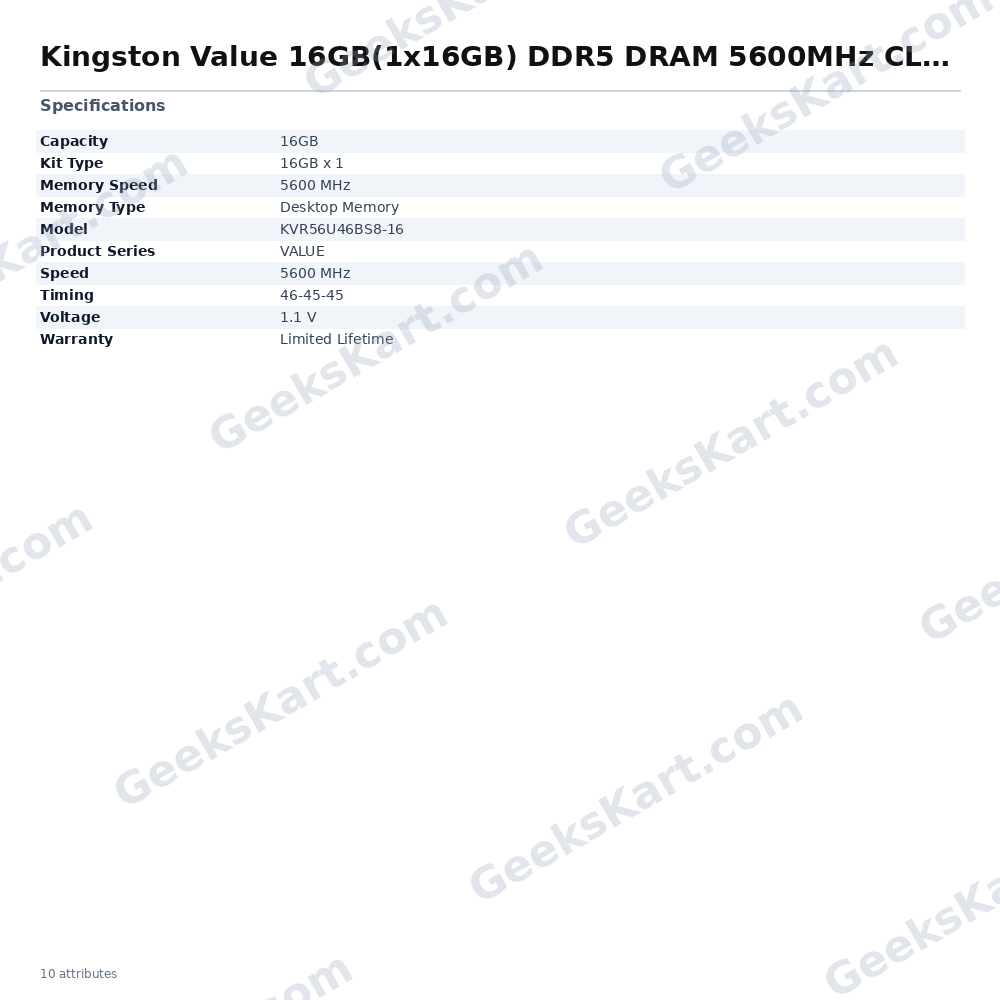

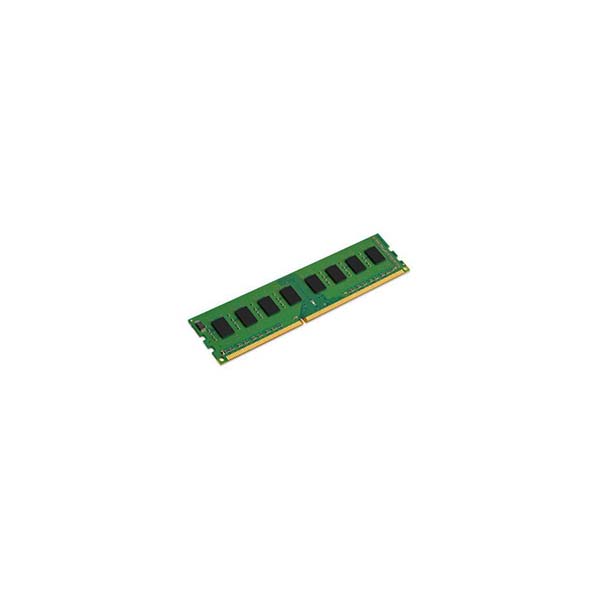

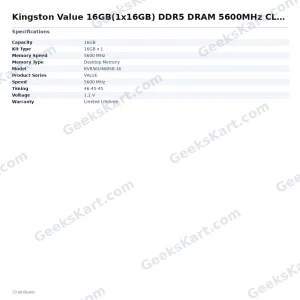

The Kingston Value KVR56U46BS8-16 is a single 16GB DDR5 desktop memory module designed for mainstream desktop systems that support the DDR5 standard. Operating at DDR5-5600 (PC5-44800), it delivers the bandwidth headroom that modern Intel and AMD platforms require, while adhering strictly to JEDEC specifications so it installs and runs reliably without manual tuning. At its core this module is a 2G x 64-bit DDR5-5600 CL46 SDRAM built on a 1Rx8 topology using eight 2G x 8-bit FBGA components. The SPD is factory-programmed to JEDEC standard primary timings of 46-45-45 at 1.1V, making it a plug-and-play upgrade with no BIOS intervention required on compatible motherboards. Gold contact fingers on the 288-pin DIMM edge connector ensure a clean, corrosion-resistant connection across the module's service life. The module carries Kingston's limited lifetime warranty, reflecting the brand's confidence in component quality and long-term reliability. The PCB height of 31.25 mm (approximately 1.23 inches) keeps it compatible with most standard desktop chassis and coolers, including those with lower-profile CPU cooler clearances. It is RoHS compliant and halogen-free, meeting common environmental standards. For system builders pairing this RAM with a Kingston NVMe SSD, compatible Kingston storage options are available across the Gen4 and Gen5 product lines. If 16GB is insufficient for your workload, Kingston also offers a 32GB single-stick DDR5 5600MHz CL46 variant under SKU KVR56U46BD8-32. Verified Specifications: - Model: KVR56U46BS8-16 - Capacity: 16GB (1 x 16GB) - Memory Type: DDR5 SDRAM - Speed Grade: DDR5-5600 (PC5-44800) - CAS Latency: CL46 - Primary Timings: 46-45-45 - Voltage (VDD / VDDQ): 1.1V typical - VPP: 1.8V typical - VDDSPD: 1.8V–2.0V - Form Factor: 288-pin UDIMM - Rank x Width: 1Rx8 - PCB Height: 31.25 mm (1.23 in) - GTIN / EAN-UPC: 740617332827 - Compliance: RoHS, Halogen-Free - Warranty: Limited Lifetime
