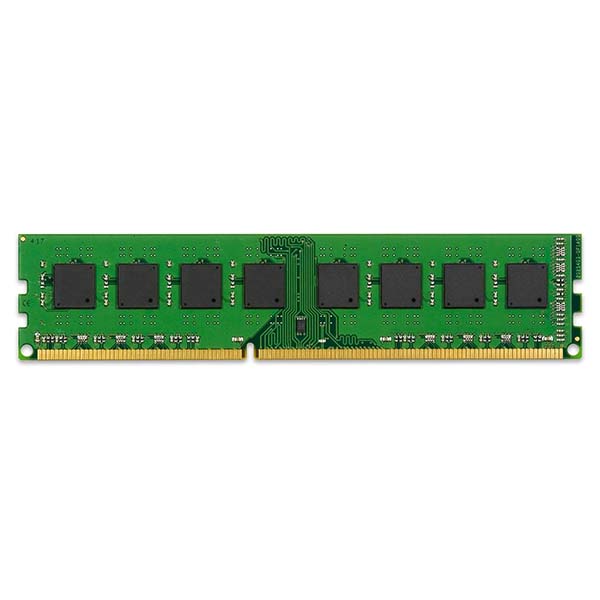

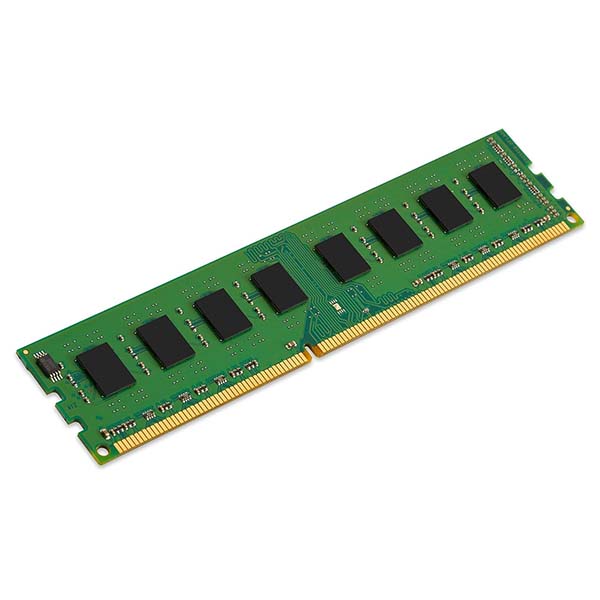

Kingston Value Series 32GB 5600MHz CL46 DDR5 RAM
MPN KVR56U46BD8-32 · Brand Kingston
Kingston Value KVR56U46BD8-32 is a single 32GB DDR5-5600 CL46 UDIMM running at 1.1V with JEDEC-standard timings of 46-45-45 — a straightforward, plug-and-play desktop memory upgrade backed by a Limited Lifetime Warranty
Inclusive of GST · GST invoice available
Overview
The Kingston Value KVR56U46BD8-32 is a 32GB DDR5 desktop memory module designed for users who want a reliable, JEDEC-compliant upgrade for their modern desktop platform. Running at 5600MHz with CL46-45-45 primary timings, this single 288-pin UDIMM delivers a balanced combination of capacity and speed suitable for everyday computing, multitasking, productivity workloads, and mainstream desktop builds. As a DDR5 module, it benefits from the generational improvements the standard brings over DDR4: lower operating voltage at just 1.1V (VDD and VDDQ typical), die ECC for improved data integrity, and a higher baseline frequency ceiling compared to previous generations. The 2Rx8 configuration means the module uses a dual-rank, eight-bit-wide chip layout across sixteen 2Gb x 8-bit FBGA components, providing a 4G x 64-bit data bus width that delivers the full 32GB capacity from a single slot. The SPD (Serial Presence Detect) is factory-programmed to JEDEC standard DDR5-5600 latency, so it is plug-and-play compatible with any motherboard that supports DDR5 UDIMM. Gold contact fingers on the 288-pin edge connector ensure reliable electrical contact and long-term durability in the DIMM slot. The module is RoHS compliant and Halogen-Free, reflecting Kingston's commitment to responsible manufacturing practices. The low-profile PCB measures 1.23 inches (31.25mm) in height, making it compatible with cases and coolers that have tight clearance requirements above the memory slots. Kingston backs this module with a Limited Lifetime Warranty, providing long-term assurance for desktop builds where reliability matters. Verified Specifications: - Part Number: KVR56U46BD8-32 - GTIN / EAN-UPC: 740617332865 - Capacity: 32GB (1 x 32GB) - Memory Type: DDR5 SDRAM - Speed: 5600MHz (DDR5-5600) - CAS Latency: CL46 (46-45-45) - Voltage: 1.1V (VDD / VDDQ typical); VPP 1.8V typical - Form Factor: UDIMM, 288-pin - Rank Configuration: 2Rx8 - PCB Height: 1.23 inches (31.25mm) - Compliance: RoHS, Halogen-Free - Warranty: Limited Lifetime
Datasheet
| Voltage | 1.1 V |
|---|---|
| Model | KVR56U46BD8-32 |
| Speed | 5600 MHz |
| Product Series | VALUE |
| Memory Type | DDR5 |
| Warranty | Lifetime |
| Capacity | 32GB |
| Memory Speed | 5600 MHz |
| Kit Type | 32GB x 1 |
| Timing | 46-45-45 |
