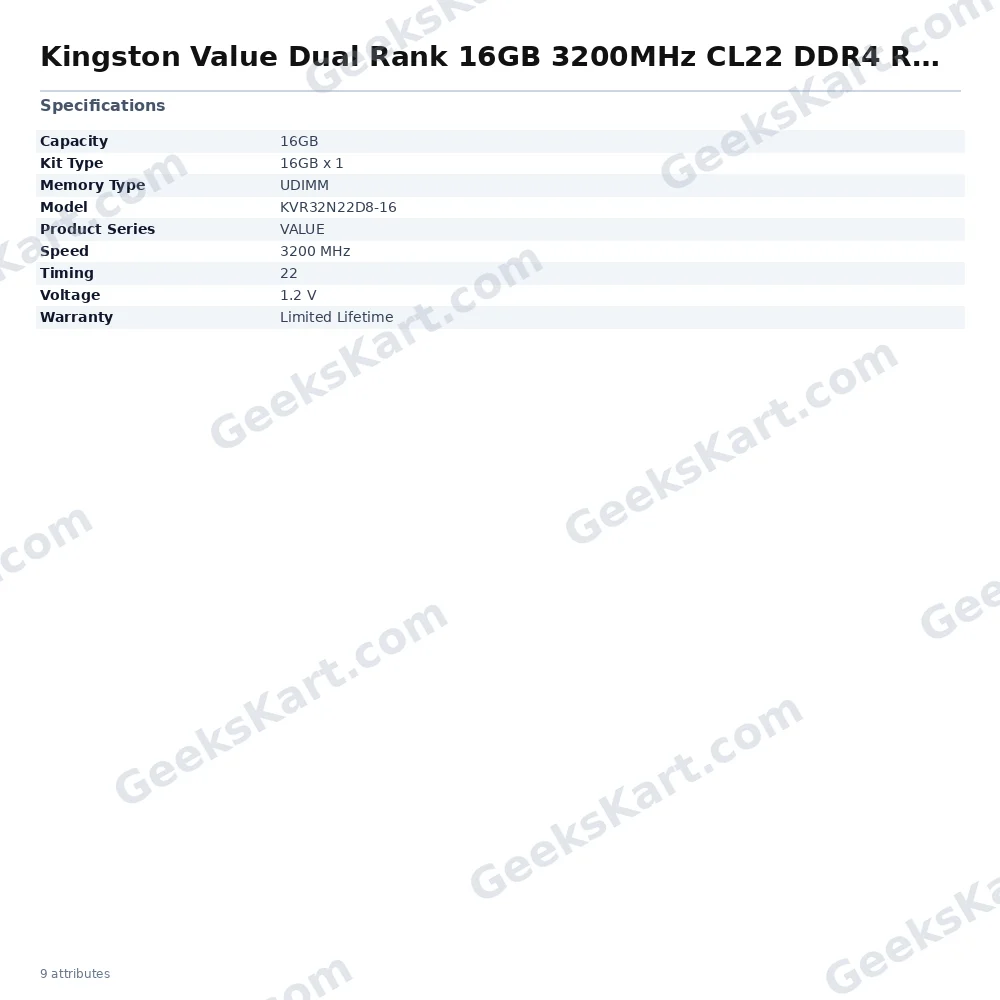

Kingston ValueRAM 16GB DDR4 3200MHz CL22 Dual-Rank UDIMM Desktop Memory

The Kingston ValueRAM KVR32N22D8-16 is a 16GB DDR4 desktop memory module designed for reliable, everyday computing in DDR4-compatible systems. It operates on the PC4-3200 standard at 3200MHz and adheres to JEDEC-specified CL22-22-22 latency timings, making it a straightforward drop-in upgrade for mainstream desktops running Intel 10th or 11th Generation platforms and compatible AMD boards. Built on a dual-rank 2Rx8 architecture using sixteen 1G x 8-bit FBGA components, this module delivers a 2G x 64-bit data path across 288 gold-plated contact fingers in a standard UDIMM form factor. The gold contacts support consistent electrical connectivity and resist corrosion over extended use. The module's PCB stands 31.25mm (1.23 inches) tall, fitting within most standard desktop tower and ATX motherboard slots without clearance issues. This module runs at a core voltage of 1.2V (VDD and VDDQ), which is in line with the DDR4 standard's low-voltage design goals. Supporting technologies include nominal and dynamic die termination (ODT) for data, strobe, and mask signals; low-power auto self-refresh (LPASR) for reduced idle power draw; data bus inversion (DBI) for improved signal integrity; and die VREFDQ generation and calibration for consistent reference voltage. The SPD EEPROM is programmed to JEDEC DDR4-3200 standard timings and uses an I2C serial presence-detect interface to communicate configuration data to the host system automatically. Internal organisation includes 16 banks arranged in four groups of four, with support for both fixed burst chop of 4 (BC4) and burst length of 8 (BL8), selectable via the mode register set (MRS) or the-fly (OTF). A fly-by topology with terminated control, command, and address bus ensures signal integrity at 3200MHz. The module carries Kingston's Limited Lifetime Warranty and is RoHS compliant and halogen-free. Verified Specifications: - Part Number: KVR32N22D8-16 - Capacity: 16GB (single module) - Memory Type: DDR4 SDRAM - Form Factor: 288-pin UDIMM - Speed: DDR4-3200 (PC4-3200) - Timings: CL22-22-22 (JEDEC) - Voltage: 1.2V (VDD / VDDQ) - Rank: Dual Rank (2Rx8) - PCB Height: 31.25mm (1.23") - Compliance: RoHS, Halogen-Free - Warranty: Limited Lifetime
