Lian Li O11 Dynamic Mini V2 ATX Mid Tower Case
MPN G99-O11DMIV2X-IN · Brand LIAN LI · ATX, mATX, Mini-ITX
The Lian Li O11 Dynamic Mini V2 is a 45.38L ATX mid-tower case with pillar-less tempered glass panels, a 10-degree slanted base for improved GPU airflow, support for ATX Back-Connect motherboards, and cooling capacity for up to nine fans and a 360mm radiator
Inclusive of GST · GST invoice available
Overview
The Lian Li O11 Dynamic Mini V2 is a compact ATX mid-tower chassis designed for builders who want serious hardware compatibility without sacrificing desk space. With a refined 45.38L internal volume — only 2L more than the original O11D Mini — this case delivers significantly expanded support for modern, high-performance components while retaining a controlled footprint. The front and side panels are pillar-less tempered glass, providing an unobstructed view of your build from multiple angles. A 10-degree slanted base channels cool air directly toward the GPU mounting area, improving thermal performance at the source while adding a distinctive visual angle to the chassis silhouette. One of the standout features of the Mini V2 is its support for ATX Back-Connect motherboards, in addition to standard ATX, Micro-ATX, and Mini-ITX form factors. Back-Connect compatibility enables cleaner cable routing by routing power and data connections behind the board, resulting in a tidier interior. An extended side mesh panel allows ATX power supply units up to 200mm in length to be accommodated without widening the case. For cooling, the chassis supports up to nine 120mm fans across the top (3x 120mm or 2x 140mm), side (2x 120mm), bottom (3x 120mm), and rear (1x 120mm) positions. Radiator support reaches up to 360mm on the top, 280mm on the top with a one-slot motherboard offset, and 240mm on the side. Anti-sag brackets for the GPU — both horizontal and vertical — are included to support heavier modern graphics cards. The bottom of the case features a dust filter for intake protection. Verified Specifications: - Chassis Volume: 45.38L - Form Factor Support: ATX, Micro-ATX, Mini-ITX, ATX Back-Connect - Max GPU Length: 400mm - Max CPU Cooler Height: 160mm - Max PSU Length: 200mm (ATX) - Fan Support: Up to 9x 120mm (Top: 3x120/2x140, Side: 2x120, Bottom: 3x120, Rear: 1x120) - Radiator Support: Top 360/280/240mm, Side 240mm - Storage: Up to 4x 2.5-inch SSD, up to 2x 3.5-inch HDD - Expansion Slots: 5 - Front I/O: USB 3.0, USB 3.2 Type-C, Audio, Power Button - Dust Filters: Bottom - Materials: Aluminium, Tempered Glass - Colour: Black - Pre-installed Fans: None - Warranty: 1 Year

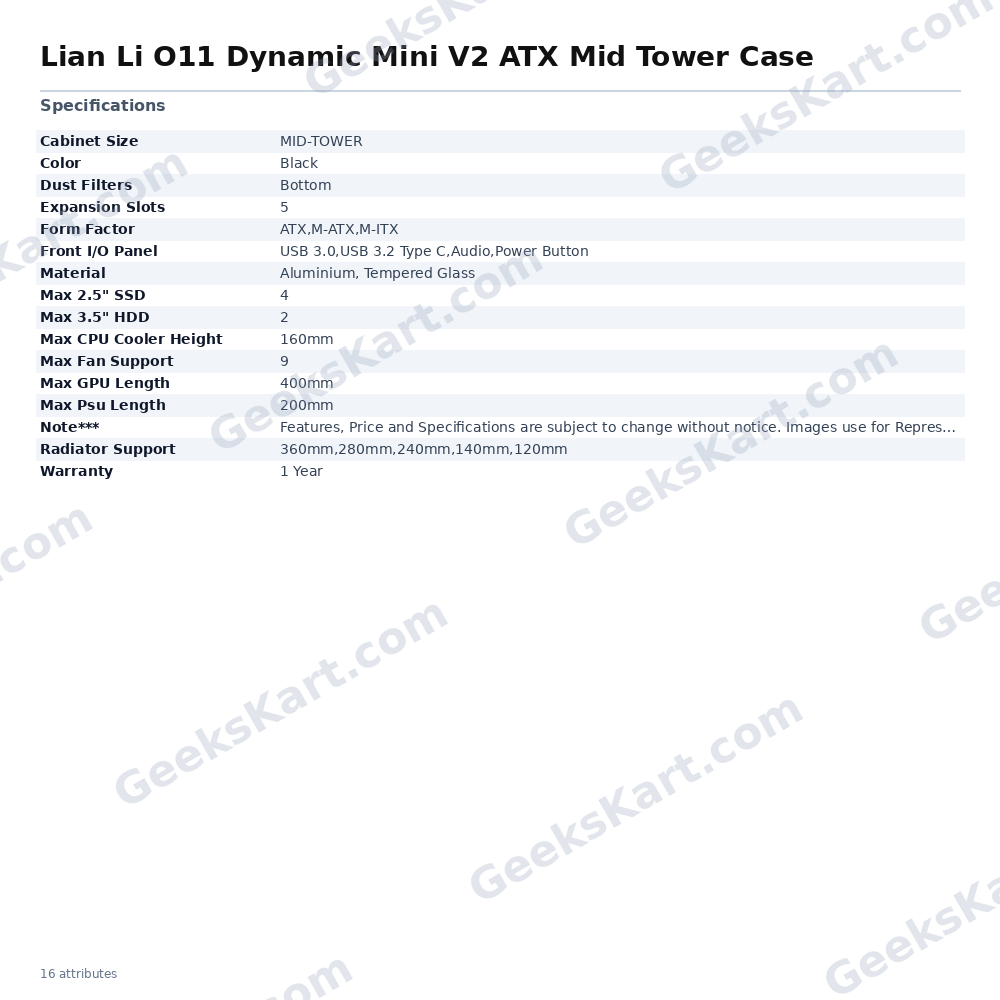

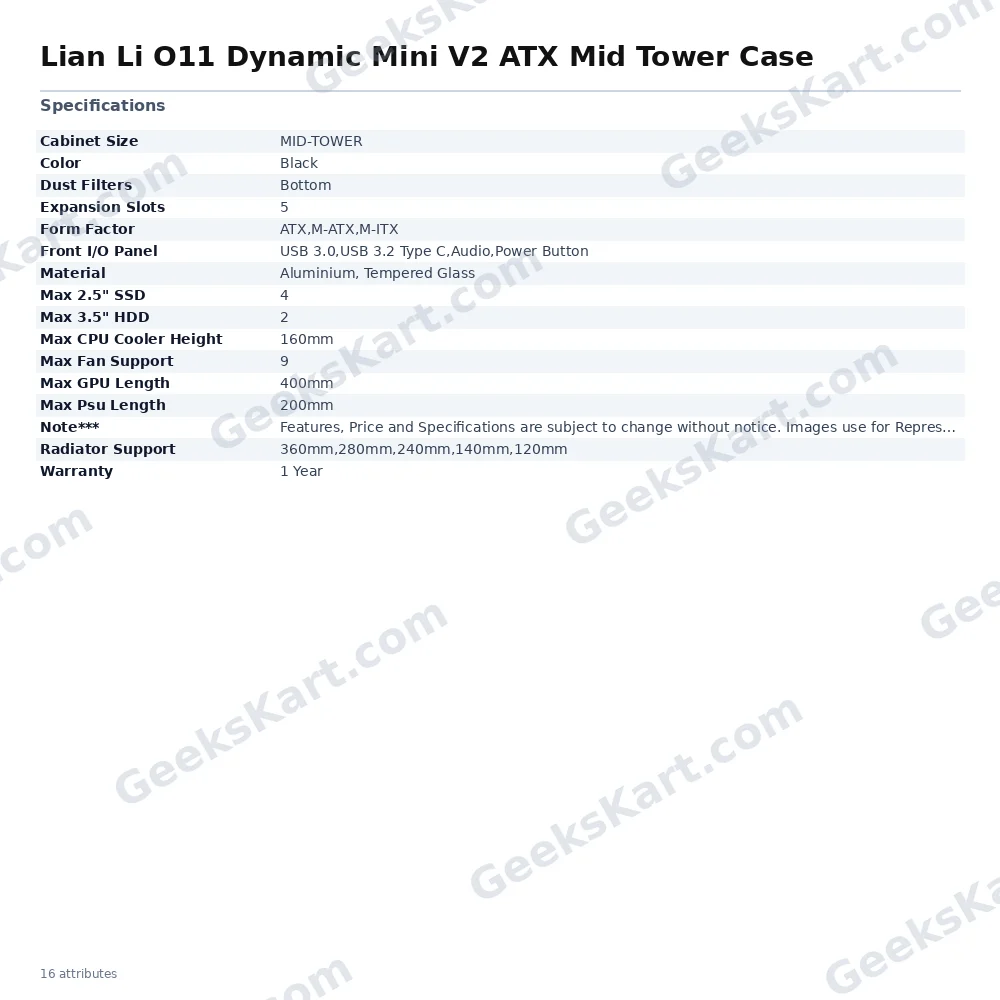

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Aluminium, Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Bottom |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 400mm |
| Max Psu Length | 200mm |
| Expansion Slots | 5 |
| Front I/O Panel | USB 3.0,USB 3.2 Type C,Audio,Power Button |
| Max Fan Support | 9 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Max CPU Cooler Height | 160mm |
