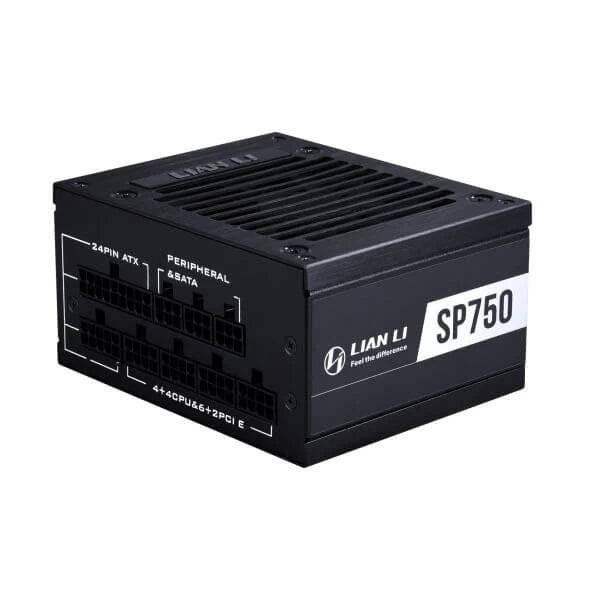

LIAN LI SP750 750W SFX 80+ Gold Fully Modular ITX 2.0 Power Supply
MPN LIANLI-SP750-750W-GOLD · Brand Lian Li · SFX
Features of LIAN LI SP750 750W SFX 80+ Gold Fully Modular The LIAN LI SP750 750W SFX 80+ Gold Fully Modular ITX 2.0 Power Supply is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components. 80 PLUS GOLD Efficiency Fully modular braided cables for a clean look Japanese electrolytic capacitors for high durability ZERO RPM mode under 40% load for silent operation Sleek and classic exterior with brushed aluminum housing 80 PLUS Gold Certific
Inclusive of GST · GST invoice available
Overview
Features of LIAN LI SP750 750W SFX 80+ Gold Fully Modular
The LIAN LI SP750 750W SFX 80+ Gold Fully Modular ITX 2.0 Power Supply is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
- 80 PLUS GOLD Efficiency
- Fully modular braided cables for a clean look
- Japanese electrolytic capacitors for high durability
- ZERO RPM mode under 40% load for silent operation
- Sleek and classic exterior with brushed aluminum housing
80 PLUS Gold Certificate
SP750 750W Power Supply guarantees up to 92% efficiency, ensuring less power wastage.
Cooling in Silence
The Lian Li Power Supply SP750 features a 92mm hydraulic bearing fan that operates at zero RPM mode until 40% load in order to achieve minimal acoustic levels.
Japanese Electrolytic Capacitors
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offering the highest stability.
Fully Modular Connection and Included Braided Cables
The fully modular power supply provides all necessary braided cables right out of the box, ensuring less cable clutter and more aesthetics.
Five Years Warranty
LIAN LI offers a 5-year limited warranty for the SP750, reflecting our confidence in the quality of our performance SFX PSU.
Get the best 80 Plus Gold computer smps price from us today!
Specifications of LIAN LI SP750 750W SFX 80+ Gold Fully Modular
| MODEL | SP750 |
| DIMENSIONS | (D)100 mm X (W)63.5mm X (H)125 mm |
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | Black |
| MATERIAL | Steel/brushed aluminum housing |
| FORM FACTOR | SFX |
| CERTIFICATION | 80 PLUS Gold |
| MAX. DC OUTPUT | 750W |
| COMBINED +3.3V & +5V | 100W |
| COMBINED +12V | 744W |
| INPUT VOLTAGE | 100 – 240 Vrms |
| INPUT FREQUENCY RANGE | 50Hz – 60 Hz |
| PFC | 0.90 at full load"}">Active PFC (PF)>0.90 at full load |
| EFFICIENCY | 91.89% Max |
| PROTECTIVE CIRCUIT | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| CONNECTORS | 1x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pcs 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pcs 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pcs 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pcs |
| NOISE LEVEL | 31.8 dBA Max |
| BEARING TYPE | 31.Fluid Dynamic Bearing (FDB) |
| WARRANTY | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |

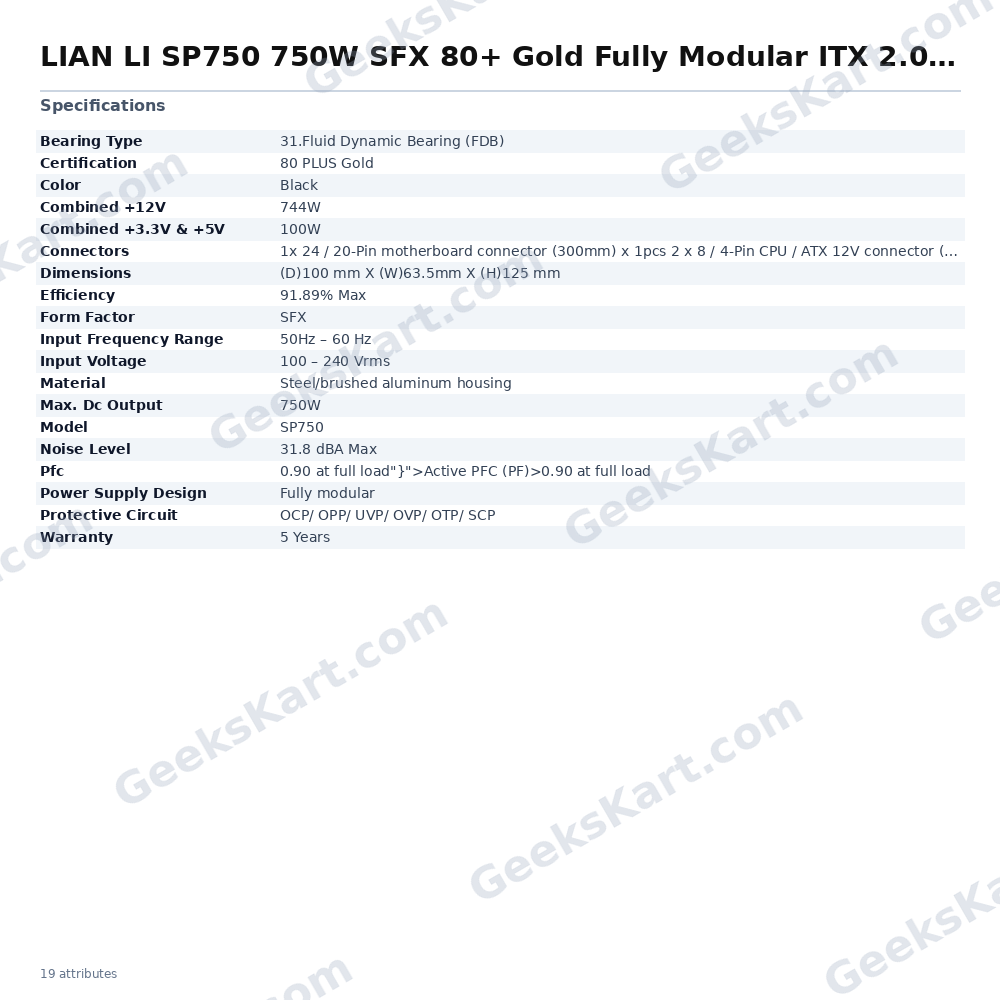

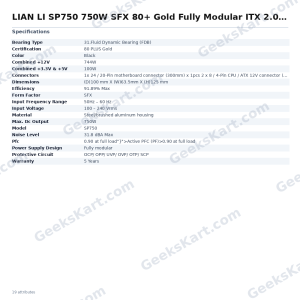

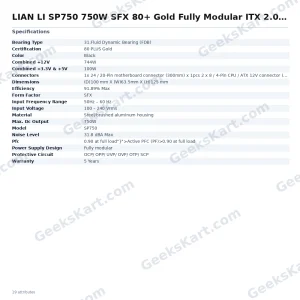

Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | SFX |
| color | Black |
| Pfc | 0.90 at full load"}">Active PFC (PF)>0.90 at full load |
| Model | SP750 |
| Material | Steel/brushed aluminum housing |
| Connectors | 1x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pcs 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pcs 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pcs 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pcs |
| Dimensions | (D)100 mm X (W)63.5mm X (H)125 mm |
| Efficiency | 91.89% Max |
| Noise Level | 31.8 dBA Max |
| Bearing Type | 31.Fluid Dynamic Bearing (FDB) |
| Certification | 80 PLUS Gold |
| Combined +12V | 744W |
| Input Voltage | 100 – 240 Vrms |
| Max. Dc Output | 750W |
| Protective Circuit | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| Power Supply Design | Fully modular |
| Combined +3.3V & +5V | 100W |
| Input Frequency Range | 50Hz – 60 Hz |
