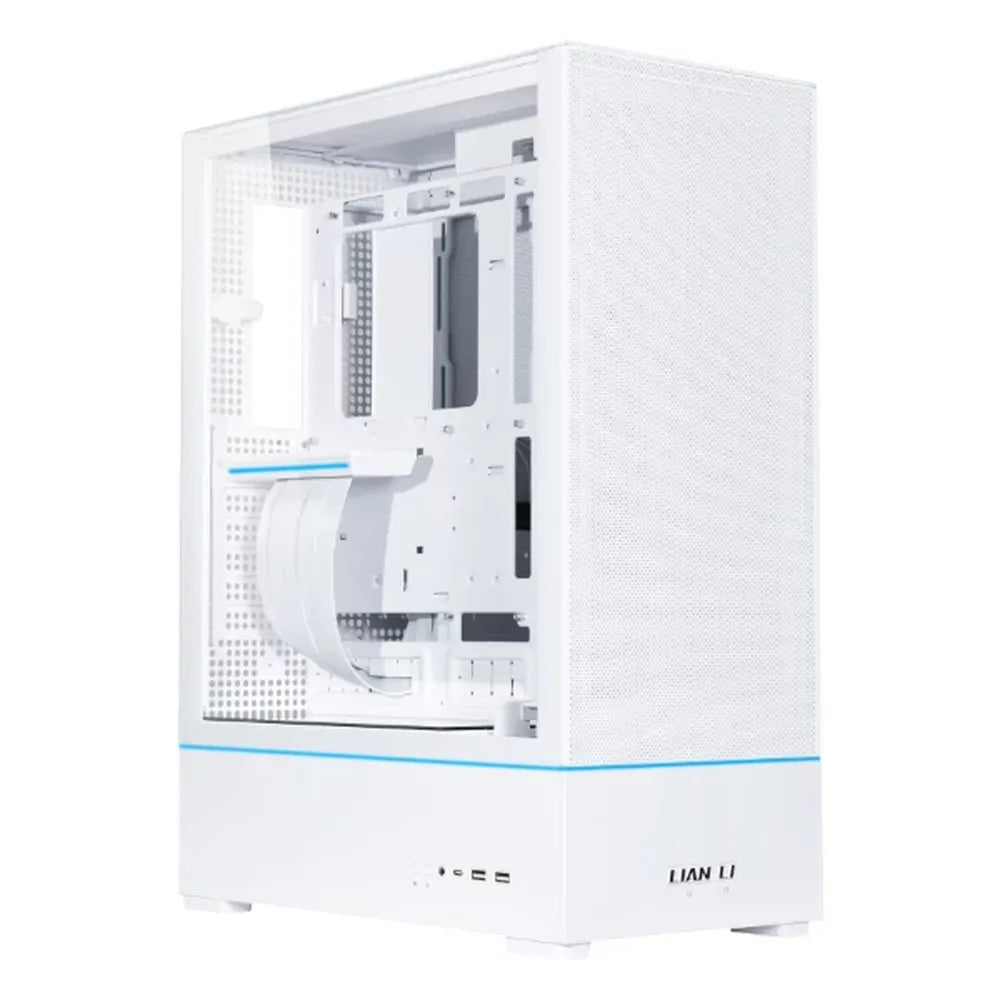

Lian Li SUP01 ATX Mid Tower Cabinet ( White )

The Lian Li SUP01 (White) is a compact, stand-up platform ATX mid tower cabinet engineered around a front-facing GPU layout and independent chambered direct cooling — a departure from conventional tower case design that rewards builders who want thermal efficiency without sacrificing desk space. At just 44.8 litres and measuring 403.45 mm (D) × 212 mm (W) × 534 mm (H) with feet, the SUP01 maintains a narrow footprint while accommodating full-size ATX, Micro-ATX, and Mini-ITX motherboards, including the increasingly popular back-connect ATX standard. The GPU mounts at the front of the chassis via an included 510 mm PCIe 4.0 riser cable, positioning it to draw cool air directly through the front mesh panel and exhaust heat laterally through three pre-installed 120 mm PWM fans rated at up to 1,800 RPM, 68.88 CFM, and 2.56 mmH₂O static pressure. An adjustable GPU bracket accommodates cards from 310 mm to 400 mm in length and accommodates varying thicknesses, with a top brace for transport stability. The independent chambered layout separates GPU and motherboard thermals. A rear-exterior 120 mm fan bracket (not pre-installed) draws fresh air across M.2 storage, VRM modules, and memory, exhausting through the top mesh panel without interference from radiators or cables. Side 2 supports a 360 mm or 280 mm AIO radiator with a maximum pump head height of 88.2 mm, so popular 240 mm and 360 mm liquid coolers fit without compromise. Storage options are flexible: a removable drive cage beneath the PSU shroud holds two 2.5-inch SSDs or two 3.5-inch HDDs, while two additional SSD mounts above the shroud bring the total to four 2.5-inch SSDs simultaneously. The PSU shroud accepts ATX power supplies up to 220 mm in length. Dual ARGB strips — one wrapping the PSU shroud and one on the PCIe riser bracket — are controlled directly from the front I/O panel via dedicated colour and mode buttons, offering six lighting modes without third-party software dependency. Three magnetic and tray dust filters (top, front, bottom) protect the internals, while ESP cable clips, Velcro straps, and a rubber grommet around the PSU shroud streamline cable routing for HDMI and DisplayPort GPU signal cables. Verifiable Specifications: • Product Code: G99-SUP01W-IN • Dimensions: 403.45 mm (D) × 212 mm (W) × 534 mm (H) / 524 mm without feet • Capacity: 44.8 L • Material: Steel body, 4.0 mm tempered glass • Motherboard Support: ATX / M-ATX / ITX / ATX Back-Connect • PSU Support: ATX, max 220 mm • Included Fans: 3 × 120 mm PWM (300–1,800 RPM, max 68.88 CFM, max 2.56 mmH₂O) • Fan Support: Side 1: 3×120 mm; Side 2: 3×120 mm or 2×140 mm; Rear exterior: 1×120 mm • Radiator Support: Side 2 — 360 mm or 280 mm; max pump height 88.2 mm • GPU Length Clearance: Max 400 mm • CPU Cooler Height Clearance: Max 88.2 mm • Drive Support: 2×2.5" SSD or 2×3.5" HDD (cage) + 2×2.5" SSD (above PSU shroud) • Riser Cable: 510 mm PCIe 4.0 with ARGB cover • I/O: 2×USB 3.0 Type-A, 1×USB 3.1 Type-C, 1×Mic, Power, Reset, ARGB controls • Expansion Slots: 7 (low profile) / 4 (standard profile with riser) • Dust Filters: 3 (1×bottom tray, 1×front magnetic, 1×top magnetic) • Warranty: 1 Year
