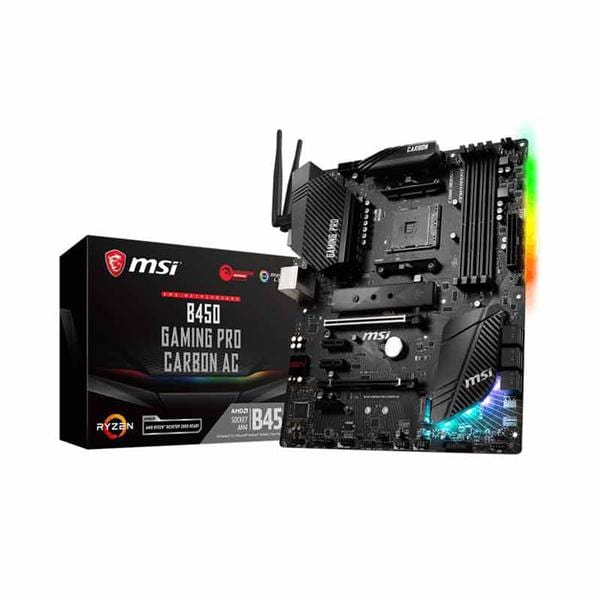

MSI B450 Gaming Pro Carbon AC Wifi DDR4 AMD Motherboard
MPN MSI-B450-GAMING-PRO-CARBON-AC-WIFI · Brand MSI
MSI B450 Gaming Pro Carbon AC is an ATX gaming motherboard for AMD AM4 Ryzen processors, featuring dual-band Intel Wi-Fi AC, DDR4 support up to 3466 MHz (OC), dual M.2 slots, USB 3.1 Gen2, and Mystic Light RGB synchronisation
Inclusive of GST · GST invoice available
Overview
The MSI B450 Gaming Pro Carbon AC is a full-size ATX motherboard built on the AMD B450 chipset for Socket AM4, supporting AMD Ryzen 1st and 2nd Generation processors as well as Ryzen and Athlon APUs with Radeon Vega graphics. Measuring 12 in. x 9.6 in. (30.5 cm x 24.4 cm) with 9 standard mounting holes, it fits any standard ATX mid-tower or full-tower chassis. Memory capacity reaches up to 64 GB across four DDR4 slots operating in dual-channel mode. JEDEC-supported speeds run from 1866 MHz up to 2667 MHz, while A-XMP overclocking profiles extend support to 3466 MHz. The primary M.2 slot (M2_1) connects via PCIe 3.0 x4 for Ryzen processors, with a secondary M.2 slot (M2_2) running at PCIe 2.0 x4 from the chipset. Six SATA 6 Gb/s ports complete the storage array, and RAID 0, 1, and 10 configurations are supported for SATA devices alongside RAID 0/1 for M.2 NVMe pairs. The wireless subsystem relies on an Intel Dual Band Wireless-AC 9260 card seated in a dedicated M.2 E-key slot, providing 802.11 a/b/g/n/ac coverage on both 2.4 GHz and 5 GHz bands at theoretical speeds up to 1.73 Gbps, plus Bluetooth 5.0. Wired networking uses an Intel I211AT Gigabit LAN controller. USB connectivity includes two USB 3.1 Gen2 ports (one Type-A, one Type-C) on the rear panel delivering up to 10 Gbps each, four USB 3.1 Gen1 Type-A ports, and six USB 2.0 ports. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel high-definition sound with S/PDIF optical output. The board carries Mystic Light RGB with two 5050 12 V strip headers, one addressable WS2812B 5 V header, and a dedicated Corsair iCUE connector. The 8+4 pin CPU power configuration, Core Boost digital power design, and extended heatsink are intended to support higher core-count Ryzen processors. A BIOS Flashback+ button on the rear I/O allows firmware updates without a CPU or memory installed. Verified Specifications: - Chipset: AMD B450 - Socket: AM4 - Form Factor: ATX, 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Memory: 4 x DDR4 DIMM, max 64 GB, up to 3466 MHz (A-XMP OC) - PCIe: 1 x PCIe 3.0 x16; 1 x PCIe 2.0 x16 (x4 mode); 3 x PCIe 2.0 x1 - Storage: 2 x M.2 (PCIe 3.0 x4 / PCIe 2.0 x4); 6 x SATA 6 Gb/s - Wi-Fi: Intel 9260 AC, dual-band, up to 1.73 Gbps; Bluetooth 5.0 - LAN: Intel I211AT Gigabit - USB: 2 x USB 3.1 Gen2 (10 Gbps), 4 x USB 3.1 Gen1, 6 x USB 2.0 - Audio: Realtek ALC1220, 7.1-channel HD, S/PDIF out - Warranty: 3 years

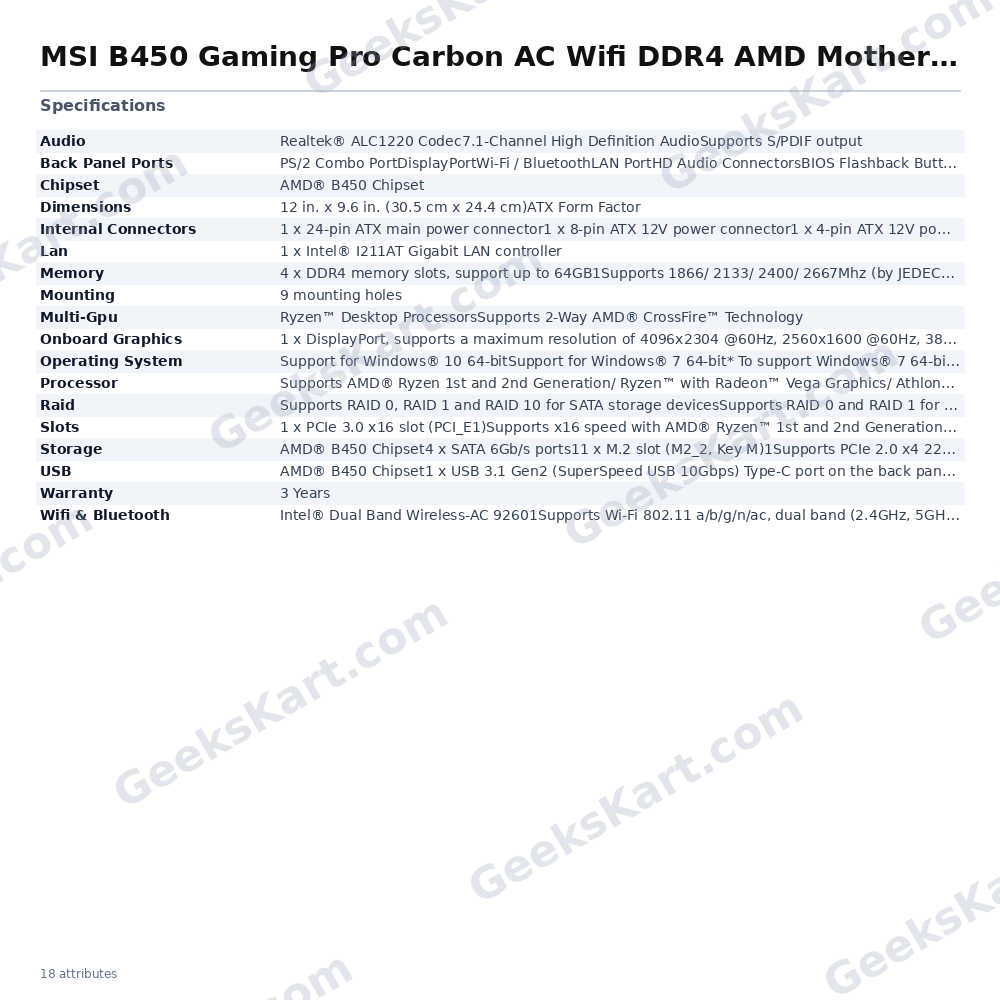

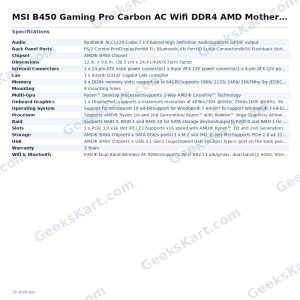

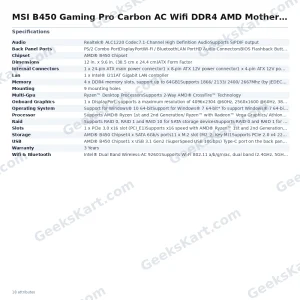

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD® B450 Chipset |
| Lan | 1 x Intel® I211AT Gigabit LAN controller |
| USB | AMD® B450 Chipset1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)AMD® CPU2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe RAID |
| Audio | Realtek® ALC1220 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Slots | 1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processorsSupports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processorsSupports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,23 x PCIe 2.0 x1 slots2PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.PCI_E4 will run x1 speed when installing devices in any PCIe 2.0×1 slot |
| Memory | 4 x DDR4 memory slots, support up to 64GB1Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)Dual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode) |
| Storage | AMD® B450 Chipset4 x SATA 6Gb/s ports11 x M.2 slot (M2_2, Key M)1Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD® CPU1 x M.2 slot (M2_1, Key M)1Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices2 x SATA 6Gb/s ports1PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot |
| Mounting | 9 mounting holes |
| Multi-Gpu | Ryzen™ Desktop ProcessorsSupports 2-Way AMD® CrossFire™ Technology |
| Processor | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| Dimensions | 12 in. x 9.6 in. (30.5 cm x 24.4 cm)ATX Form Factor |
| Back Panel Ports | PS/2 Combo PortDisplayPortWi-Fi / BluetoothLAN PortHD Audio ConnectorsBIOS Flashback ButtonUSB 2.0 PortHDMI PortUSB 3.1 Gen1USB 3.1 Gen2 Type-A COptical S/PDIF OUT |
| Onboard Graphics | 1 x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz*11 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz2Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB |
| Operating System | Support for Windows® 10 64-bitSupport for Windows® 7 64-bit* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU |
| Wifi & Bluetooth | Intel® Dual Band Wireless-AC 92601Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.Supports Dual Mode Bluetooth 2.1, 2.1 EDR, 3.0, 4.0, BLE,4.2, 5.01 x M2_3 slot with E key (Wi-Fi mode)Only support windows 10 64-bit |
| Internal Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector6 x SATA 6Gb/s connectors2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)1 x 4-pin CPU fan connector1 x 4-pin water-pump-fan connector4 x 4-pin system fan connectors1 x TPM module connector1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x Serial Port connector1 x Clear CMOS jumper1 x 2pin LED Power connector2 x 5050 RGB LED strip 12V connectors (JRGB1~2)1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)1 x CORSAIR connector (JCORSAIR1) |
