MSI B450M Pro-VDH DDR4 AMD Motherboard

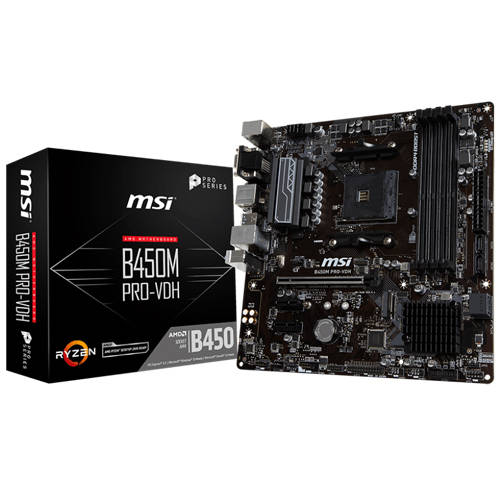

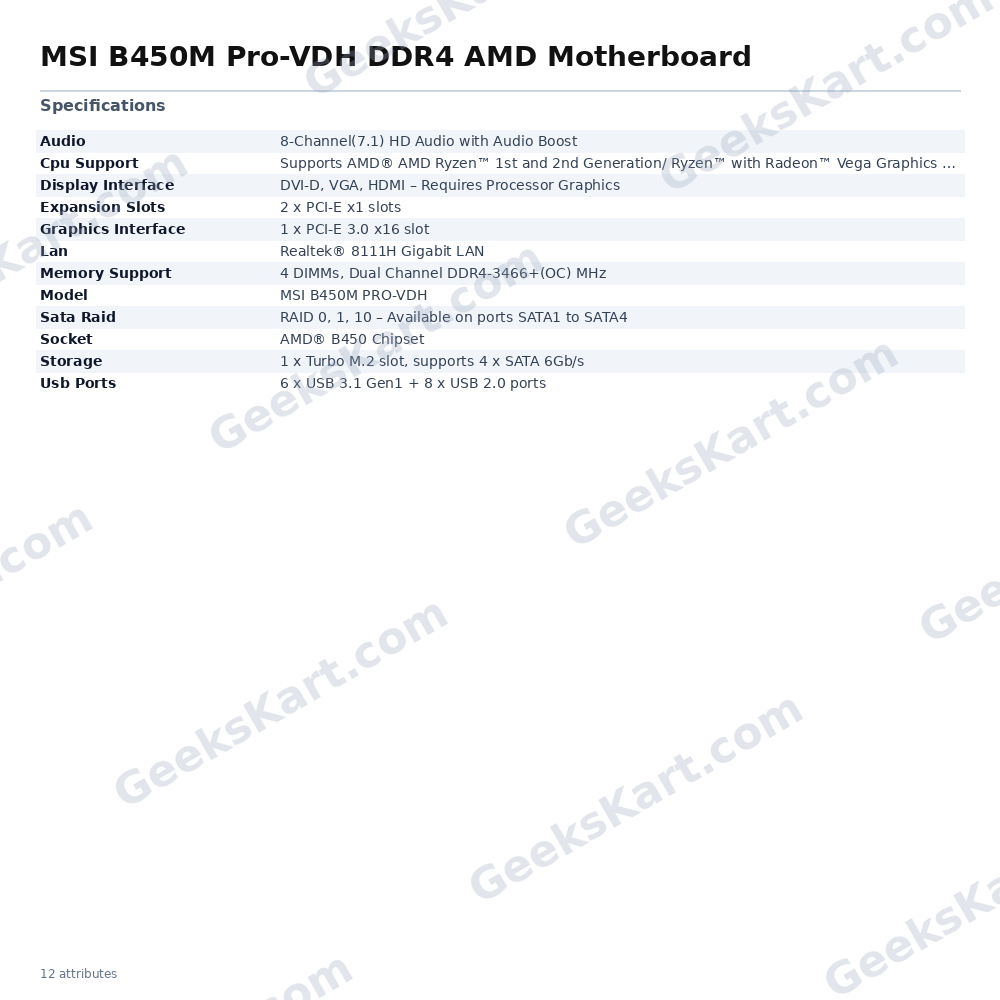

The MSI B450M Pro-VDH is a Micro-ATX motherboard built around the AMD B450 chipset, designed for AMD Socket AM4. It supports AMD Ryzen 1st and 2nd Generation processors as well as Ryzen APUs with Radeon Vega graphics, making it a versatile foundation for budget and mid-range AMD builds. Memory performance is a priority on this board. Four DIMM slots support Dual Channel DDR4 at up to DDR4-3466+ MHz in overclocked mode, giving builders flexibility for both value-tier and higher-frequency RAM kits. MSI’s DDR4 Boost circuitry isolates memory traces to reduce noise and improve signal integrity. Storage is well covered: one Turbo M.2 slot delivers up to 32 Gb/s via PCIe 3.0 for NVMe SSDs, while four SATA 6 Gb/s ports handle conventional drives. RAID 0, 1, and 10 configurations are available across SATA ports 1 through 4 for those who need redundancy or performance striping. Expansion options include one PCIe 3.0 x16 slot for a discrete graphics card and two PCIe x1 slots for additional cards. Connectivity at the rear panel covers 6 × USB 3.1 Gen 1 and 8 × USB 2.0 ports alongside a PS/2 port. Display outputs include HDMI, DVI-D, and VGA — all of which require a Ryzen APU with integrated Radeon graphics. Networking is handled by a Realtek 8111H Gigabit LAN controller. Audio is delivered through an 8-channel (7.1) HD Audio codec enhanced by MSI’s Audio Boost, which uses dedicated audio capacitors and PCB isolation to reduce electrical interference. The onboard EZ Debug LED array simplifies hardware troubleshooting by indicating which component may be preventing POST. MSI’s X-Boost utility can accelerate attached storage and USB devices through software optimisation. Verified Specifications: – Model: MSI B450M PRO-VDH – Chipset: AMD B450 – Socket: AM4 – CPU Compatibility: AMD Ryzen 1st & 2nd Gen; Ryzen with Radeon Vega Graphics – Memory: 4 × DIMM, Dual Channel DDR4 up to DDR4-3466+(OC) MHz – Graphics Slot: 1 × PCIe 3.0 x16 – Expansion: 2 × PCIe x1 – Storage: 1 × Turbo M.2 (PCIe, up to 32 Gb/s), 4 × SATA 6 Gb/s – RAID: 0, 1, 10 (SATA1–SATA4) – Display Output: HDMI, DVI-D, VGA (requires integrated GPU) – USB: 6 × USB 3.1 Gen 1, 8 × USB 2.0 – LAN: Realtek 8111H Gigabit – Audio: 8-Channel (7.1) HD Audio with Audio Boost
