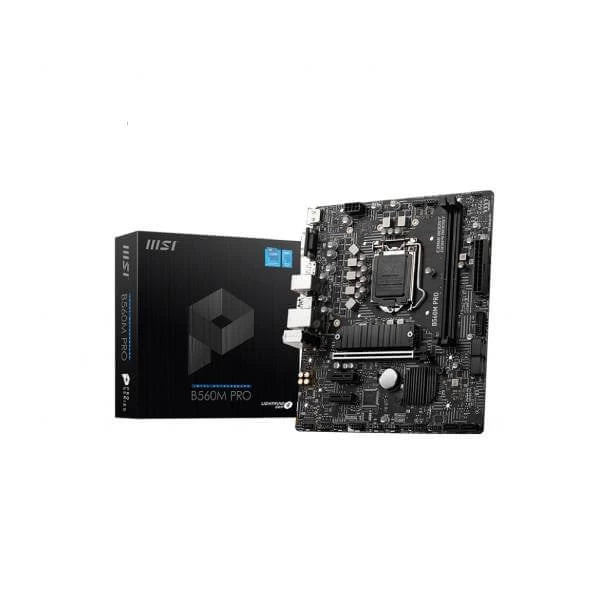

The MSI B560M Pro is a Micro-ATX motherboard built on the Intel B560 chipset, designed to support both 10th Generation and 11th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1200 socket. Its compact 9.3 x 8.0 inch (23.6 x 20.2 cm) mATX footprint makes it well suited for space-efficient builds without sacrificing connectivity or expandability. Memory flexibility is a highlight of this board. Two DDR4 slots accommodate up to 64 GB of non-ECC unbuffered RAM in dual-channel configuration. With 11th Gen CPUs, JEDEC-rated speeds reach 3200 MHz, while XMP overclocking profiles push single-rank sticks up to 5200 MHz and dual-rank configurations beyond 4700 MHz. Storage options are generous: six SATA 6 Gb/s ports handle traditional drives, while the single M.2 (Key M) slot supports PCIe 4.0 x4 speeds when paired with an 11th Gen CPU, or PCIe 3.0 x4 and SATA 6 Gb/s with 10th Gen CPUs. M.2 Shield Frozr thermal management keeps NVMe drives running at consistent temperatures. Networking relies on a Realtek 8125B 2.5 Gbps LAN controller, delivering noticeably faster throughput than standard Gigabit connections for file transfers and low-latency workflows. Audio is handled by a Realtek ALC897 codec providing 7.1-channel High Definition output. The rear panel includes HDMI 2.0b (HDR, 4K 60 Hz), DisplayPort 1.4 (4K 60 Hz), and a legacy VGA port for integrated graphics use. The expansion slot layout offers one PCIe x16 slot from the CPU and two PCIe 3.0 x1 slots from the chipset. USB connectivity spans six USB 2.0 and six USB 3.2 Gen 1 5 Gbps ports across back panel and internal headers. Four EZ Debug LEDs assist with fast boot troubleshooting by pinpointing CPU, DRAM, VGA, or boot device issues. RGB and addressable RGB headers (one 4-pin RGB, one 3-pin RAINBOW) allow lighting customisation. The UEFI AMI BIOS with 256 Mb flash supports ACPI 6.2 and SMBIOS 3.0 with multi-language menus. Key Verified Specifications: – Socket: LGA1200 | Chipset: Intel B560 – CPU Support: 10th & 11th Gen Intel Core, Pentium Gold, Celeron – Memory: 2x DDR4 slots, max 64 GB, up to 5200 MHz (OC, 1DPC 1R) – Storage: 6x SATA 6 Gb/s, 1x M.2 (PCIe 4.0 x4 / PCIe 3.0 x4 or SATA) – LAN: Realtek 8125B 2.5 Gbps – Audio: Realtek ALC897, 7.1-channel HD – Display: HDMI 2.0b, DisplayPort 1.4, VGA – USB: 6x USB 3.2 Gen 1 (5 Gbps), 6x USB 2.0 – Form Factor: mATX, 23.6 x 20.2 cm – Warranty: 3 Years
GIGABYTE H610M K V2 DDR5 Intel Motherboard
₹6,450.00
GIGABYTE B650M H DDR5 AMD Motherboard
₹9,785.00
MSI B560M Pro DDR4 Intel Motherboard
₹10,440.00
The MSI B560M Pro is a compact mATX motherboard for Intel 10th and 11th Gen LGA1200 processors, offering dual-channel DDR4 up to 64 GB, PCIe 4.0 M.2 storage, and a 2.5 Gbps LAN controller in a space-efficient design
Out of stock

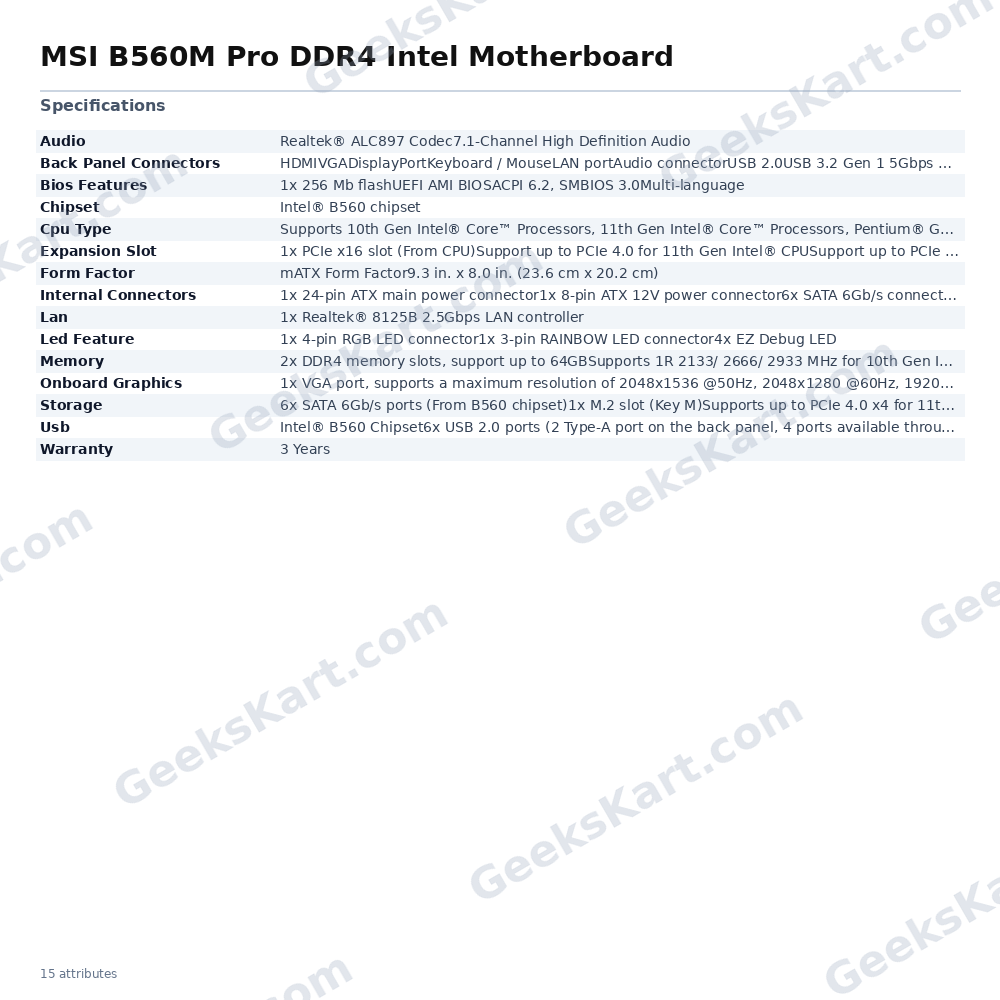

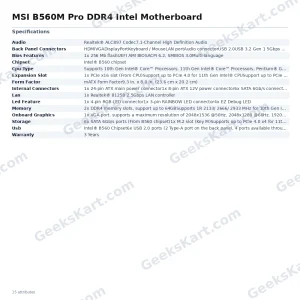

Additional information
| Lan | 1x Realtek® 8125B 2.5Gbps LAN controller |
|---|---|
| Usb | Intel® B560 Chipset6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GBSupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 5200 MHz1DPC 2R Max speed up to 4700+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | 6x SATA 6Gb/s ports (From B560 chipset)1x M.2 slot (Key M)Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)Supports 2242/ 2260/ 2280 storage devicesSupports Intel® Smart Response Technology for Intel Core™ processorsIntel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Led Feature | 1x 4-pin RGB LED connector1x 3-pin RAINBOW LED connector4x EZ Debug LED |
| Bios Features | 1x 256 Mb flashUEFI AMI BIOSACPI 6.2, SMBIOS 3.0Multi-language |
| Expansion Slot | 1x PCIe x16 slot (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPUSupport up to PCIe 3.0 for 10th Gen Intel® CPU2x PCIe 3.0 x1 slots (From B560 chpiset) |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector6x SATA 6Gb/s connectors1x M.2 slot (M-Key)1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector1x Serial port connector1x Tuning Controller Connector |
| Back Panel Connectors | HDMIVGADisplayPortKeyboard / MouseLAN portAudio connectorUSB 2.0USB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 1 5Gbps Type-A |
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | Intel® B560 chipset |
| CPU Type | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsProcessor socket LGA1200 |
