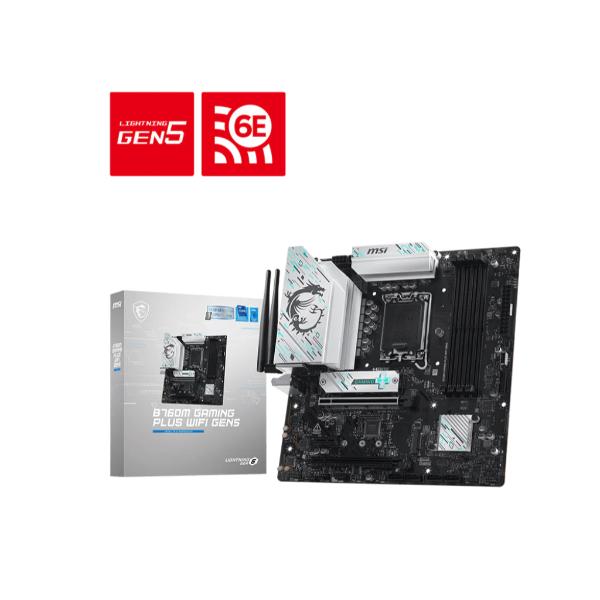

MSI B760M Gaming Plus WiFi6E GEN5 M-ATX Motherboard
MPN B760M-GAMING-PLUS-WIFI-GEN5 · Brand MSI · mATX
MSI B760M Gaming Plus WiFi6E GEN5 M-ATX Motherboard. Highlights: up to 7200+
Inclusive of GST · GST invoice available
Overview
The MSI B760M Gaming Plus WiFi6E GEN5 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA 1700; Chipset: B760; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 7200+; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹16299 subject to availability — confirm at checkout

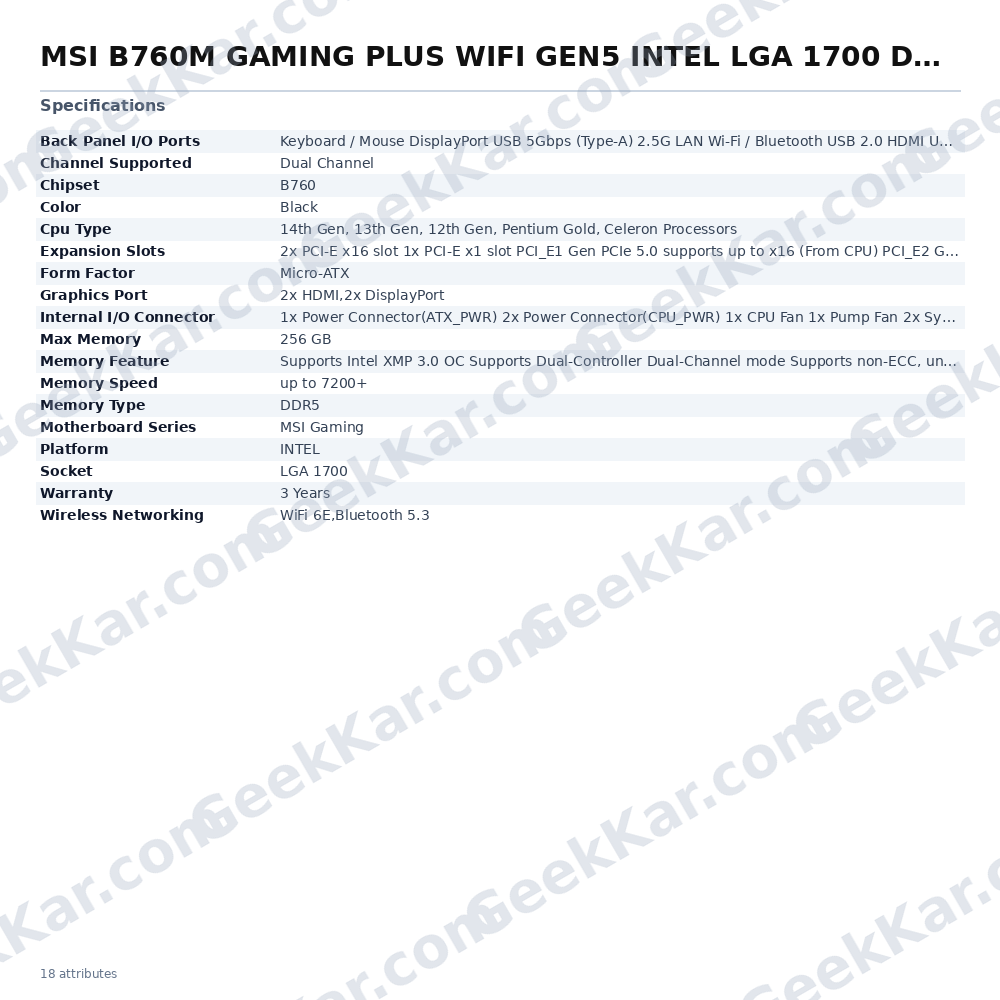

Datasheet
| Memory Speed | up to 7200+ |
|---|---|
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Motherboard Series | MSI Gaming |
| Platform | INTEL |
| Graphics Port | 2x HDMI,2x DisplayPort |
| Memory Feature | Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | Keyboard / Mouse DisplayPort USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI USB 10Gbps (Type-A) Audio Connectors |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
