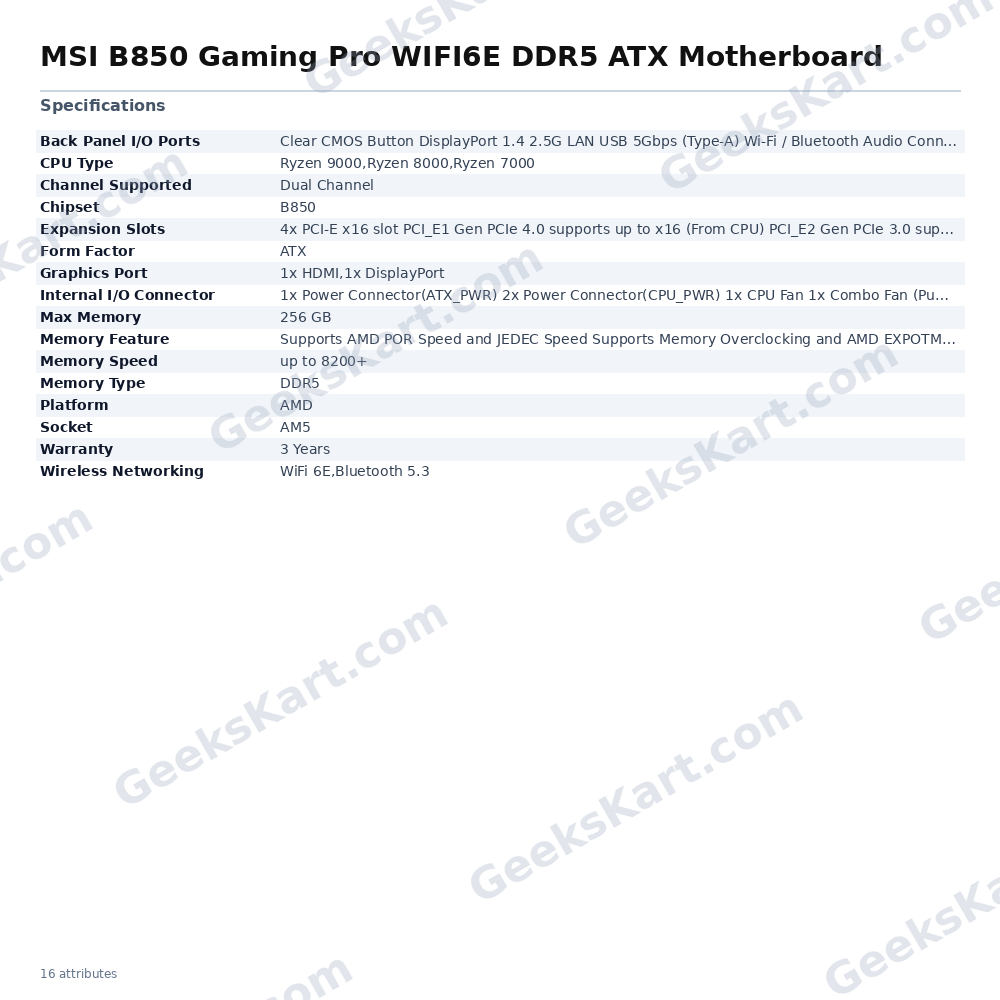

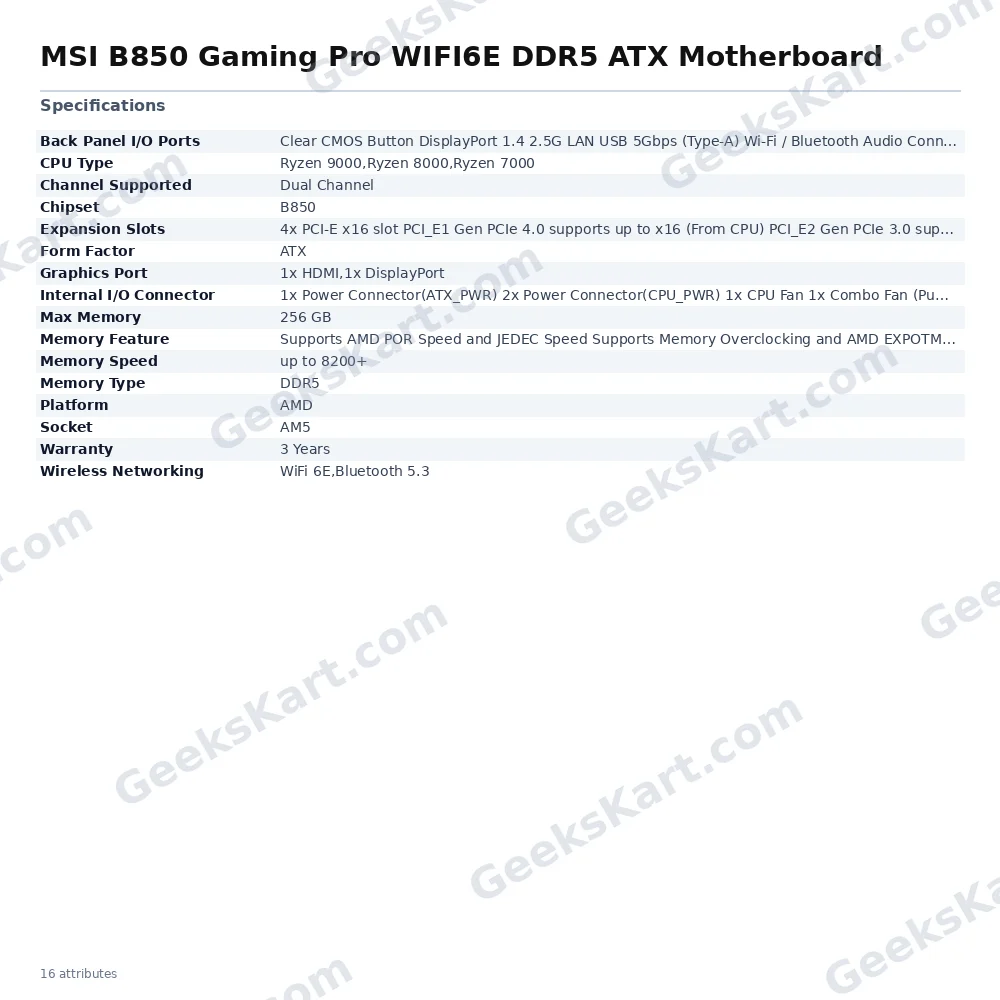

MSI B850 Gaming Pro WIFI6E DDR5 ATX Motherboard

The MSI B850 Gaming Pro WiFi 6E is a full-size ATX motherboard built on the AMD B850 chipset for the AM5 socket, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors. It targets gamers and enthusiast builders who demand robust power delivery, fast storage, and wireless connectivity in a mainstream platform. At the heart of the board’s power design is a 12+2+1 Duet Rail power system featuring 55A DrMOS components and dual 8-pin CPU power connectors. This VRM configuration is paired with MSI’s Core Boost and Memory Boost technologies to help the platform sustain demanding gaming and workload scenarios. The PCB itself is a 6-layer design using 2 oz thickened copper traces, which MSI states improves signal integrity and heat dissipation across the board. For memory, the B850 Gaming Pro WiFi 6E supports DDR5 in dual-channel configuration, with compatibility ranging from JEDEC standard speeds up to 8200+ MT/s in overclocked mode. The board is also compatible with AMD EXPO memory profiles, CUDIMMs (in Clock Driver bypass mode), and non-ECC unbuffered DIMMs, with a maximum supported capacity of 256 GB. Storage is handled by a Lightning Gen 5 x4 M.2 slot, enabling next-generation NVMe SSD speeds. The primary PCIe x16 slot runs at PCIe 4.0 x16 for Ryzen 9000 and 7000 series processors. Additional expansion is provided by two PCIe 3.0 x1 slots and one PCIe 4.0 x4 slot from the chipset. All M.2 slots are covered by MSI’s M.2 Shield Frozr thermal solution, which includes heatsink pads to manage SSD temperatures. Thermal management on the VRM side is handled by the Frozr Guard heatsink system, which incorporates MOSFET thermal pads rated at 7 W/mK and additional choke thermal pads for sustained operation. Connectivity is a strong suit: the board includes a 2.5G Intel-class LAN port alongside WiFi 6E (802.11ax tri-band) and Bluetooth 5.3 for wireless networking. The rear I/O panel provides USB 10 Gbps Type-A and Type-C ports, USB 5 Gbps Type-A ports, HDMI 2.1 and DisplayPort 1.4 video outputs, audio connectors, a Flash BIOS button, and a Clear CMOS button. Internal I/O includes front-panel USB 10 Gbps Type-C, four USB 2.0 headers, two USB 5 Gbps Type-A headers, three ARGB V2 headers, one standard RGB header, and five fan/pump headers. The EZ DIY suite — comprising EZ PCIe Clip II, EZ M.2 Clip II, and EZ-Conn Design — simplifies tool-free installation. A TPM 2.0 header is also present. Verified Specifications: – Socket: AM5 – Chipset: AMD B850 – Form Factor: ATX – CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series – Memory: DDR5 Dual Channel, up to 256 GB, up to 8200+ MT/s (OC), AMD EXPO support – Primary PCIe Slot: PCIe 4.0 x16 (from CPU, Ryzen 9000/7000) – M.2: Lightning Gen 5 x4 (PCIe 5.0) – LAN: 2.5G – Wireless: WiFi 6E + Bluetooth 5.3 – Rear USB: 10 Gbps Type-A, 10 Gbps Type-C, 5 Gbps Type-A – Video Output: HDMI, DisplayPort 1.4 – VRM: 12+2+1 Duet Rail, 55A DrMOS – PCB: 6-layer, 2 oz copper – Warranty: 3 Years
