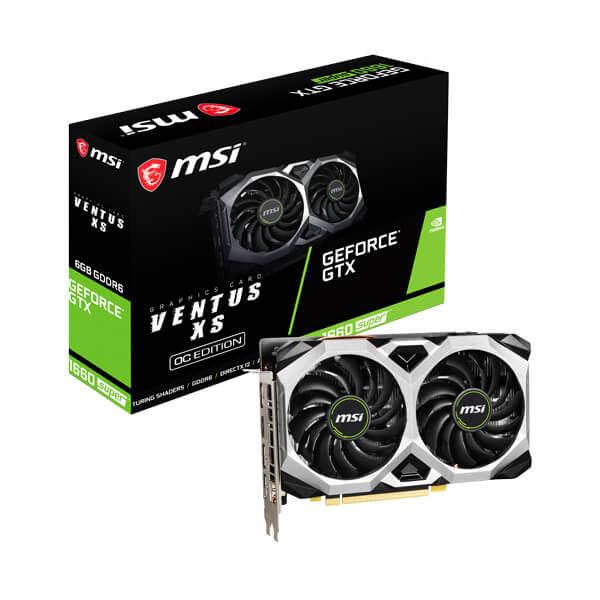

MSI GeForce GTX 1660 Super Ventus XS OC 6GB Nvidia Graphic Card
MPN MSI-GEFORCE-GTX-1660-SUPER-VENTUS-XS-OC · Brand MSI
Features of MSI GeForce GTX 1660 Super Ventus XS OC 6GB Nvidia Graphic Card DUAL FAN THERMAL DESIGN Dual fans covers more area of heatsink to take heat away more efficiently. TORX FAN 2.0 Award-winning fan design combining two different fin designs for cool & quiet gaming. SOLID BLACK BACKPLATE Increases toughness of the card to prevent bending while complementing the sleek MSI GAMING design. OC PERFORMANCE MSI OC graphics cards are equipped with higher clock speeds out of the box for increa
Inclusive of GST · GST invoice available
Overview
Features of MSI GeForce GTX 1660 Super Ventus XS OC 6GB Nvidia Graphic Card
DUAL FAN THERMAL DESIGN
Dual fans covers more area of heatsink to take heat away more efficiently.
TORX FAN 2.0
Award-winning fan design combining two different fin designs for cool & quiet gaming.
SOLID BLACK BACKPLATE
Increases toughness of the card to prevent bending while complementing the sleek MSI GAMING design.
OC PERFORMANCE
MSI OC graphics cards are equipped with higher clock speeds out of the box for increased performance.
MSI AFTERBURNER
The ultimate overclocking software with advanced control options and real-time hardware monitor.
VR READY
Certified to provide the performance required for a smooth experience in your VR adventures.
NVIDIA® G-SYNC®
Gives you more of what you want in a gaming experience. Incredibly smooth, tear-free gameplay at refresh rates up to 240 H

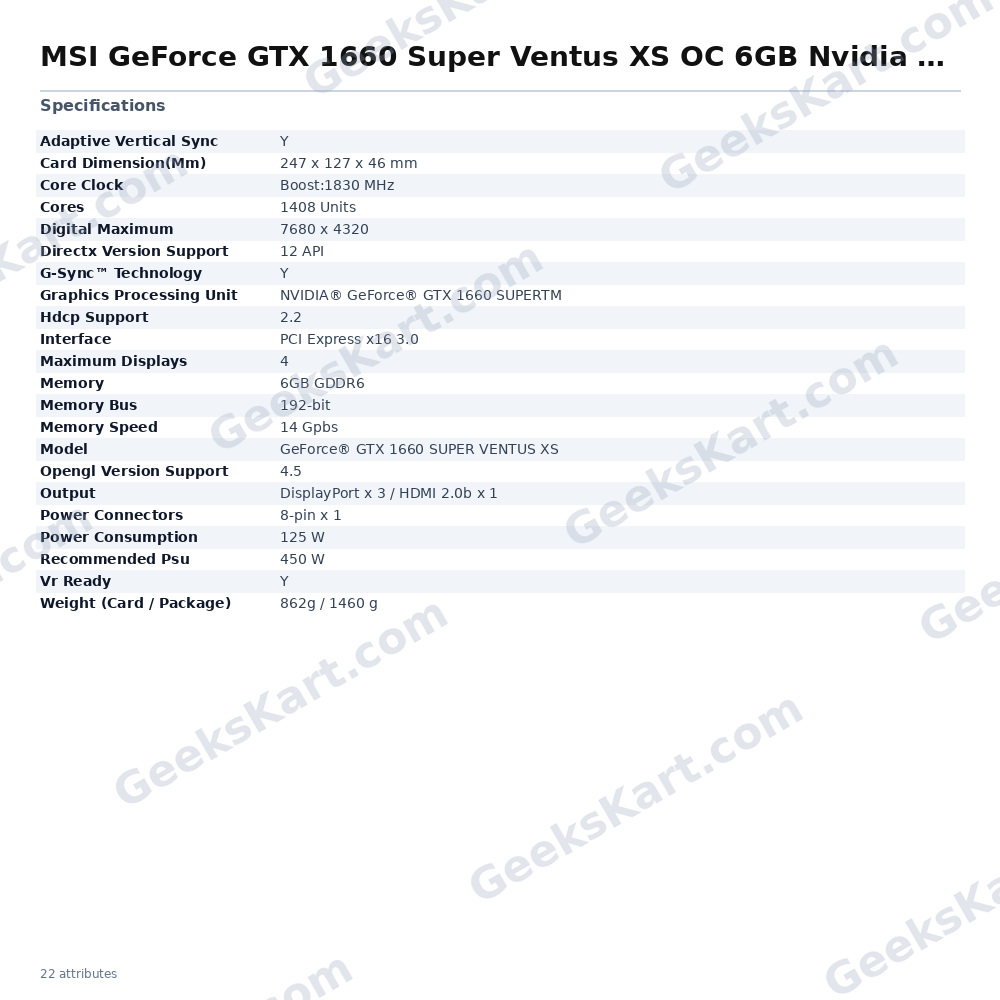

Specifications of MSI GeForce GTX 1660 Super Ventus XS OC 6GB Nvidia Graphic Card
| Model Name | GeForce® GTX 1660 SUPER VENTUS XS |
| Graphics Processing Unit | NVIDIA® GeForce® GTX 1660 SUPERTM |
| Interface | PCI Express x16 3.0 |
| Cores | 1408 Units |
| Core Clock | Boost:1830 MHz |
| Memory Speed | 14 Gpbs |
| Memory | 6GB GDDR6 |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3 / HDMI 2.0b x 1 |
| HDCP Support | 2.2 |
| Power consumption | 125 W |
| Power connectors | 8-pin x 1 |
| Recommended PSU | 450 W |
| Card Dimension(mm) | 247 x 127 x 46 mm |
| Weight (Card / Package) | 862g / 1460 g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.5 |
| Multi-GPU Technology | N/A |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-SYNC™ technology | Y |
| Adaptive Vertical Sync | Y |
| Digital Maximum | 7680 x 4320 |
Datasheet
| Cores | 1408 Units |
|---|---|
| Memory Speed | 14 Gpbs |
| Interface | PCI Express x16 3.0 |
| Recommended PSU | 450 W |
| Power Consumption | 125 W |
| Memory | 6GB GDDR6 |
| Output | DisplayPort x 3 / HDMI 2.0b x 1 |
| Vr Ready | Y |
| Core Clock | Boost:1830 MHz |
| Memory Bus | 192-bit |
| Model | GeForce® GTX 1660 SUPER VENTUS XS |
| Hdcp Support | 2.2 |
| Digital Maximum | 7680 x 4320 |
| Maximum Displays | 4 |
| Power Connectors | 8-pin x 1 |
| Card Dimension(Mm) | 247 x 127 x 46 mm |
| G-Sync™ Technology | Y |
| Adaptive Vertical Sync | Y |
| Opengl Version Support | 4.5 |
| Directx Version Support | 12 API |
| Weight (Card / Package) | 862g / 1460 g |
| Graphics Processing Unit | NVIDIA® GeForce® GTX 1660 SUPERTM |
