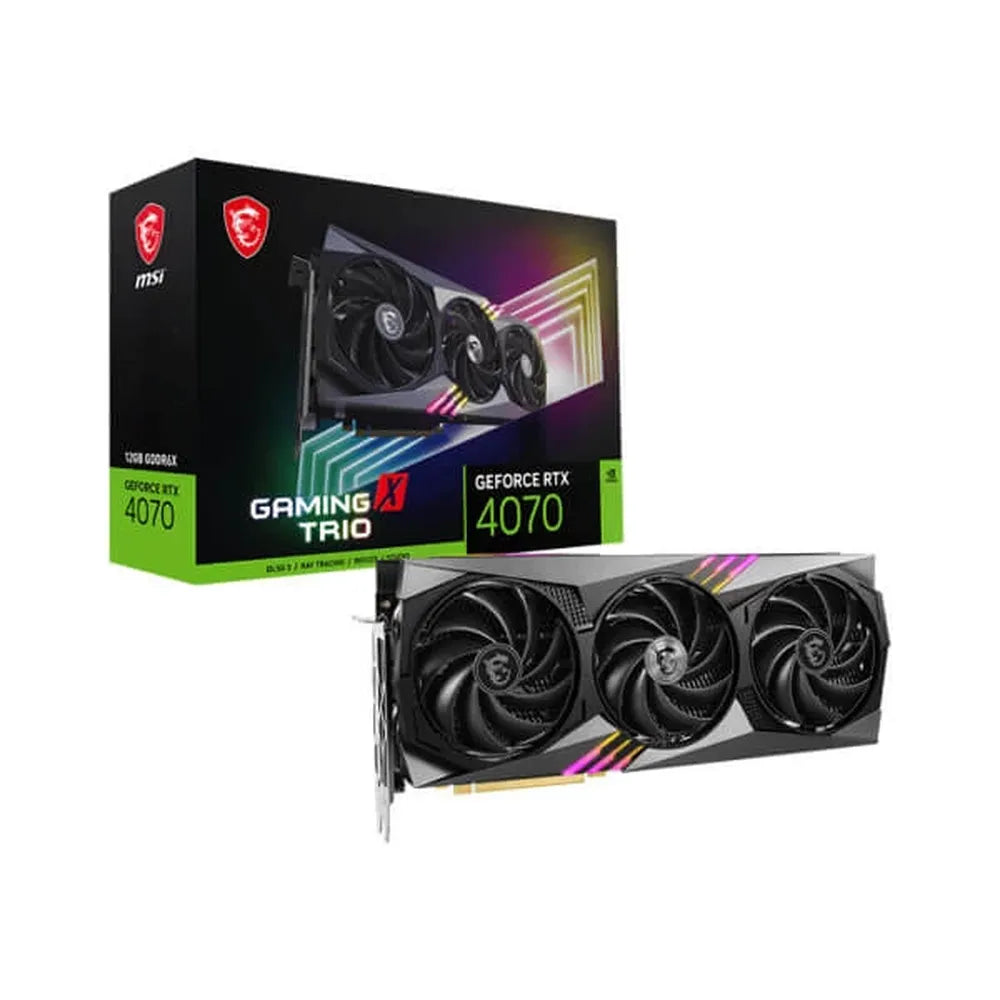

MSI GeForce RTX 4070 Gaming X Trio 12GB Nvidia Graphic Card
MPN GEFORCE-RTX-4070-GAMING-X-TRIO · Brand MSI
Features Of MSI GeForce RTX 4070 Gaming X Trio 12GB Get equipped for stellar gaming and creating with the NVIDIA ® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. Boost Clock / Memory Speed 2610 MHz (GAMING & SILENT Mode) / 21 Gbps 12GB GDDR6X DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specifi
Inclusive of GST · GST invoice available
Overview
Features Of MSI GeForce RTX 4070 Gaming X Trio 12GB
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2610 MHz (GAMING & SILENT Mode) / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications Of MSI GeForce RTX 4070 Gaming X Trio 12GB:
| MODEL NAME | MSI GeForce RTX 4070 Gaming X Trio 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | TBD |
| CUDA® CORES | 5888 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |
| OUTPUT | isplayPort x 3(v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 215 W |
| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | TBD |
| CARD DIMENSION (MM) | 338 x 141 x 52 mm |
| WEIGHT (CARD / PACKAGE) | 1214 g / 2143 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |

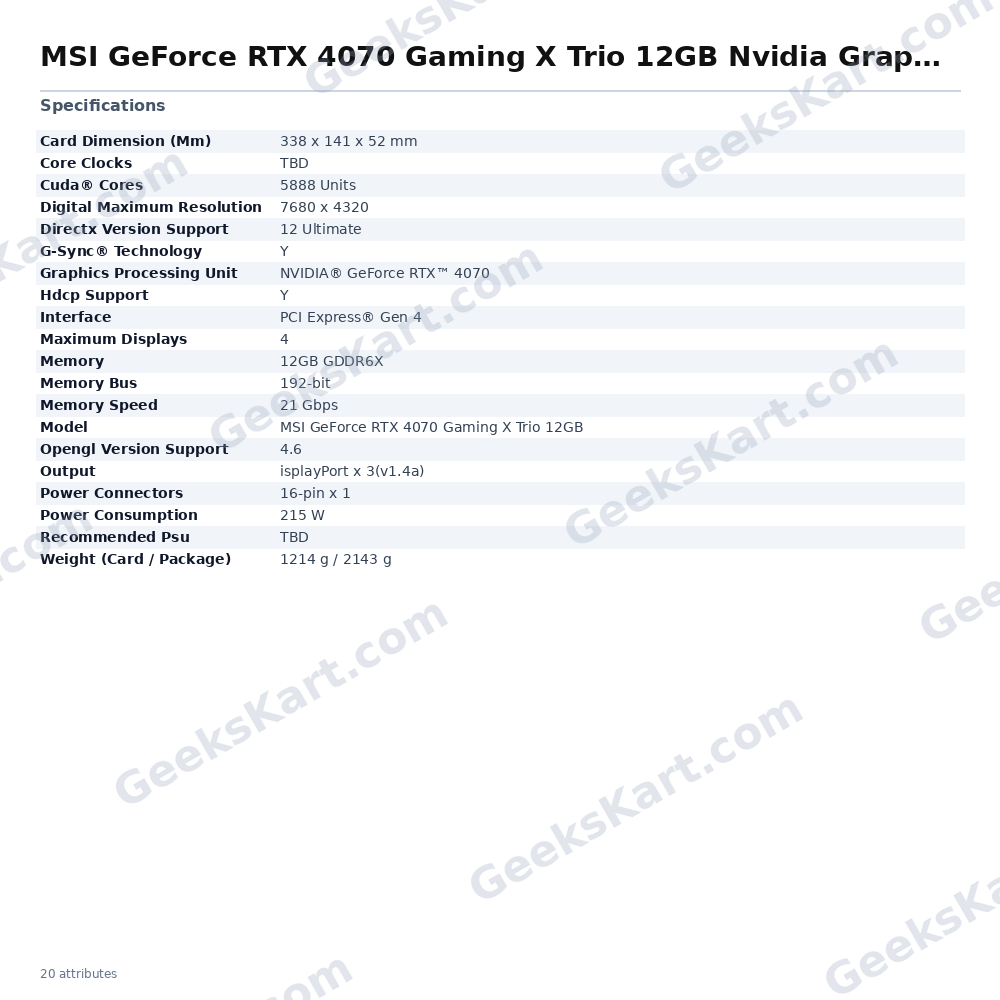

Datasheet
| Memory Speed | 21 Gbps |
|---|---|
| Interface | PCI Express® Gen 4 |
| Recommended PSU | TBD |
| Power Consumption | 215 W |
| Memory | 12GB GDDR6X |
| Output | isplayPort x 3(v1.4a) |
| Memory Bus | 192-bit |
| Model | MSI GeForce RTX 4070 Gaming X Trio 12GB |
| Core Clocks | TBD |
| Cuda® Cores | 5888 Units |
| Hdcp Support | Y |
| Maximum Displays | 4 |
| Power Connectors | 16-pin x 1 |
| Card Dimension (Mm) | 338 x 141 x 52 mm |
| G-Sync® Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 Ultimate |
| Weight (Card / Package) | 1214 g / 2143 g |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4070 |
| Digital Maximum Resolution | 7680 x 4320 |
