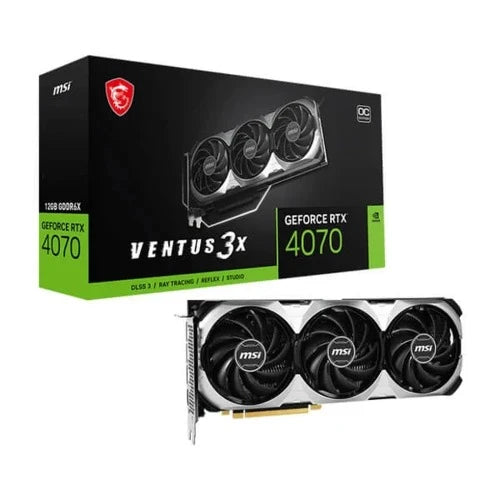

MSI GeForce RTX 4070 Ventus 3X OC 12GB Nvidia Graphic Card
MPN 4070-VENTUS-3X-OC · Brand MSI
Features Of MSI GeForce RTX 4070 Ventus 3X OC 12GB Get equipped for stellar gaming and creating with the NVIDIA ® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. Boost Clock / Memory Speed Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz 21 Gbps 12GB GDDR6X DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Ref
Inclusive of GST · GST invoice available
Overview
Features Of MSI GeForce RTX 4070 Ventus 3X OC 12GB
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz
21 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
REVOLUTIONARY TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
Specifications Of MSI GeForce RTX 4070 Ventus 3X OC 12GB
| MODEL NAME | MSI GeForce RTX 4070 Ventus 3X OC 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2520 MHz (MSI Center) |
| Boost: 2505 MHz | |
| CUDA® CORES | 5888 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 200W |
| POWER CONNECTORS | 8pin x 1 |
| RECOMMENDED PSU | TBD |
| CARD DIMENSION (MM) | 308 x 120 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 811g/1152g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |

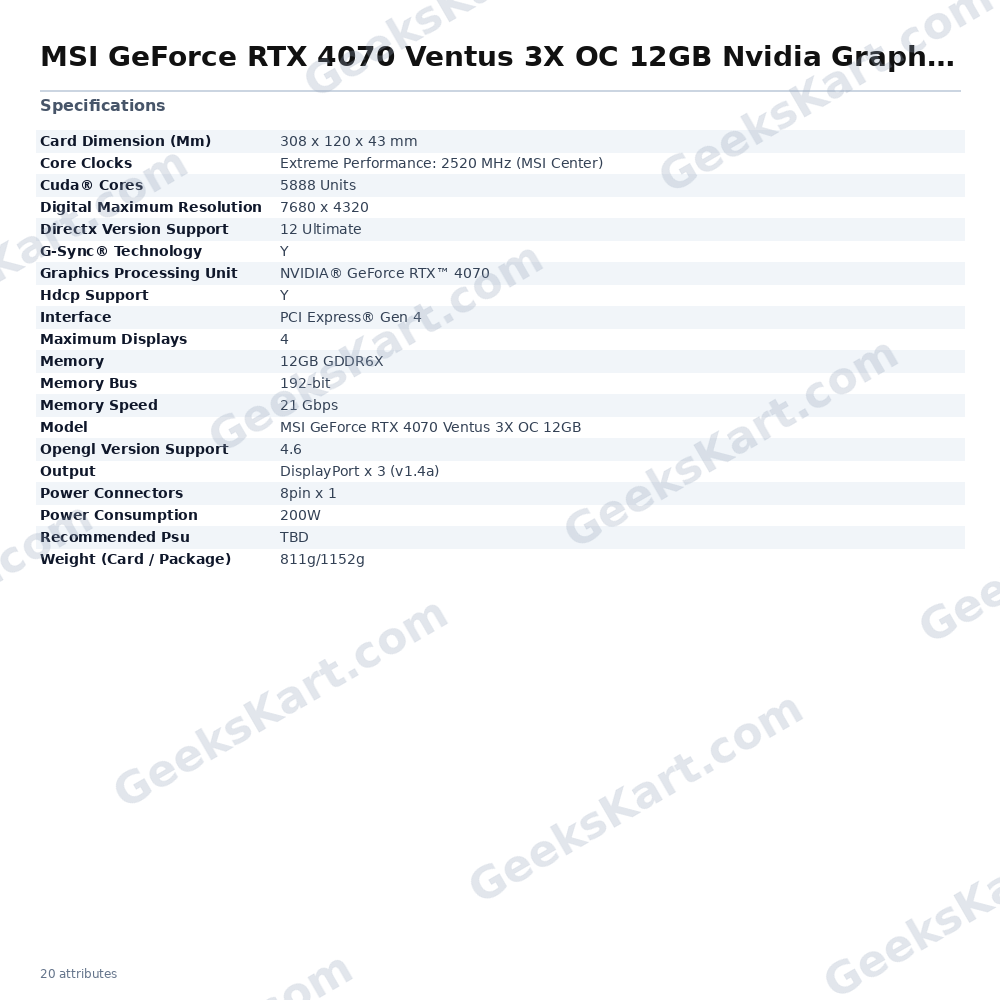

Datasheet
| Memory Speed | 21 Gbps |
|---|---|
| Interface | PCI Express® Gen 4 |
| Recommended PSU | TBD |
| Power Consumption | 200W |
| Memory | 12GB GDDR6X |
| Output | DisplayPort x 3 (v1.4a) |
| Memory Bus | 192-bit |
| Model | MSI GeForce RTX 4070 Ventus 3X OC 12GB |
| Core Clocks | Extreme Performance: 2520 MHz (MSI Center) |
| Cuda® Cores | 5888 Units |
| Hdcp Support | Y |
| Maximum Displays | 4 |
| Power Connectors | 8pin x 1 |
| Card Dimension (Mm) | 308 x 120 x 43 mm |
| G-Sync® Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 Ultimate |
| Weight (Card / Package) | 811g/1152g |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4070 |
| Digital Maximum Resolution | 7680 x 4320 |
