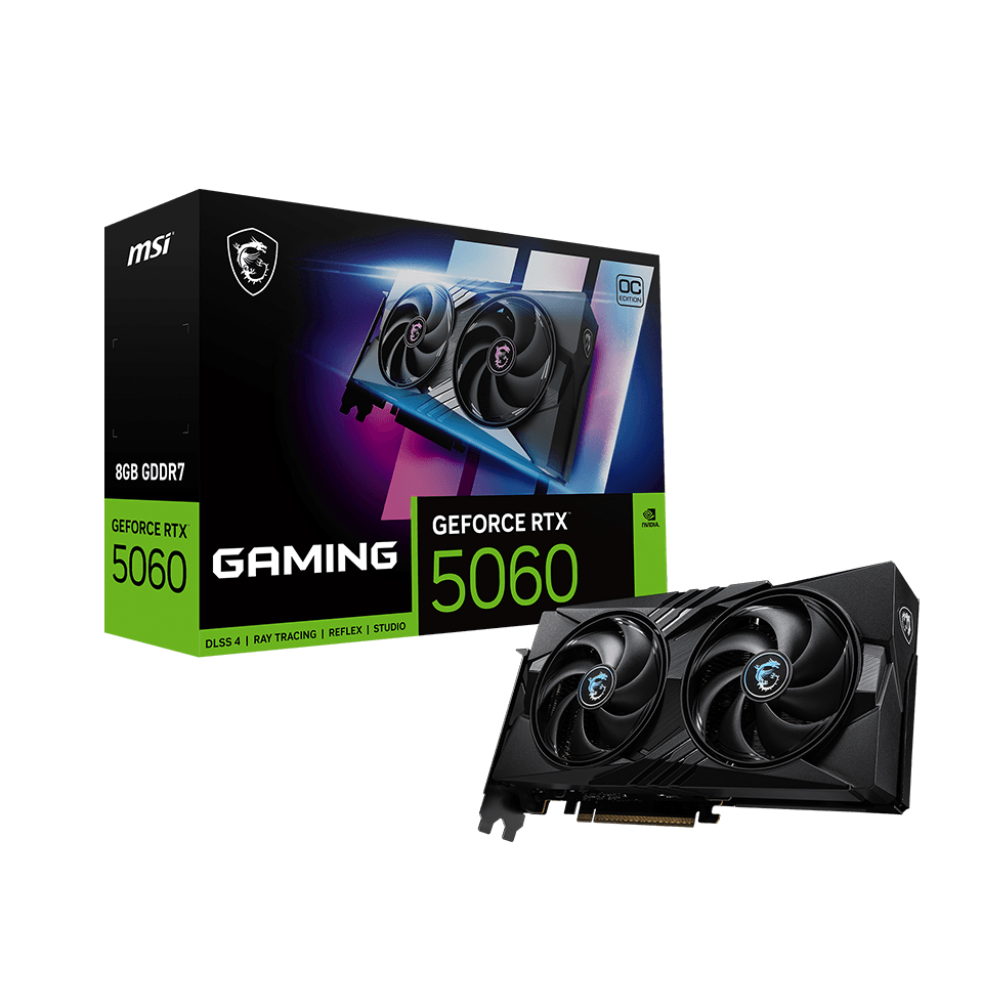

MSI GeForce RTX 5060 Gaming OC 8GB Nvidia Graphic Card

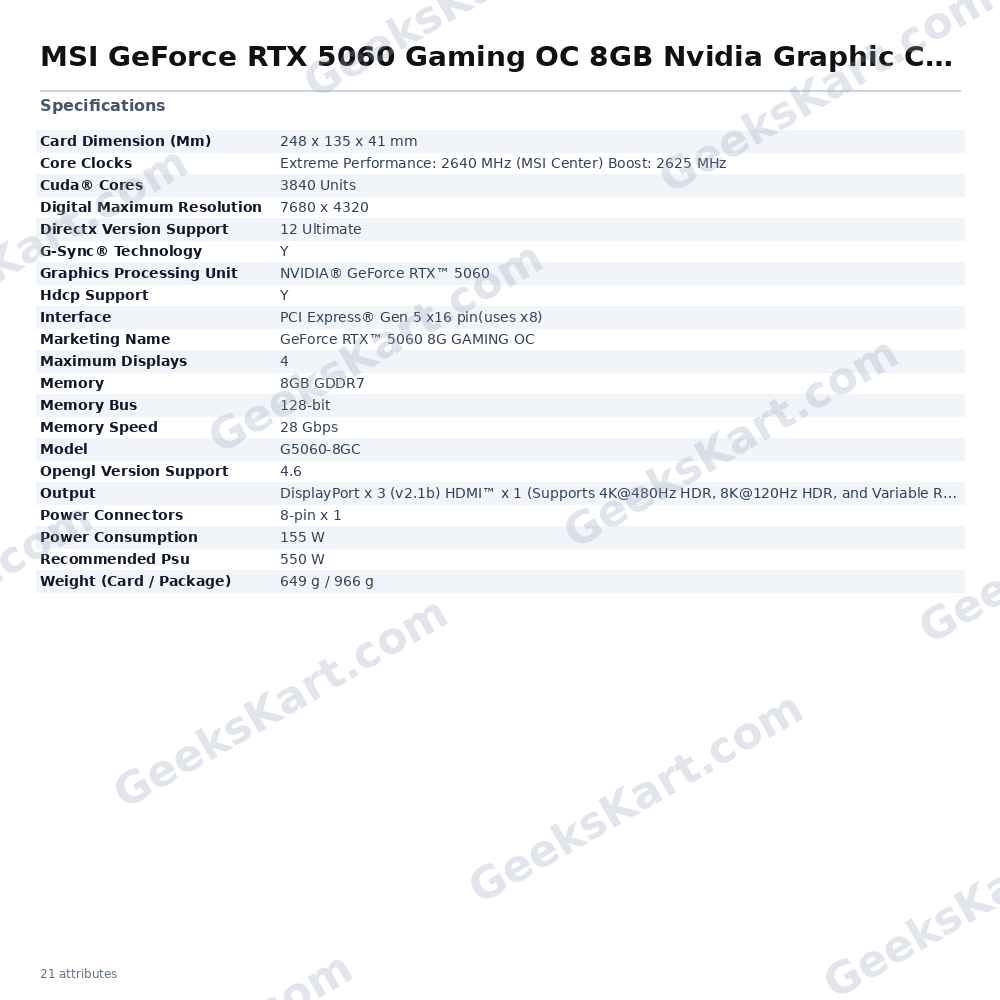

The MSI GeForce RTX 5060 Gaming OC 8GB is a mid-range discrete graphics card built on NVIDIA’s Blackwell architecture and equipped with DLSS 4 support. It carries the model designation G5060-8GC and features 3840 CUDA cores with a boost clock of 2625 MHz, extendable to 2640 MHz via MSI Center’s Extreme Performance mode. The card uses 8 GB of GDDR7 memory operating at 28 Gbps over a 128-bit memory bus, offering a balanced combination of bandwidth and capacity for 1080p and 1440p gaming workloads. Cooling is handled by MSI’s TWIN FROZR 10 system, which pairs the STORMFORCE fan design — featuring seven fan blades with claw texturing and a circular arc profile — with a nickel-plated copper baseplate that rapidly draws heat away from the GPU die and memory modules. Square-profile Core Pipes maximise surface contact with the baseplate before transferring heat across the heatsink array. The WAVE-CURVED 3.0 fan shroud geometry further refines airflow efficiency by tuning wave-edge dimensions around the fan motor and low-velocity zones. A reinforcing metal backplate with exhaust vents and thermal pads rounds out the thermal solution. The card connects via a PCIe Gen 5 x16 slot (operating electrically at x8) and draws 155 W through a single 8-pin power connector, with a recommended PSU of 550 W. Display output is provided by three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays at a digital maximum resolution of 7680 × 4320. HDMI output is rated for 4K at 480 Hz HDR and 8K at 120 Hz HDR, with Variable Refresh Rate support. The card also supports G-SYNC, HDCP, DirectX 12 Ultimate, and OpenGL 4.6. Physical dimensions are 248 × 135 × 41 mm with a card weight of 649 g. MSI Center software enables real-time monitoring and tuning, while MSI Afterburner provides granular overclocking control. Verified Specifications: – GPU: NVIDIA GeForce RTX 5060 (Blackwell) – CUDA Cores: 3840 – Memory: 8 GB GDDR7, 128-bit bus, 28 Gbps – Boost Clock: 2625 MHz (2640 MHz Extreme Performance via MSI Center) – TDP: 155 W | Power Connector: 1 × 8-pin | Recommended PSU: 550 W – Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b (4K@480Hz / 8K@120Hz HDR) – Interface: PCIe Gen 5 x16 (x8 electrical) – DirectX 12 Ultimate | OpenGL 4.6 | G-SYNC | Max 4 displays – Dimensions: 248 × 135 × 41 mm | Weight: 649 g
