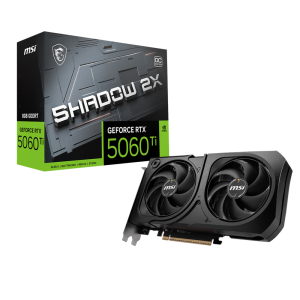

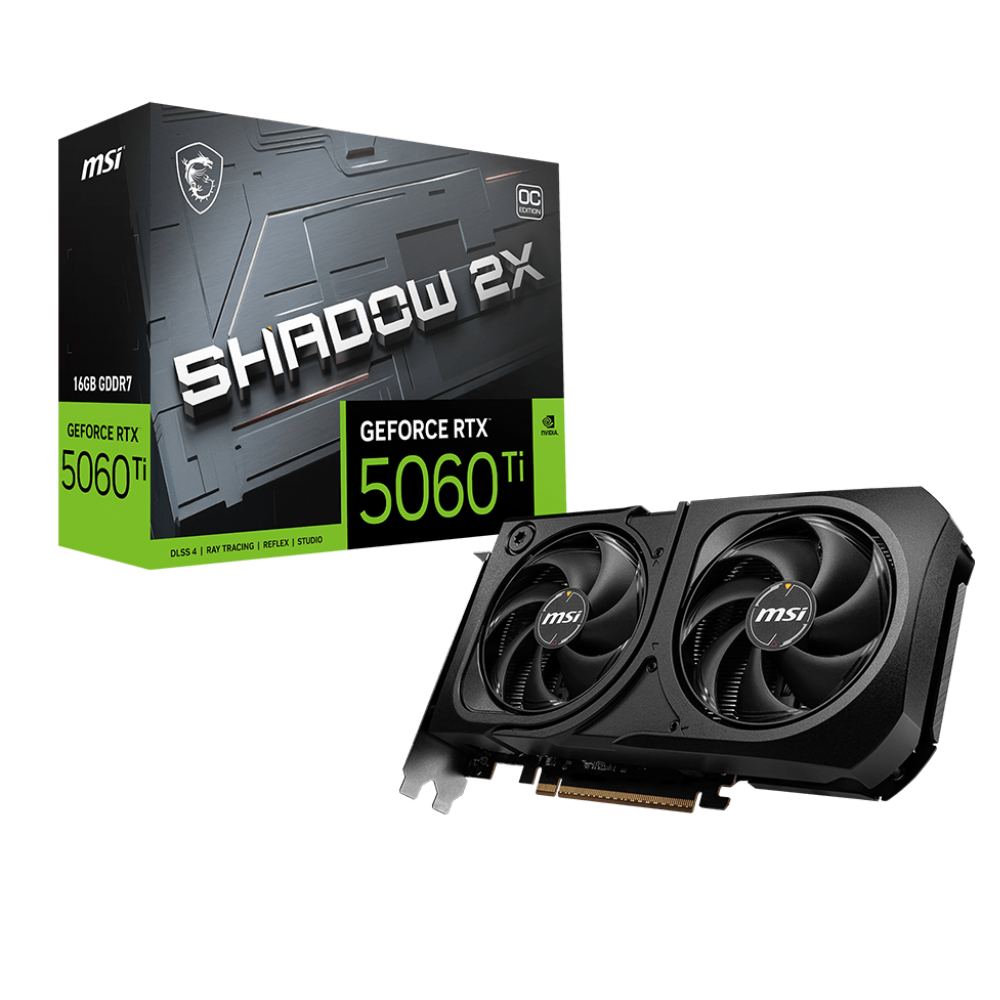

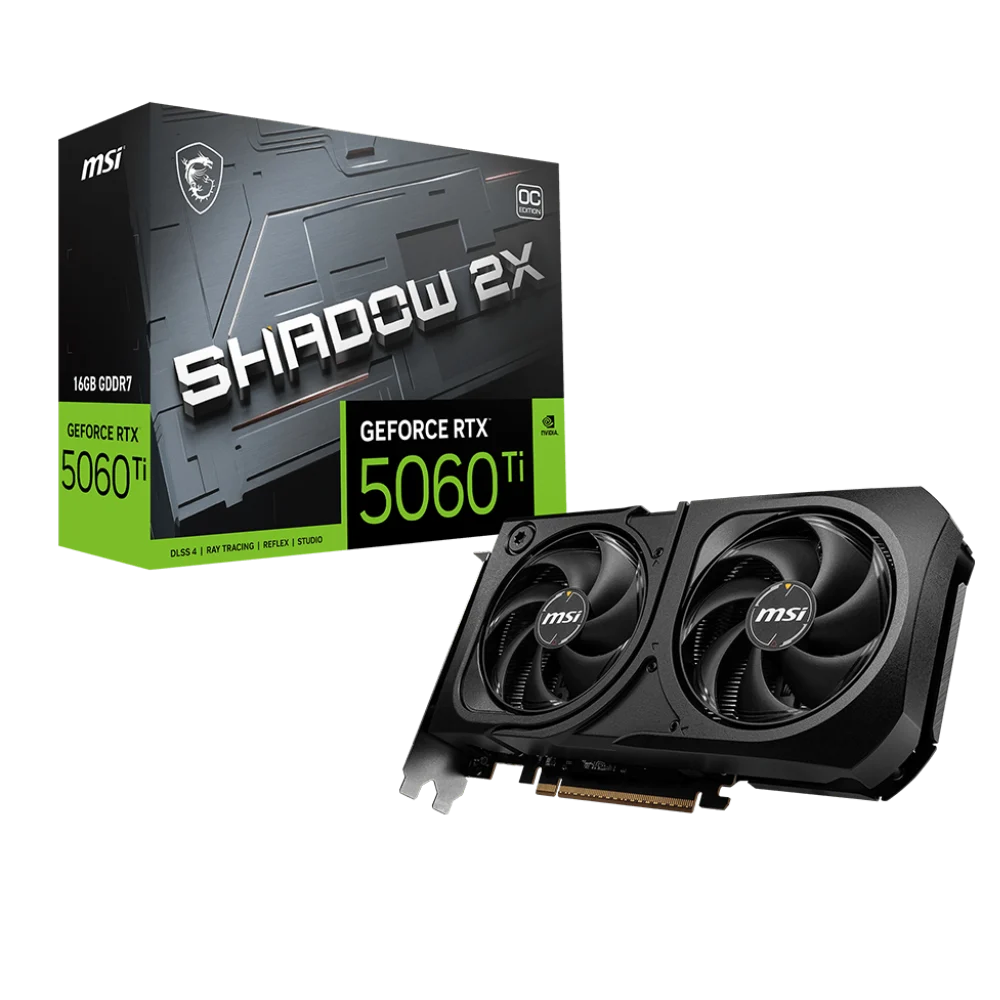

MSI GeForce RTX 5060 Ti Shadow 2X OC Plus 16GB Nvidia Graphic Card

The MSI GeForce RTX 5060 Ti Shadow 2X OC Plus is a performance-focused graphics card built around the NVIDIA GeForce RTX 5060 Ti GPU. Designed for gamers who want capable hardware without unnecessary complexity, the Shadow series strips things back to the essentials while retaining the thermal and connectivity features that matter most during extended gaming sessions. At the heart of the card are 4608 CUDA cores running at a boost clock of 2602 MHz, with an extreme performance mode reaching 2617 MHz when enabled via MSI Center software. The 16 GB GDDR7 frame buffer operates across a 128-bit memory bus at 28 Gbps, providing ample headroom for high-resolution textures and modern rendering workloads. The card connects via PCI Express Gen 5 x16 (electrical x8), making it forward-compatible with current and upcoming platform generations. Cooling is handled by a dual-fan configuration using MSI’s STORMFORCE fans, each featuring seven blades with a claw-texture surface designed to enhance air pressure and concentrate airflow over the large heatsink beneath. Heat pipes draw thermal energy away from the GPU die efficiently. MSI’s ZERO FROZR technology allows both fans to stop entirely under light loads, eliminating fan noise when active cooling is unnecessary — they resume automatically once temperatures rise during gaming. A reinforcing backplate with an integrated airflow vent allows exhaust air to pass through directly, assisting overall thermal management. Display outputs consist of three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC, Gaming VRR, and HDR. Up to four displays can be connected simultaneously. G-SYNC compatibility, HDCP support, DirectX 12 Ultimate, and OpenGL 4.6 are all confirmed. Maximum digital resolution reaches 7680 × 4320. Power draw is rated at 180 W, supplied through a single 8-pin connector. MSI recommends a 600 W power supply unit. The card measures 226 × 126 × 41 mm and weighs 578 g. Verified Specifications: – GPU: NVIDIA GeForce RTX 5060 Ti – CUDA Cores: 4608 – Memory: 16 GB GDDR7, 128-bit bus, 28 Gbps – Boost Clock: 2602 MHz | Extreme Performance (MSI Center): 2617 MHz – Interface: PCIe Gen 5 x16 (uses x8) – Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b – Max Resolution: 7680 × 4320 | Max Displays: 4 – TDP: 180 W | Power Connector: 8-pin × 1 | Recommended PSU: 600 W – Dimensions: 226 × 126 × 41 mm | Card Weight: 578 g – DirectX: 12 Ultimate | OpenGL: 4.6 | G-SYNC: Yes | HDCP: Yes – Model Number: G506T-16S2CP
