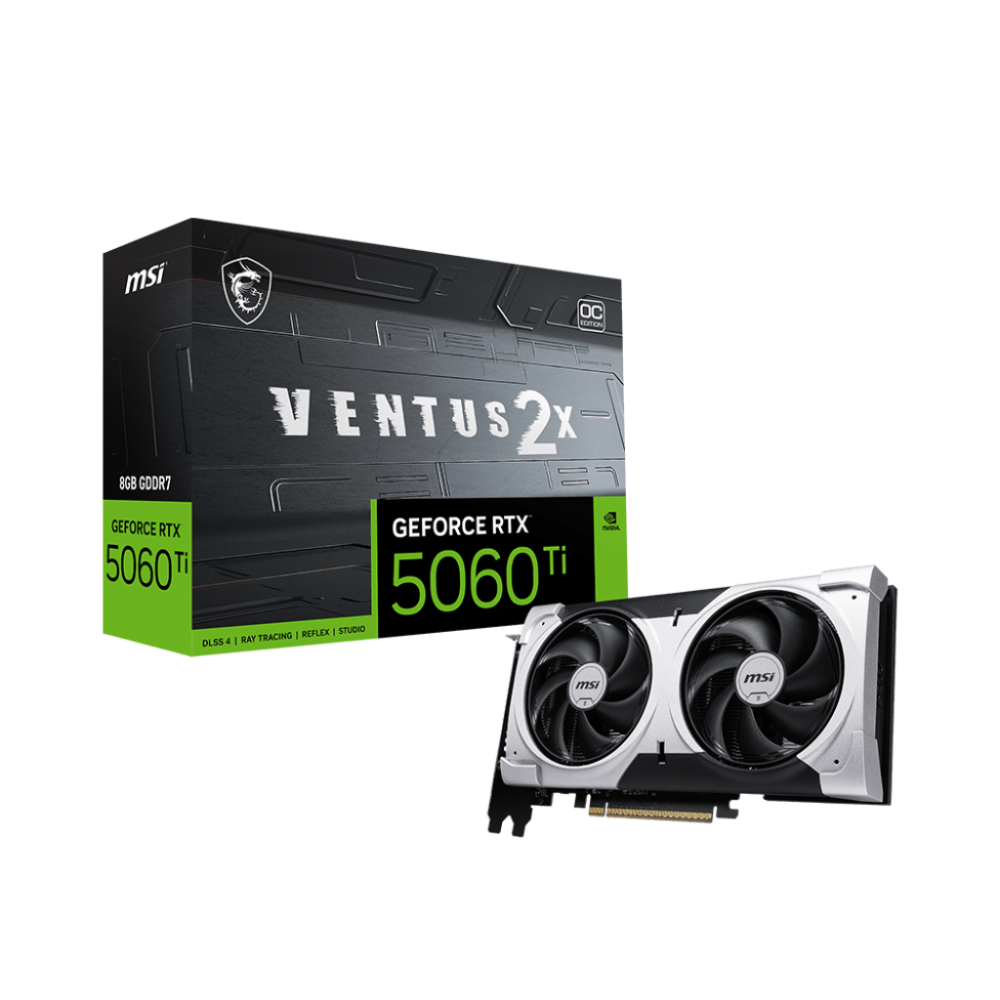

Features of MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 8GB Nvidia Graphic Card
SFF-Ready Enthusiast GeForce Card
Core Clock:
Extreme Performance: 2617 MHz (MSI Center) / Boost: 2602 MHz
STORMFORCE FAN:
Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
Metal Backplate:
A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Center:
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
STORMFORCE FAN
Versatile and High-performing, the STORMFORCE Fan features seven blades with a claw texture that enhances air pressure. A circular are concentrates airflow and delivers exceptional cooling efficiency, minimal noise, and remarkable overall performance.
Heat PIPES
Designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
METAL BACKPLATE
A sturdy metal backplate helps to strengthen the graphics card while airflow vents allow exhaust air to pass through, effectively reducing excess heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

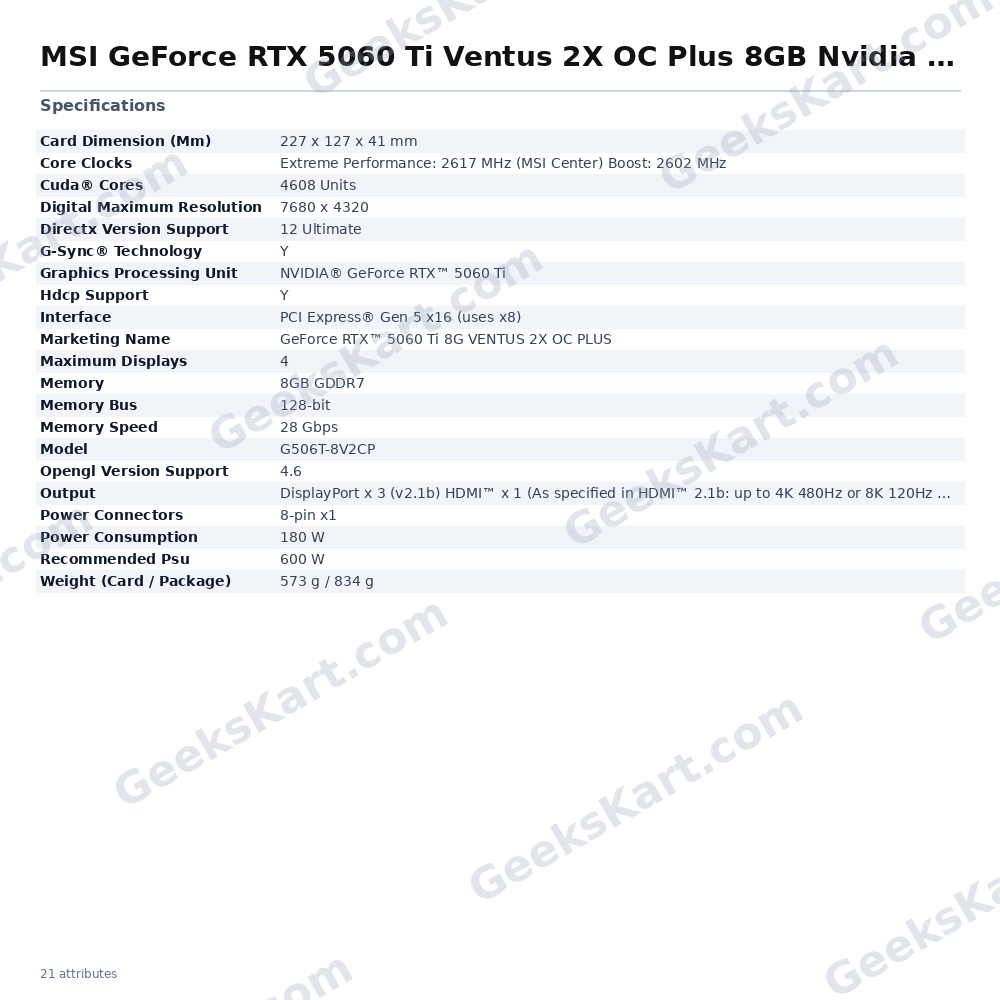

Specification of MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 8GB Nvidia Graphic Card
| Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS |
| Model Name | G506T-8V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 180 W |
| Power connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 227 x 127 x 41 mm |
| Weight (Card / Package) | 573 g / 834 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
