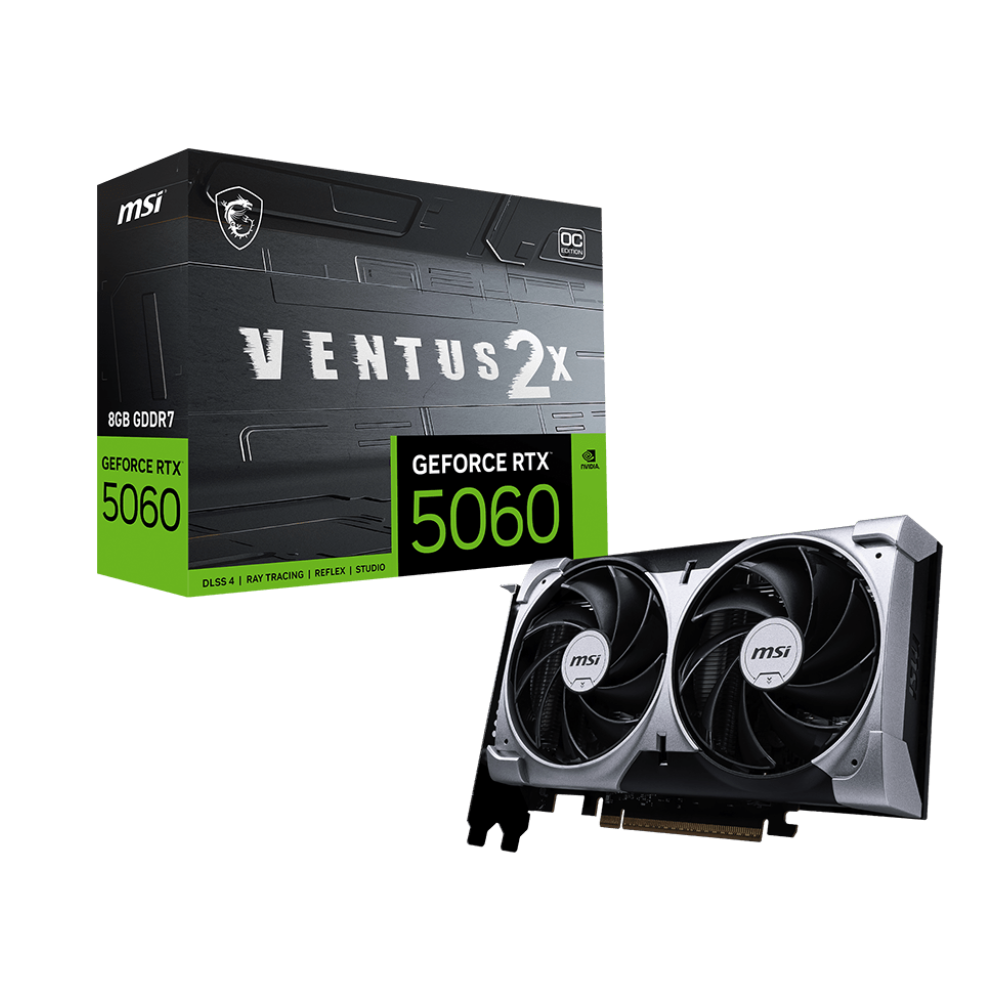

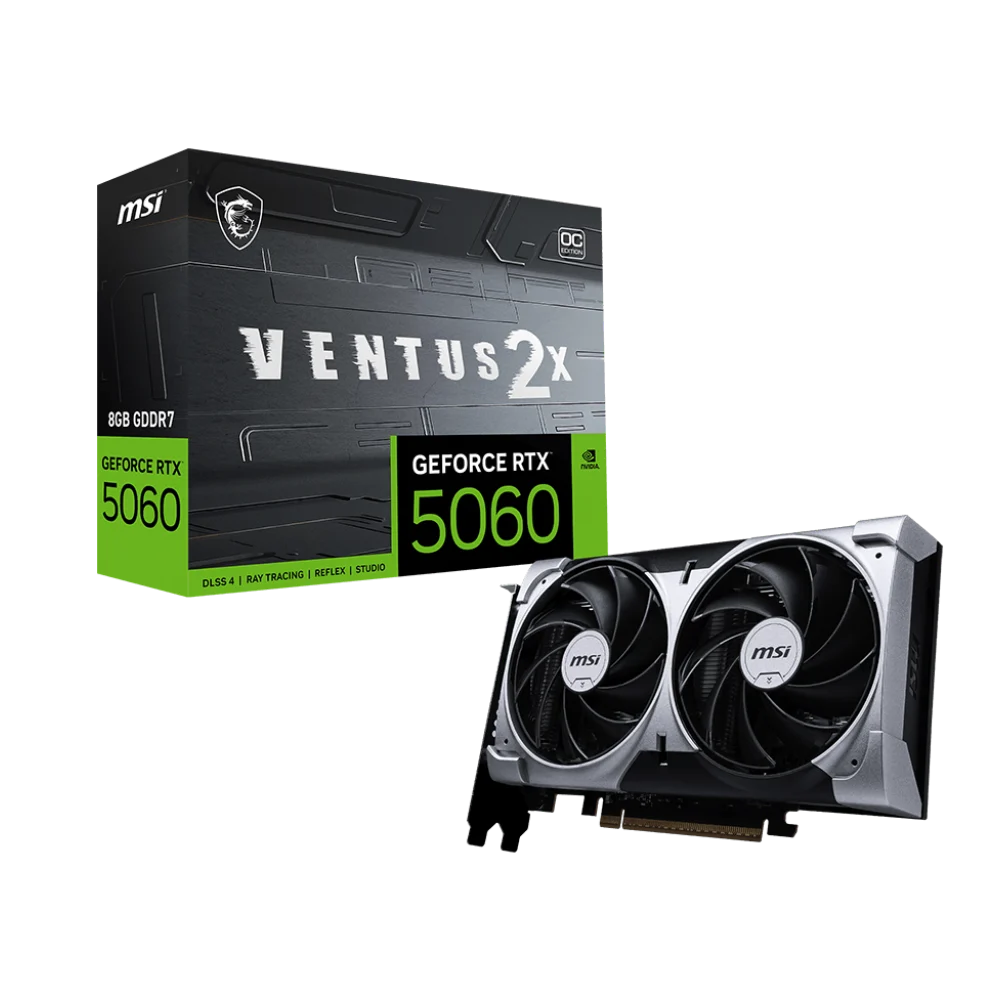

MSI GeForce RTX 5060 Ventus 2X OC 8GB Nvidia Graphic Card

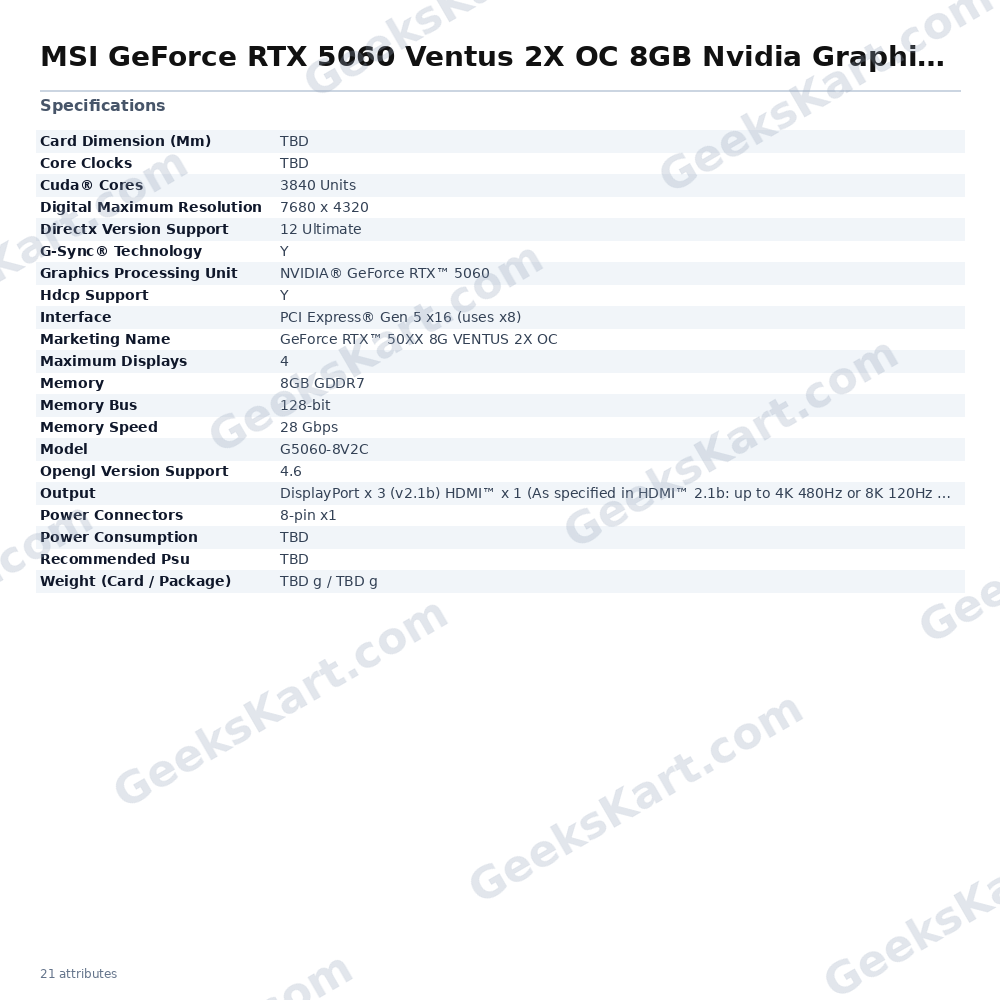

The MSI GeForce RTX 5060 Ventus 2X OC 8GB is a mainstream graphics card built on the NVIDIA Blackwell architecture, offering a compelling blend of modern features and practical thermal design at an accessible price point. Carrying MSI’s well-established Ventus design language, this card is engineered for builders who want straightforward, reliable performance without unnecessary flourishes. The neutral, dual-fan aesthetic integrates cleanly into almost any chassis — open-air or windowed — making it a versatile choice for new builds and upgrades alike. At the core of this card sits the NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores and 8GB of GDDR7 memory running at 28 Gbps across a 128-bit memory bus. The GDDR7 standard brings significantly improved bandwidth efficiency over previous-generation memory, helping the 128-bit bus punch above its width in real-world workloads. The card connects via PCI Express Gen 5 x16 slot (operating at x8 electrical), ensuring compatibility with current-generation platforms while leaving headroom for future motherboard adoption. MSI’s TORX FAN 5.0 cooling solution pairs two fans with a heat-pipe-based heatsink. The fan blades are tilted at 22 degrees and grouped in sets linked by ring arcs, a configuration MSI states increases airflow by 23% compared to standard axial fans. The result is quieter, more efficient cooling that keeps thermals in check during extended gaming or creative sessions. On the display output side, the card offers three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays. The HDMI 2.1b output handles up to 4K at 480 Hz or 8K at 120 Hz with DSC, alongside Gaming VRR and HDR. Maximum digital resolution reaches 7680 × 4320 (8K). The card supports DirectX 12 Ultimate, OpenGL 4.6, HDCP, and NVIDIA G-SYNC technology. Software-side, NVIDIA DLSS 4 with Multi Frame Generation, Ray Reconstruction, and Super Resolution — all powered by fifth-generation Tensor Cores — is available for supported titles. The Blackwell architecture’s fourth-generation RT Cores enable full ray-tracing support across more than 700 compatible games and applications. For creators, NVIDIA Studio driver support extends the card’s utility into video editing, 3D rendering, and graphic design workflows. Power is supplied via a single 8-pin connector. Power consumption, recommended PSU wattage, and physical dimensions are listed as TBD in the official specification sheet and have been omitted from this listing pending manufacturer confirmation. Verified Specifications: – GPU: NVIDIA GeForce RTX 5060 (Blackwell) – CUDA Cores: 3840 – Memory: 8 GB GDDR7 – Memory Speed: 28 Gbps – Memory Bus: 128-bit – Interface: PCIe Gen 5 x16 (x8 electrical) – Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b – Maximum Displays: 4 – Max Resolution: 7680 × 4320 – DirectX: 12 Ultimate | OpenGL: 4.6 – G-SYNC: Supported | HDCP: Supported – Power Connector: 8-pin × 1 – Model Number: G5060-8V2C
