MSI GeForce RTX 5070 Gaming Trio OC 12GB White Nvidia Graphic Card
MPN MSI-GEFORCE-RTX-5070-GAMING-TRIO-OC-12GB-WHITE · Brand MSI
The MSI GeForce RTX 5070 Gaming Trio OC 12GB White delivers 6,144 CUDA cores, 12GB GDDR7 at 28 Gbps, and PCIe Gen 5 connectivity with Tri Frozr 4 cooling and DLSS 4 support — built for 4K gaming and creative workloads
Inclusive of GST · GST invoice available
Overview
The MSI GeForce RTX 5070 Gaming Trio OC 12GB White is a high-performance graphics card built on the NVIDIA Blackwell architecture, designed for enthusiast gamers and content creators who demand both raw power and aesthetic refinement. Dressed in a bold white finish, this card fuses sharp edges, strong lines, and RGB lighting diffused through a frosted cover and dragon totem motif — a signature of MSI's Gaming Trio lineage. At the heart of the card sits the NVIDIA GeForce RTX 5070 GPU, equipped with 6,144 CUDA cores and 12GB of GDDR7 memory running at 28 Gbps across a 192-bit bus. The card connects via PCI Express Gen 5, keeping pace with the latest platform standards, and is capable of driving up to four displays simultaneously at resolutions up to 7680×4320 (8K). Cooling is handled by MSI's Tri Frozr 4 thermal system, which combines upgraded fans with improved airflow control and advanced thermal innovations to deliver quieter operation and sustained performance under load. A single 16-pin power connector handles power delivery. On the display side, the card features three DisplayPort 2.1a outputs and one HDMI 2.1b port, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC, Gaming VRR, and HDR. G-SYNC compatibility and HDCP support are included. Software-side, the card supports NVIDIA DLSS 4 with Multi Frame Generation and enhanced Ray Reconstruction, NVIDIA Reflex 2 with Frame Warp for reduced latency in competitive titles, and NVIDIA's RTX platform spanning over 700 ray-tracing and AI-accelerated games and applications. DirectX 12 Ultimate and OpenGL 4.6 are fully supported, and MSI Center software provides real-time monitoring, tuning, and AI Tuning functionality. Verified Specifications: - GPU: NVIDIA GeForce RTX 5070 (Blackwell architecture) - Model: G5070-12GTCW - CUDA Cores: 6,144 - Memory: 12GB GDDR7 - Memory Speed: 28 Gbps - Memory Bus: 192-bit - Interface: PCI Express Gen 5 - Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b (4K 480Hz / 8K 120Hz with DSC) - Maximum Displays: 4 - Max Resolution: 7680×4320 - Power Connector: 16-pin × 1 - Card Dimensions: 338 × 140 × 50 mm - DirectX: 12 Ultimate | OpenGL: 4.6 - G-SYNC: Supported | HDCP: Supported - Power Consumption / Recommended PSU / Weight: TBD (not disclosed at time of listing)

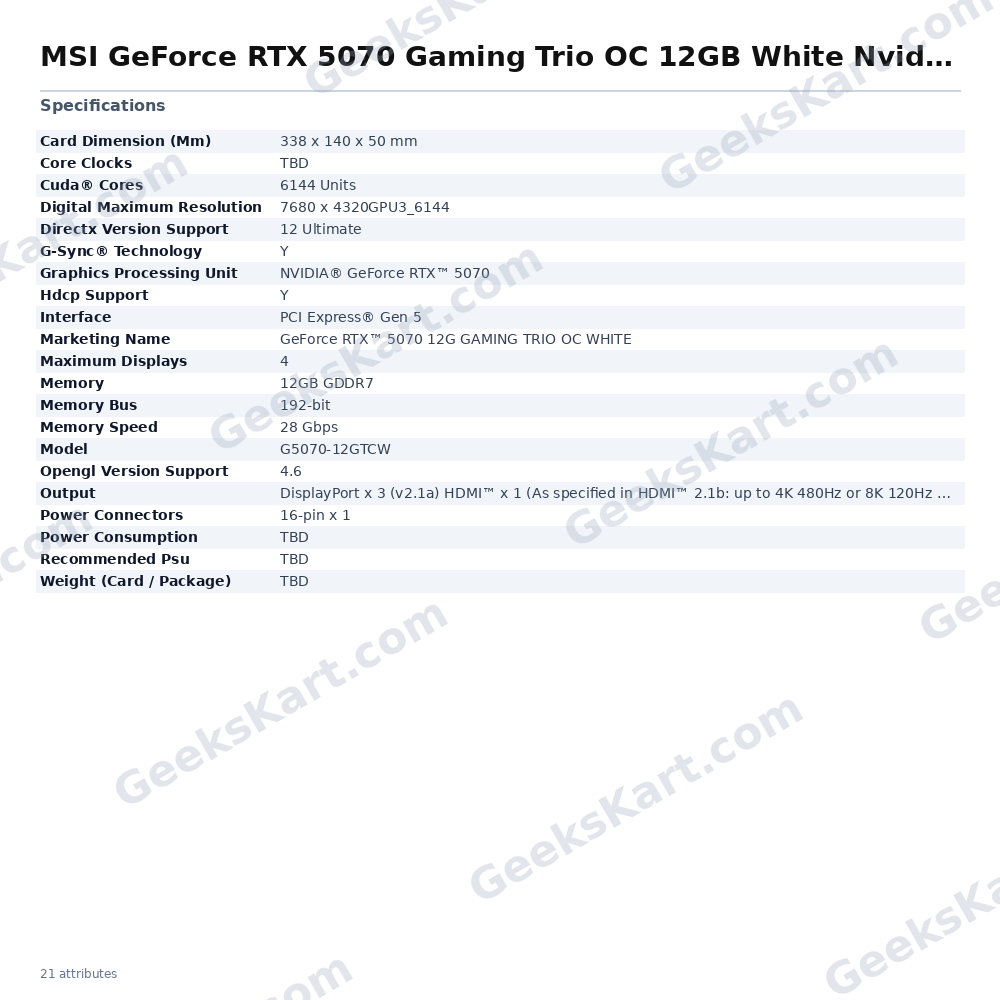

Datasheet
| Memory Speed | 28 Gbps |
|---|---|
| Interface | PCI Express® Gen 5 |
| Recommended PSU | TBD |
| Power Consumption | TBD |
| Memory | 12GB GDDR7 |
| Output | DisplayPort x 3 (v2.1a) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Memory Bus | 192-bit |
| Model | G5070-12GTCW |
| Core Clocks | TBD |
| Cuda® Cores | 6144 Units |
| Hdcp Support | Y |
| Marketing Name | GeForce RTX™ 5070 12G GAMING TRIO OC WHITE |
| Maximum Displays | 4 |
| Power Connectors | 16-pin x 1 |
| Card Dimension (Mm) | 338 x 140 x 50 mm |
| G-Sync® Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 Ultimate |
| Weight (Card / Package) | TBD |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Digital Maximum Resolution | 7680 x 4320GPU3_6144 |
