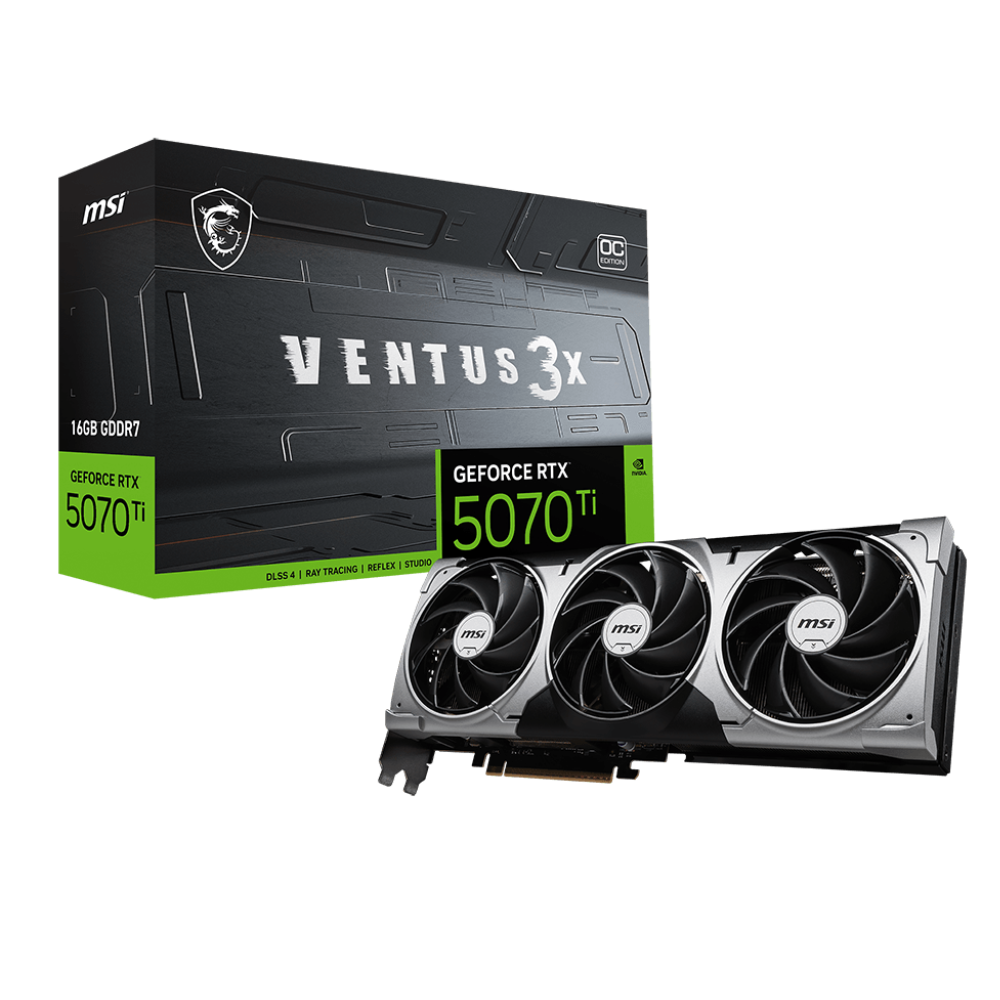

MSI GeForce RTX 5070 Ti Ventus 3X OC 16GB Nvidia Graphic Card

The MSI GeForce RTX 5070 Ti Ventus 3X OC 16GB is a high-performance desktop graphics card built on the NVIDIA Blackwell architecture, designed for gamers, content creators, and AI-accelerated workloads who demand substantial GPU horsepower without premium aesthetics overhead. At the core of this card is the NVIDIA GeForce RTX 5070 Ti processor featuring 8960 CUDA cores. The factory overclocked boost clock runs at 2482 MHz, with an Extreme Performance mode of 2497 MHz accessible through MSI Center software. The 16 GB of GDDR7 memory operates at 28 Gbps across a 256-bit memory bus, delivering substantial bandwidth for 4K gaming, 3D rendering, and large-model AI tasks. MSI's triple-fan TORX FAN 5.0 cooling solution features three fan clusters with 22-degree-tilted blades linked by ring arcs, which MSI states increases airflow by 23% compared to conventional axial fans. The thermal stack combines a nickel-plated copper baseplate that draws heat directly from the GPU and memory modules, feeding it into Core Pipes engineered with square-profile contact areas for maximum GPU surface coverage before dispersing heat across the aluminium heatsink array. A sturdy metal backplate reinforces the PCB and includes ventilation cutouts for supplemental exhaust airflow. MSI's Zero Frozr technology halts all three fans during light workloads and idle periods, ensuring silent operation when full cooling capacity is not required. Connectivity is provided by three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays at a maximum digital resolution of 7680×4320 (8K). The HDMI 2.1b port supports up to 4K 480Hz or 8K 120Hz with DSC. The card uses a PCI Express Gen 5 interface and draws power through a single 16-pin connector with a 300W TDP; MSI recommends a minimum 750W power supply unit. DirectX 12 Ultimate and OpenGL 4.6 are supported, as is G-SYNC display synchronisation and HDCP. Software features include NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for competitive latency reduction, and NVIDIA RTX ray tracing via fourth-generation RT Cores and fifth-generation Tensor Cores. MSI Center software provides real-time monitoring, fan curve adjustment, and AI Tuning for system optimisation. Verified Specifications: • GPU: NVIDIA GeForce RTX 5070 Ti (Blackwell) • CUDA Cores: 8960 • Memory: 16 GB GDDR7, 256-bit bus, 28 Gbps • Boost Clock: 2482 MHz (Extreme Performance: 2497 MHz via MSI Center) • Interface: PCIe Gen 5 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680×4320 • TDP: 300W | Power Connector: 16-pin ×1 | Recommended PSU: 750W • Dimensions: 303 × 121 × 49 mm • DirectX: 12 Ultimate | OpenGL: 4.6 • Model Number: G507T-16V3C
