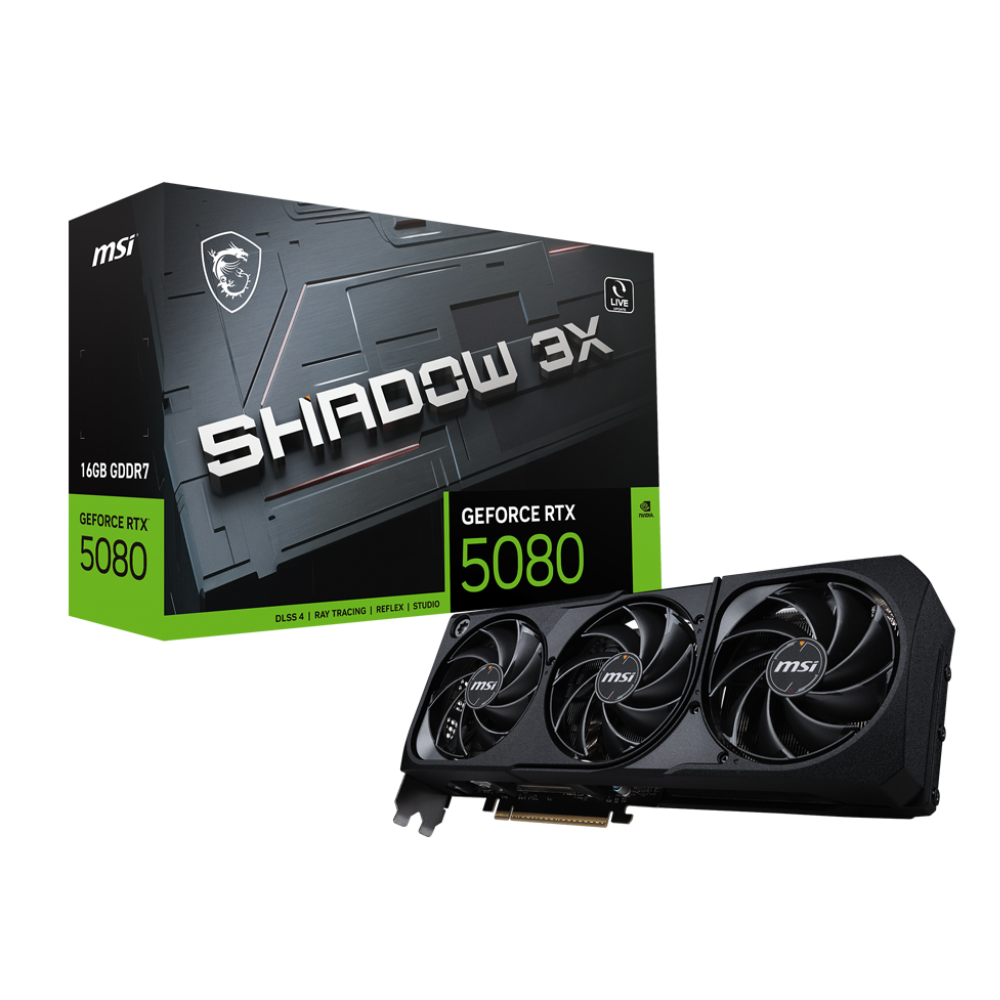

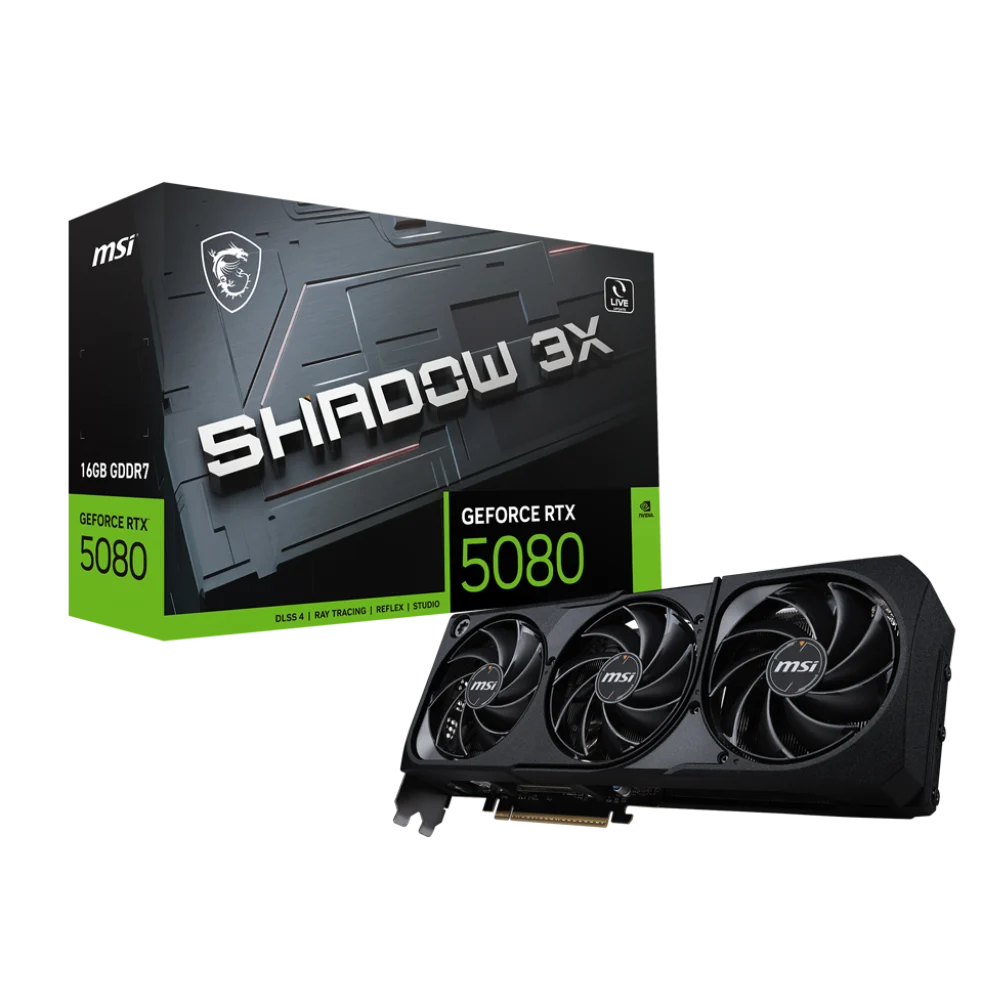

MSI Geforce RTX 5080 Shadow 3X 16GB NVIDIA Graphic Card
MPN MSI-GEFORCE-5080-SHADOW-3X-16GB · Brand MSI
Features of MSI Geforce RTX 5080 Shadow 3X 16GB NVIDIA Graphic Card TAKE THE ESSENTIALS MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig. The Ultimate Platform for Gamers and Creators Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry NVIDIA DLSS 4 Supreme Speed
Inclusive of GST · GST invoice available
Overview
Features of MSI Geforce RTX 5080 Shadow 3X 16GB NVIDIA Graphic Card
TAKE THE ESSENTIALS
MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
NVIDIA DLSS 4 Supreme Speed. Superior Visuals. Powered by Al.
Full Ray Tracing with Neural Rendering Game-Changing Realism
NVIDIA Reflex 2 Compete at Warp Speed
RTX AI PCs NVIDIA Powers the World's Al.And Yours.
Creators Your Creative Al-dvantage
RTX. It's The Ultimate in Ray Tracing and Al
Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
ZERO FROZR
TORX FAN 5.0
NICKEL-PLATED COPPER BASEPLATE
KEEPING THE CORE COOL - CORE PIPES
Specifications of MSI Geforce RTX 5080 Shadow 3X 16GB NVIDIA Graphic Card
| Marketing Name | GeForce RTX™ 5080 16G SHADOW 3X |
| Model Name | G5080-16S3 |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center) Boost: 2617 MHz |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 360 W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 303 x 121 x 49 mm |
| Weight (Card / Package) | 1046 g / 1546 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
Datasheet
| Memory Speed | 30 Gbps |
|---|---|
| Interface | PCI Express® Gen 5 |
| Recommended PSU | 850 W |
| Power Consumption | 360 W |
| Memory | 16GB GDDR7 |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Memory Bus | 256-bit |
| Model | G5080-16S3 |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center) Boost: 2617 MHz |
| Cuda® Cores | 10752 Units |
| Hdcp Support | Y |
| Marketing Name | GeForce RTX™ 5080 16G SHADOW 3X |
| Maximum Displays | 4 |
| Power Connectors | 16-pin x 1 |
| Card Dimension (Mm) | 303 x 121 x 49 mm |
| G-Sync® Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 Ultimate |
| Weight (Card / Package) | 1046 g / 1546 g |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Digital Maximum Resolution | 7680 x 4320 |
