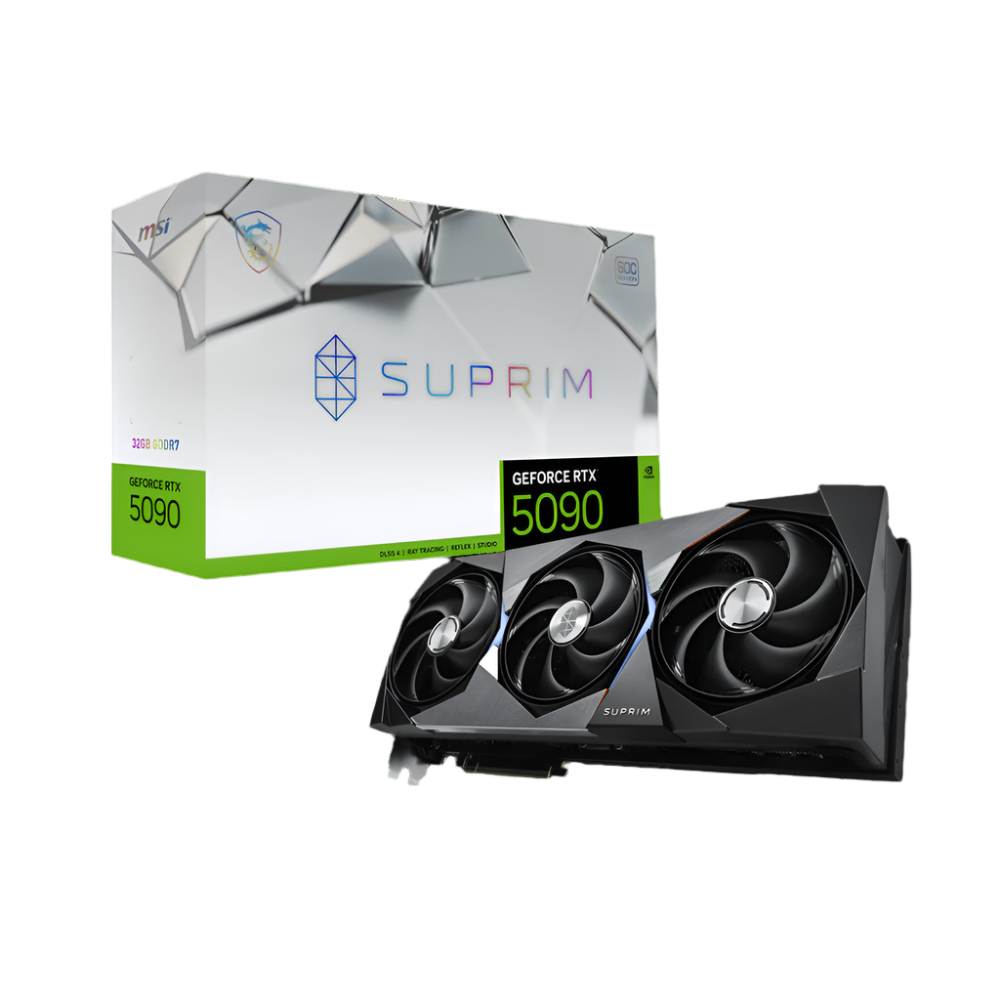

MSI GeForce RTX 5090 Suprim SOC 32GB Nvidia Graphic Card

The MSI GeForce RTX 5090 Suprim SOC 32GB is MSI’s flagship single-GPU graphics card, built on the NVIDIA Blackwell architecture. It occupies the absolute top of the GeForce RTX 50 Series stack, delivering substantial gains in rasterisation, ray tracing, and AI-accelerated workloads over prior generations. At the heart of this card sit 21,760 CUDA cores paired with 32 GB of GDDR7 memory running at 28 Gbps across a wide 512-bit memory bus — a configuration designed to handle 4K and 8K gaming, large-scale 3D rendering, video production, and demanding AI inference tasks without compromise. MSI’s Hyper Frozr thermal solution integrates an advanced vapour chamber, square-contact core pipes, and STORMFORCE fans. Each STORMFORCE fan carries seven claw-textured blades engineered to raise static air pressure, while a circular-arc blade profile keeps noise low under sustained load. Double ball bearings extend operational life under continuous high-throughput use. The fin array is shaped to disrupt unwanted airflow harmonics and reduce resonance noise. In Gaming Mode the card targets a boost clock of 2,565 MHz (up to 2,580 MHz with Extreme Performance mode via MSI Center software). Silent Mode lowers the profile to 2,512 MHz boost (2,527 MHz Extreme Performance), reducing power draw to 575 W from the 600 W Gaming Mode TDP. Display connectivity comprises three DisplayPort 2.1b outputs and one HDMI 2.1b port (supporting up to 4K 480 Hz or 8K 120 Hz with DSC), allowing up to four simultaneous displays at a maximum digital resolution of 7680 × 4320. G-SYNC compatibility, HDCP support, DirectX 12 Ultimate, and OpenGL 4.6 are all confirmed. A single 16-pin power connector feeds the card; MSI recommends a minimum 1000 W power supply. Software integration is handled through MSI Center, which provides real-time monitoring, fan curve adjustment, and the AI Tuning feature. NVIDIA-side technologies supported include DLSS 4 with Multi Frame Generation, Reflex 2 with Frame Warp latency reduction, and full hardware ray tracing via fourth-generation RT Cores. Verified Specifications: • GPU: NVIDIA GeForce RTX 5090 (Blackwell) • Model number: G5090-32SPS • CUDA Cores: 21,760 • Memory: 32 GB GDDR7, 512-bit bus, 28 Gbps • Interface: PCI Express Gen 5 x16 • Boost clock (Gaming Mode): 2,565 MHz | Extreme Performance: 2,580 MHz • Boost clock (Silent Mode): 2,512 MHz | Extreme Performance: 2,527 MHz • TDP: 600 W (Gaming) / 575 W (Silent) • Power connector: 16-pin × 1 | Recommended PSU: 1,000 W • Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b • Max resolution: 7680 × 4320 | Max displays: 4 • Card dimensions: 359 × 150 × 76 mm | Weight: 2,840 g • DirectX 12 Ultimate | OpenGL 4.6 | G-SYNC supported
