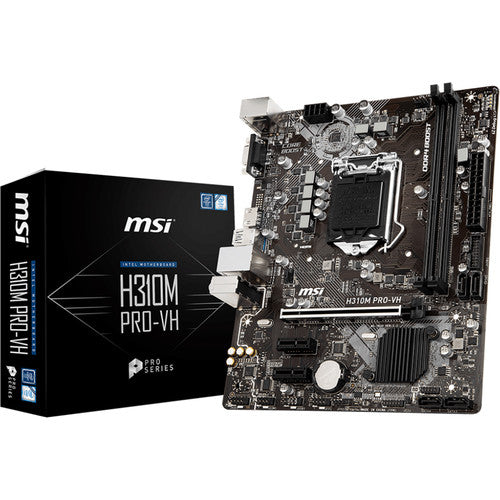

MSI H310M-Pro-VH DDR4 Intel Motherboard
MPN MSI-H310M-PRO-VH-MOTHERBOARD · Brand MSI
The MSI H310M Pro VH is a Micro-ATX motherboard for Intel LGA 1151 processors (8th/9th Gen), featuring dual DDR4 slots up to 32 GB, four SATA 6 Gb/s ports, HDMI and VGA outputs, and 7.1-channel HD audio
Inclusive of GST · GST invoice available
Overview
The MSI H310M Pro VH is a Micro-ATX motherboard built on Intel's H310 chipset, designed for LGA 1151 socket processors. It supports Intel 8th and 9th Generation Core, Pentium Gold, and Celeron processors, making it a dependable foundation for home office PCs, entry-level workstations, and budget desktop builds. For memory, the board provides two DDR4 DIMM slots capable of holding up to 32 GB of RAM in a dual-channel configuration. Supported speeds are DDR4 2133, 2400, and 2666 MHz, and the board is compatible with Intel Extreme Memory Profile (XMP) modules. Only non-ECC, unbuffered memory is supported, which is standard for consumer H310 platforms. Expansion options include one PCIe 3.0 x16 slot for a discrete graphics card and two PCIe 2.0 x1 slots for additional peripherals. The PCIe x16 slot features MSI's PCI-E Steel Armor reinforcement to protect heavier graphics cards against flex and electromagnetic interference. Storage is handled through four SATA 6 Gb/s ports provided by the H310 chipset. For connectivity, the board offers four USB 3.1 Gen1 (SuperSpeed) ports and six USB 2.0 ports, split between the rear I/O panel and internal headers. Networking is provided by a Realtek RTL8111H Gigabit LAN controller. Audio comes via a Realtek ALC887 codec delivering 7.1-channel High Definition audio output — branded by MSI as Audio Boost. Display outputs on the rear I/O include one VGA port (up to 1920×1200 @ 60 Hz) and one HDMI port (up to 4096×2160 @ 30 Hz), enabling dual-monitor setups when using a processor with integrated graphics. Debugging is simplified by MSI's four-LED EZ Debug LED system, which indicates boot issues related to CPU, DRAM, VGA, and boot device. The BIOS is MSI's Click BIOS 5 interface. MSI's X-Boost software utility allows performance optimisation of connected USB and storage devices. Verified Specifications: - Form Factor: Micro-ATX (22.6 cm × 18.5 cm / 8.9 in × 7.3 in) - Socket: LGA 1151 - Chipset: Intel H310 (ME11 firmware, no SDA 3.0) - CPU Support: Intel 8th / 9th Gen Core, Pentium Gold, Celeron - Memory: 2 × DDR4 DIMM, up to 32 GB, DDR4 2133/2400/2666 MHz, dual-channel, XMP - Slots: 1 × PCIe 3.0 x16, 2 × PCIe 2.0 x1 - Storage: 4 × SATA 6 Gb/s - USB: 4 × USB 3.1 Gen1, 6 × USB 2.0 - Audio: Realtek ALC887, 7.1-channel HD Audio - LAN: Realtek RTL8111H Gigabit - Display Out: 1 × VGA, 1 × HDMI - OS Support: Windows 10 64-bit - Warranty: 3 Years

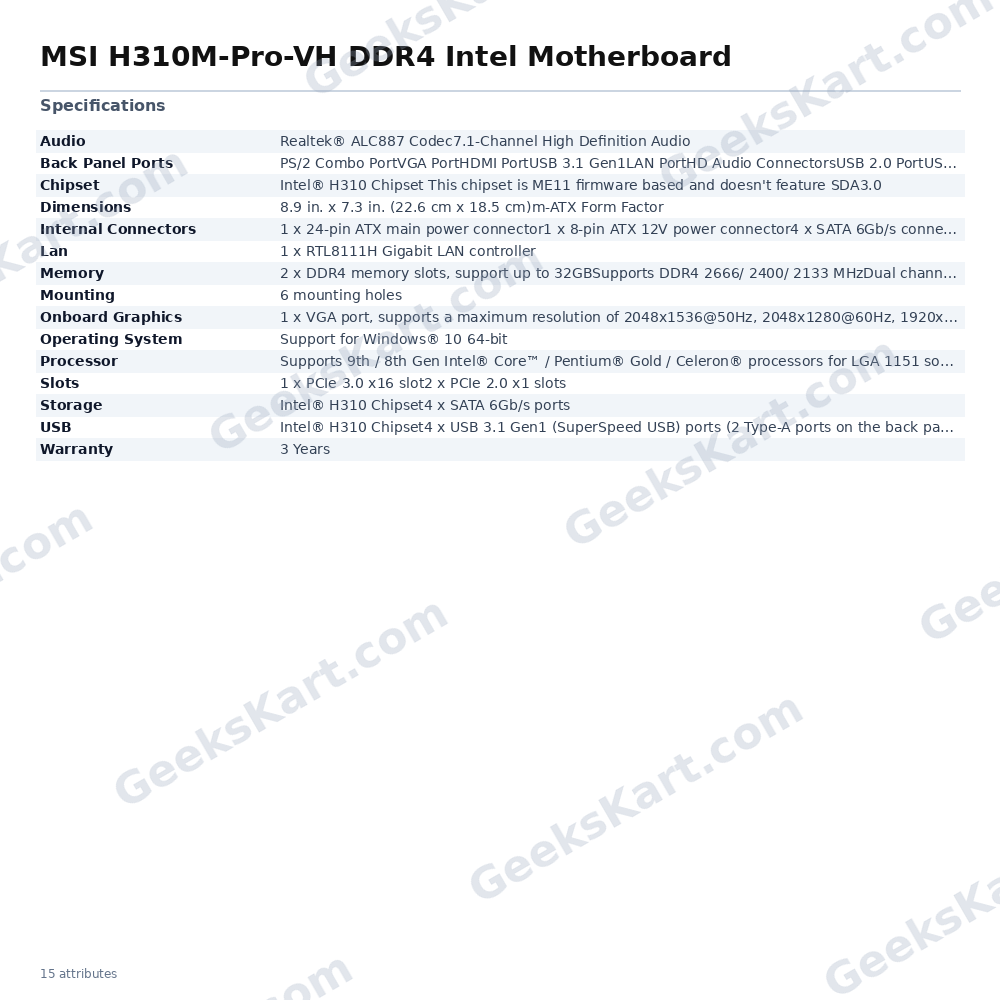

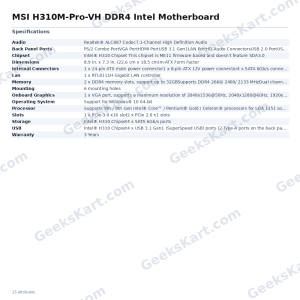

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0 |
| Lan | 1 x RTL8111H Gigabit LAN controller |
| USB | Intel® H310 Chipset4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| Audio | Realtek® ALC887 Codec7.1-Channel High Definition Audio |
| Slots | 1 x PCIe 3.0 x16 slot2 x PCIe 2.0 x1 slots |
| Memory | 2 x DDR4 memory slots, support up to 32GBSupports DDR4 2666/ 2400/ 2133 MHzDual channel memory architectureSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® H310 Chipset4 x SATA 6Gb/s ports |
| Mounting | 6 mounting holes |
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Dimensions | 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)m-ATX Form Factor |
| Back Panel Ports | PS/2 Combo PortVGA PortHDMI PortUSB 3.1 Gen1LAN PortHD Audio ConnectorsUSB 2.0 PortUSB 2.0 Port |
| Onboard Graphics | 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)1 x 4-pin CPU fan connector1 x 4-pin system fan connector2 x Front panel connectors1 x Front panel audio connector1 x Serial port connector1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper4 x EZ Debug LED |
