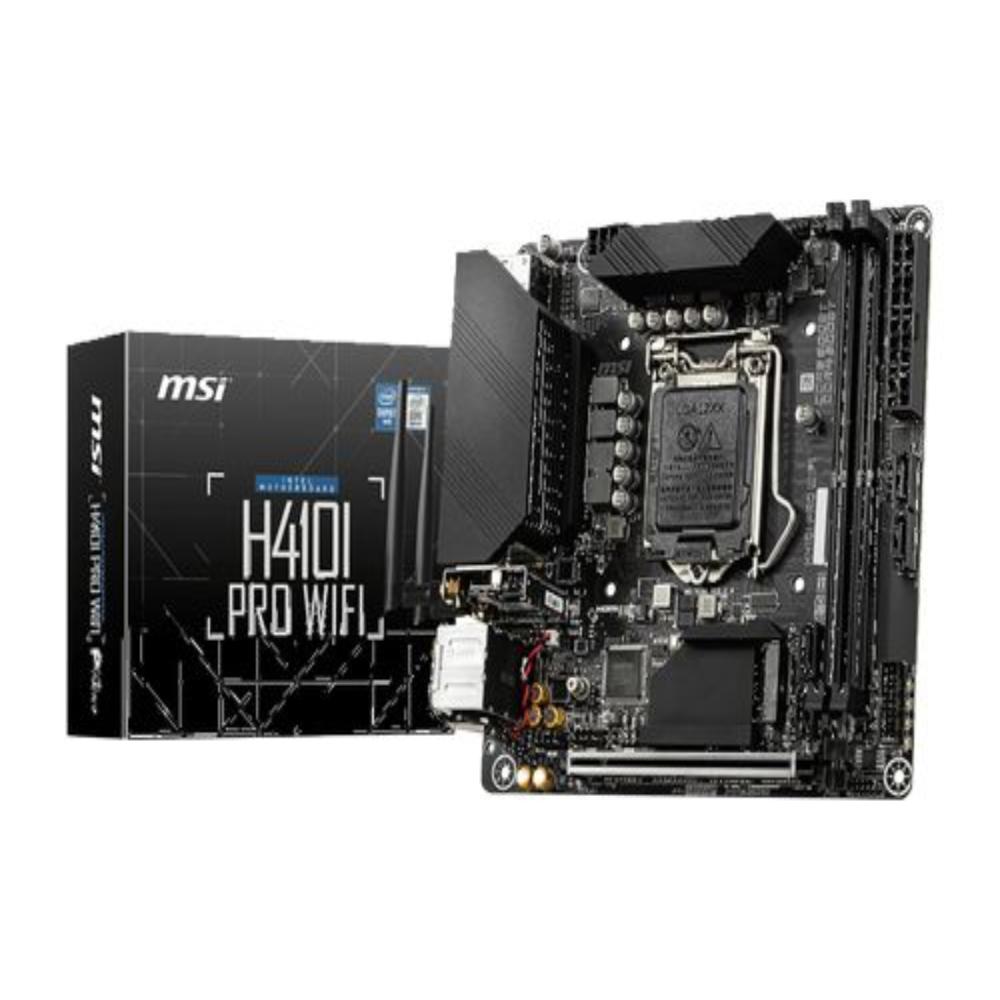

MSI H410i Pro Wifi DDR4 Intel Motherboard

The MSI H410i PRO WiFi is a Mini-ITX form-factor motherboard engineered for builders who need a space-efficient, feature-rich Intel platform. Designed around the LGA 1200 socket, it supports 10th-generation Intel Core processors up to the i9 tier and pairs them with the Intel H410 chipset for a dependable, mainstream-class foundation. Memory flexibility is well covered for the Mini-ITX segment: two DIMM slots support dual-channel DDR4 at up to 2933 MHz (OC) or 2666 MHz standard, with a maximum capacity of 64 GB. Storage options include one M.2 slot for NVMe or SATA-based SSDs and four SATAIII ports for additional drives. Connectivity is a clear standout. Onboard Intel Wireless-AC 3168 delivers Wi-Fi AC wireless networking alongside Bluetooth 4.2, removing the need for a separate wireless adapter. The Intel I219V Gigabit LAN controller handles wired networking, and MSI’s LAN Manager software can prioritise latency-sensitive traffic for smoother online use. For display output the board provides one HDMI port and one DisplayPort, both useful when pairing with a processor that includes Intel integrated graphics. The rear I/O also features two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, five analogue audio jacks, and an optical S/PDIF output. The front-panel headers mirror this with two USB 3.2 Gen 1 and two USB 2.0 connections. On the expansion side, a single PCIe x16 Gen 3 slot — reinforced with MSI’s Steel Armor for extra solder points and EMI shielding — accommodates a dedicated graphics card. The board also includes a TPM header, EZ Debug LED indicators for rapid fault diagnosis, Total Fan Control with up to four temperature targets, a dedicated water-pump header rated at up to 3 A, and MSI’s Core Boost power-delivery design. The Click BIOS 5 interface and Dragon Center software suite round out the system-tuning toolkit. Verified Specifications: • Form Factor: Mini-ITX • Socket: LGA 1200 • Chipset: Intel H410 • CPU Support (Max): Intel Core i9 (10th Gen) • Memory: 2 × DDR4 DIMM, Dual Channel, up to 64 GB, 2666 MHz / 2933 MHz (OC) • PCIe: 1 × PCIe x16 Gen 3 (Steel Armor) • Storage: 4 × SATAIII, 1 × M.2 • LAN: Intel I219V Gigabit • Wi-Fi / Bluetooth: Intel Wireless-AC 3168 (up to 433 Mbps) / Bluetooth 4.2 • USB (Rear): 2 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 • USB (Front Headers): 2 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 • Display Output: 1 × HDMI, 1 × DisplayPort • Audio (Rear): 5 analogue jacks + Optical S/PDIF • DirectX: 12 • TPM Header: 1 • OS Support: Windows 10 64-bit
