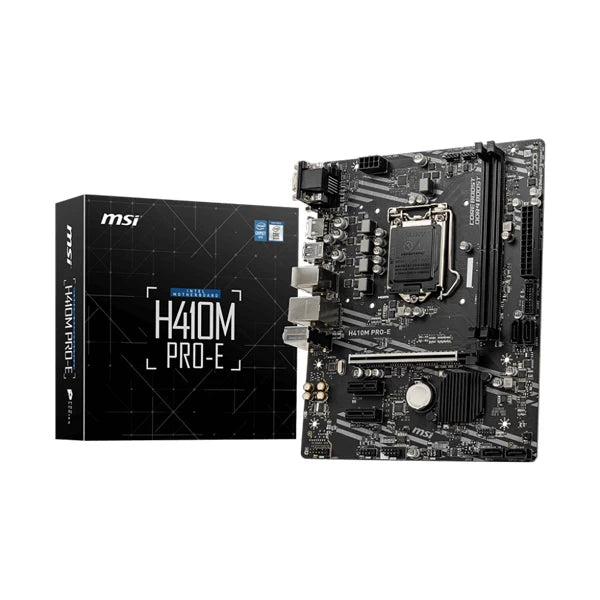

MSI H410M Pro E DDR4 Intel Motherboard
MPN MSI-H410M-PRO-E · Brand MSI
The MSI H410M Pro E is a Micro-ATX motherboard for 10th Gen Intel LGA 1200 CPUs, offering dual-channel DDR4 up to 64 GB, four SATA ports, triple display output, and Realtek Gigabit LAN in a compact 9.3 × 7.5-inch footprint
Inclusive of GST · GST invoice available
Overview
The MSI H410M Pro E is a Micro-ATX form factor motherboard built around the Intel H410 chipset and designed to support 10th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1200 socket. It is a practical, no-frills platform for office workstations, productivity builds, and entry-level desktop systems that need reliable everyday performance without unnecessary complexity. Memory support spans two DDR4 DIMM slots capable of holding up to 64 GB in total. Systems powered by Core i7 or i9 processors can run at up to DDR4-2933 MHz, while Core i5 and below are supported up to DDR4-2666 MHz. Both slots support dual-channel operation, and the board also accepts Intel Extreme Memory Profile (XMP) modules. Only non-ECC, unbuffered memory is compatible. For display output, the H410M Pro E provides three rear-panel video connections: a VGA port (up to 2048×1536 at 50 Hz), an HDMI 1.4 port (up to 4096×2160 at 30 Hz), and a DVI-D port (up to 1920×1200 at 60 Hz). Note that onboard graphics output is not available when using F-SKU processors that lack an integrated GPU. Storage connectivity is handled by four SATA 6 Gb/s ports routed through the H410 chipset. Expansion comes via one PCIe 3.0 x16 slot from the CPU and one PCIe 3.0 x1 slot from the PCH, providing room for a discrete GPU and a secondary card. USB connectivity includes four USB 3.2 Gen 1 (5 Gbps) ports — two on the rear panel and two via an internal header — plus six USB 2.0 ports, four on the rear panel and two through an internal connector. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel High Definition Audio, while networking is covered by a Realtek R1111H Gigabit LAN controller. The internal connector layout includes a 24-pin ATX main power connector, an 8-pin ATX 12V power connector, one 4-pin CPU fan header, one 4-pin system fan header, a TPM module connector, a chassis intrusion connector, a serial port connector, a Clear CMOS jumper, and four EZ Debug LEDs for quick fault diagnosis. Verified Specifications: - Form Factor: Micro-ATX, 9.3 in. × 7.5 in. (23.6 cm × 19.0 cm), 6 mounting holes - Chipset: Intel H410 - Socket: LGA 1200 (10th Gen Intel Core / Pentium Gold / Celeron) - Memory: 2× DDR4 DIMM, up to 64 GB; DDR4-2933 (i7/i9), DDR4-2666 (i5 and below); dual-channel, XMP, non-ECC unbuffered - Expansion: 1× PCIe 3.0 x16 (CPU), 1× PCIe 3.0 x1 (PCH) - Display: 1× VGA, 1× HDMI 1.4, 1× DVI-D - Storage: 4× SATA 6 Gb/s - USB: 4× USB 3.2 Gen 1 5 Gbps, 6× USB 2.0 - Audio: Realtek ALC897, 7.1-channel HD Audio - LAN: Realtek R1111H Gigabit - OS Support: Windows 10 64-bit - Warranty: 3 Years

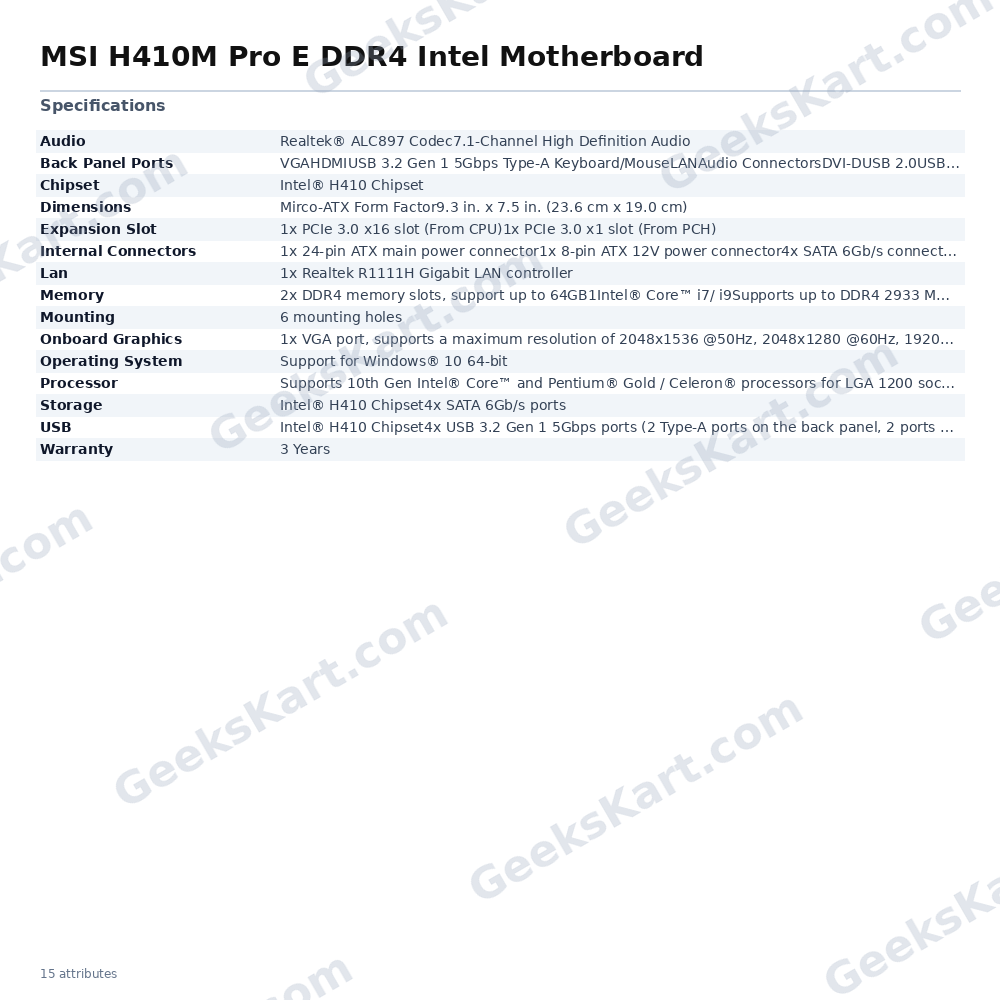

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H410 Chipset |
| Lan | 1x Realtek R1111H Gigabit LAN controller |
| USB | Intel® H410 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GB1Intel® Core™ i7/ i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® H410 Chipset4x SATA 6Gb/s ports |
| Mounting | 6 mounting holes |
| Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2Please go to http://www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors |
| Dimensions | Mirco-ATX Form Factor9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
| Expansion Slot | 1x PCIe 3.0 x16 slot (From CPU)1x PCIe 3.0 x1 slot (From PCH) |
| Back Panel Ports | VGAHDMIUSB 3.2 Gen 1 5Gbps Type-A Keyboard/MouseLANAudio ConnectorsDVI-DUSB 2.0USB 2.0 |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x USB 2.0 connector (supports additional 2 USB 2.0 ports)1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x Serial port connector1x TPM module connector1x Chassis Intrusion connector1x Clear CMOS jumper4x EZ Debug LED |
