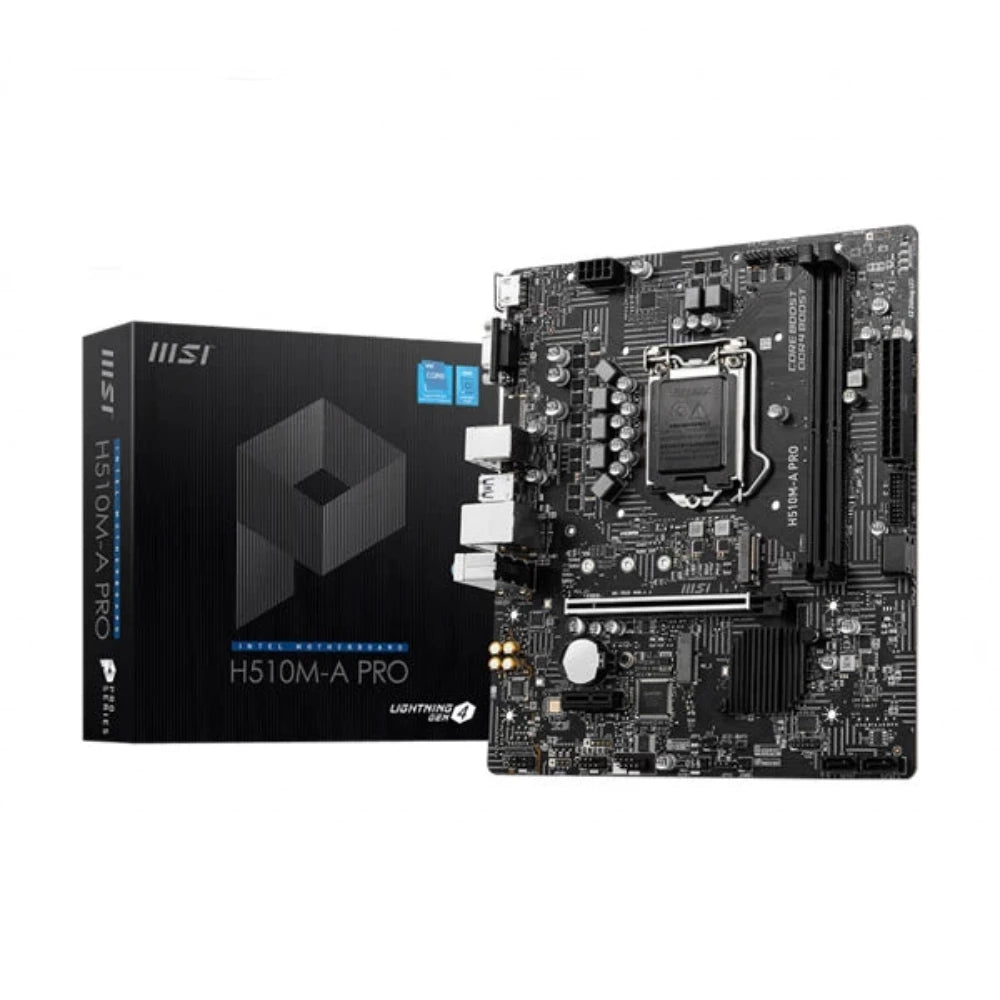

MSI H510M-A Pro DDR4 Intel Motherboard

The MSI H510M-A Pro is a Micro-ATX form-factor motherboard built on the Intel H510 chipset and designed to support both 10th Gen and 11th Gen Intel Core processors, as well as Pentium Gold and Celeron processors. It is a dependable foundation for home office workstations, entry-level creative builds, and productivity-focused desktop systems that demand stability and straightforward assembly. Memory flexibility is a strong point: two DDR4 DIMM slots accept up to 64 GB of non-ECC, unbuffered RAM in dual-channel configuration. Supported speeds reach 2933 MHz on 10th Gen CPUs and up to 3200 MHz on 11th Gen CPUs via JEDEC and POR profiles, with Intel Extreme Memory Profile (XMP) support available for compatible kits. Storage is well-catered for, with four SATA 6 Gb/s ports supplemented by an M.2 Key-M slot (M2_1) capable of PCIe 3.0 x4 speeds and supporting 2242, 2260, and 2280 form-factor drives. A dedicated M.2 E-Key slot (M2_2) accommodates an optional Wi-Fi module, giving users a cable-free upgrade path without occupying a PCIe slot. The single PCIe x16 slot operates at PCIe 4.0 bandwidth with 11th Gen CPUs and PCIe 3.0 with 10th Gen CPUs. MSI's PCI-E Steel Armor reinforces this slot with extra solder points to support heavier graphics cards. An additional PCIe 3.0 x1 slot provides room for expansion cards. Display output comes via HDMI 2.0b (up to 4K at 60 Hz with HDR) and a VGA port (up to 2048×1536 at 60 Hz), servicing integrated graphics users without needing a discrete GPU. Connectivity is handled by an Intel I219V Gigabit LAN controller paired with MSI's LAN Manager software for traffic prioritisation. USB 3.2 Gen 1 (5 Gbps) coverage spans four ports total — two rear Type-A and two via internal header — while six USB 2.0 ports (four rear, two via internal header) round out peripheral support. Audio is managed by a Realtek ALC897 codec delivering 7.1-channel High Definition Audio. The board features an isolated audio design with separated PCB layers for left and right channels, minimising crosstalk and signal noise. FROZR AI Cooling, powered by MSI AI Engine, monitors CPU and system temperatures and adjusts fan duty cycles automatically. Total Fan Control in BIOS and MSI Center software expands management to up to four temperature targets. EZ DEBUG LED indicators help identify component issues at a glance, while Double ESD protection adds a grounded layer around mounting holes to guard against electrostatic discharge. Security features include Secure Boot support and a TPM module connector. The board ships with a 3-year manufacturer warranty. Verifiable Specifications: - Model: H510M-A PRO - Form Factor: Micro-ATX - Chipset: Intel H510 - Socket: LGA 1200 - CPU Support: 10th Gen & 11th Gen Intel Core, Pentium Gold, Celeron - Memory: 2x DDR4 slots, max 64 GB, dual-channel, XMP, non-ECC unbuffered - Memory Speed: up to 2933 MHz (10th Gen) / 3200 MHz (11th Gen) - PCIe x16: 1x (PCIe 4.0 with 11th Gen / PCIe 3.0 with 10th Gen) - PCIe x1: 1x PCIe 3.0 (PCH) - Storage: 4x SATA 6Gb/s; 1x M.2 Key-M (PCIe 3.0 x4, 2242/2260/2280) - Wi-Fi Slot: 1x M.2 E-Key (M2_2, module not included) - Display: HDMI 2.0b (4K/60Hz HDR), VGA (2048×1536/60Hz) - USB: 4x USB 3.2 Gen 1 5Gbps; 6x USB 2.0 - LAN: Intel I219V 1 Gbps - Audio: Realtek ALC897, 7.1-channel HD Audio - Power: 24-pin ATX + 8-pin ATX 12V - OS: Windows 10 64-bit - Warranty: 3 Years
