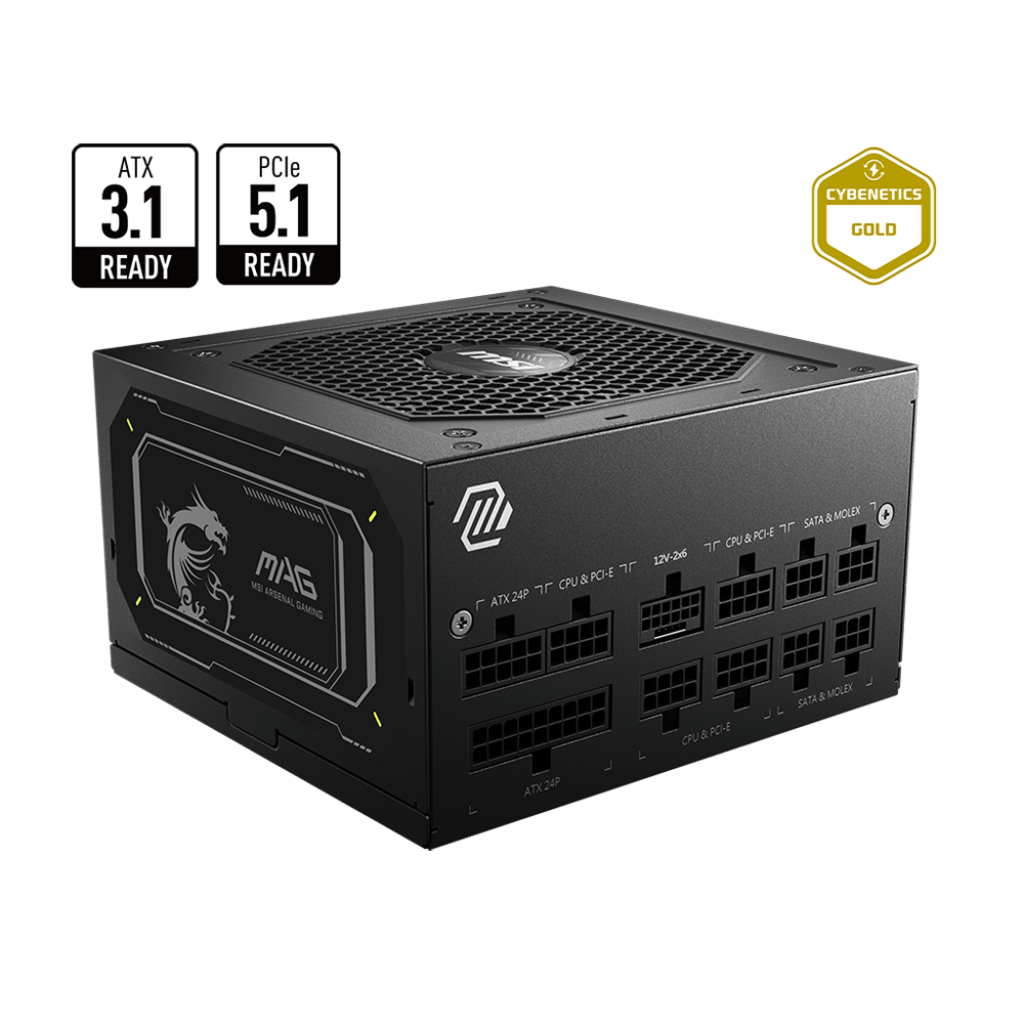

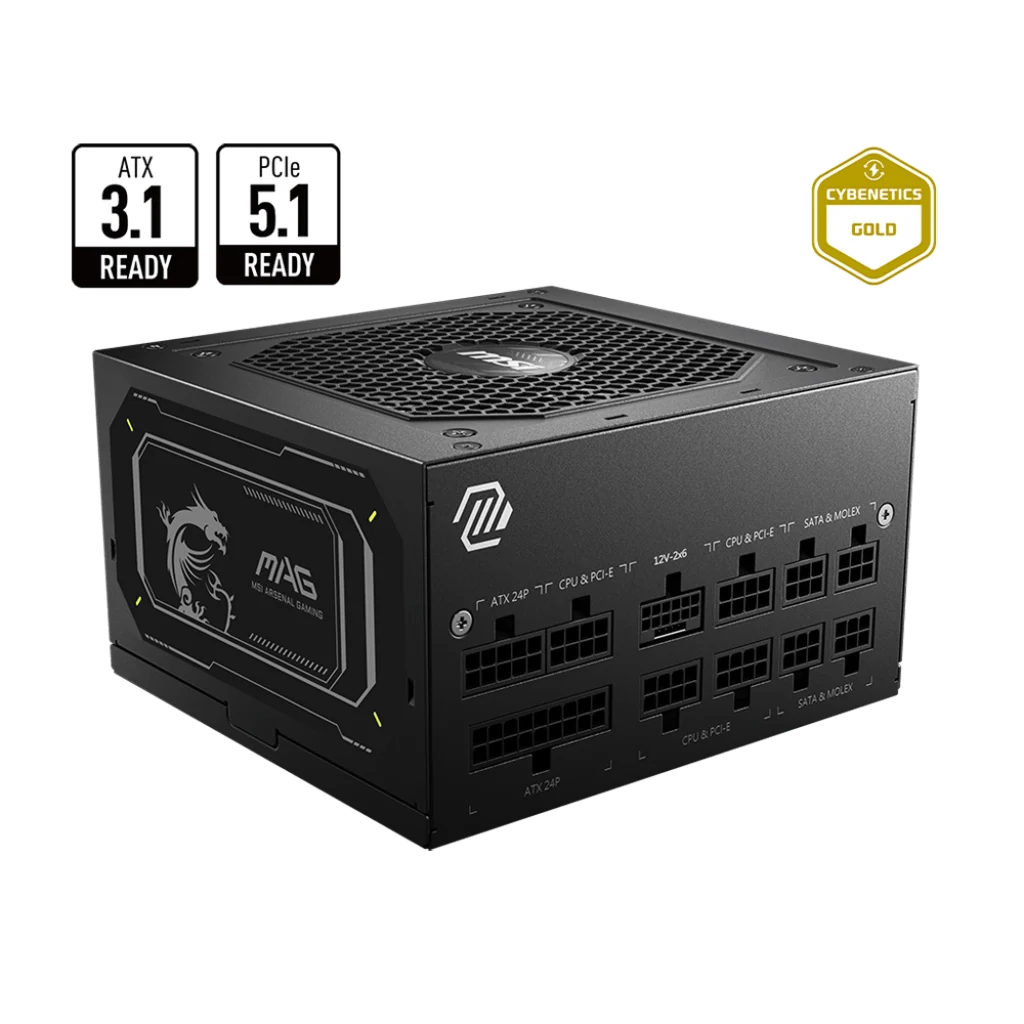

Features of MSI MAG A750GL PCIE5 II 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W )
ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
MAG A750GL PCIE5 II
- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
- 120 mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design

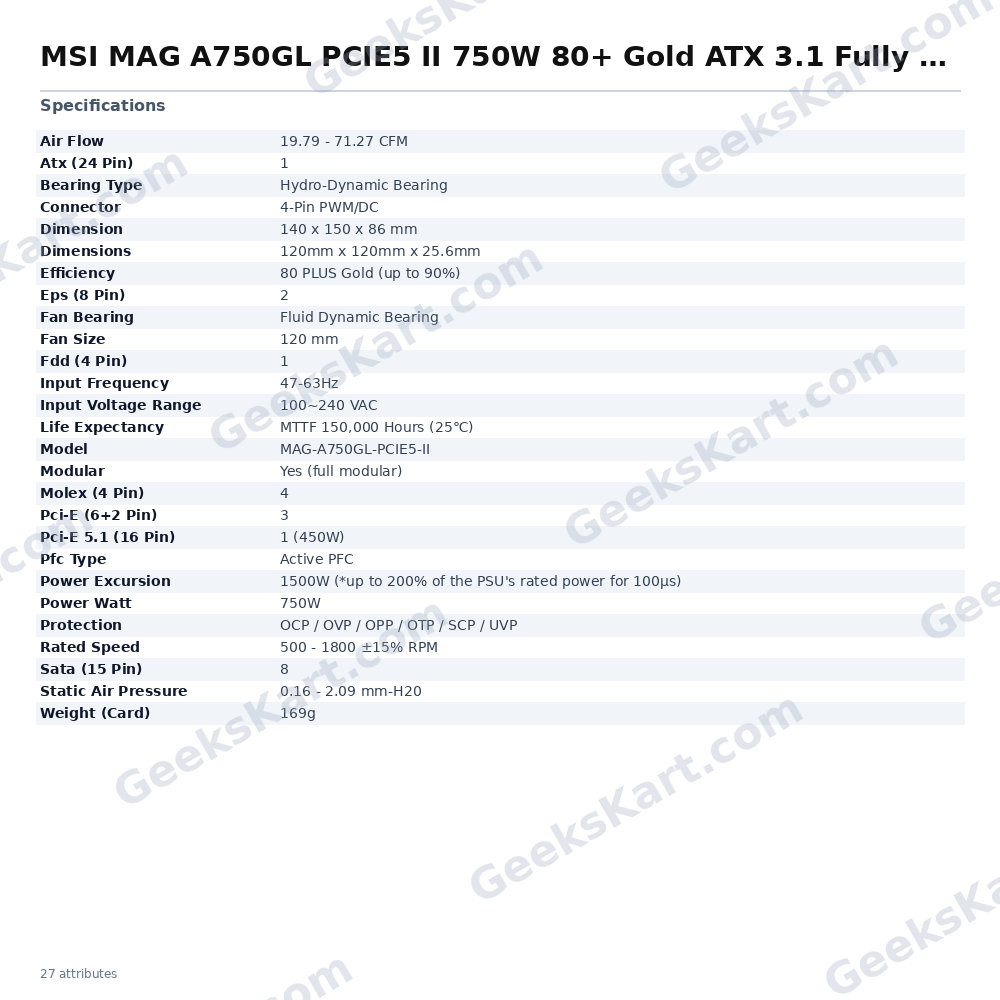

Specifications of MSI MAG A750GL PCIE5 II 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W )
| Model Name | MAG-A750GL-PCIE5-II |
| WEIGHT (CARD) | 169g |
| Dimensions | 120mm x 120mm x 25.6mm |
| Modular | Yes (full modular) |
| Bearing Type | Hydro-Dynamic Bearing |
| Fan Bearing | Fluid Dynamic Bearing |
| Rated Speed | 500 – 1800 ±15% RPM |
| Power Watt | 750W |
| Input Voltage Range | 100~240 VAC |
| Power Excursion | 1500W (*up to 200% of the PSU’s rated power for 100μs) |
| Air Flow | 19.79 – 71.27 CFM |
| Static Air Pressure | 0.16 – 2.09 mm-H20 |
| Input Frequency | 47-63Hz |
| Connector | 4-Pin PWM/DC |
| Efficiency | 80 PLUS Gold (up to 90%) |
| Life Expectancy | MTTF 150,000 Hours (25℃) |
| ATX (24 pin) | 1 |
| PCI-E 5.1 (16 pin) | 1 (450W) |
| Fan Size | 120 mm |
| EPS (8 pin) | 2 |
| Dimension | 140 x 150 x 86 mm |
| PCI-E (6+2 pin) | 3 |
| PFC Type | Active PFC |
| SATA (15 pin) | 8 |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
