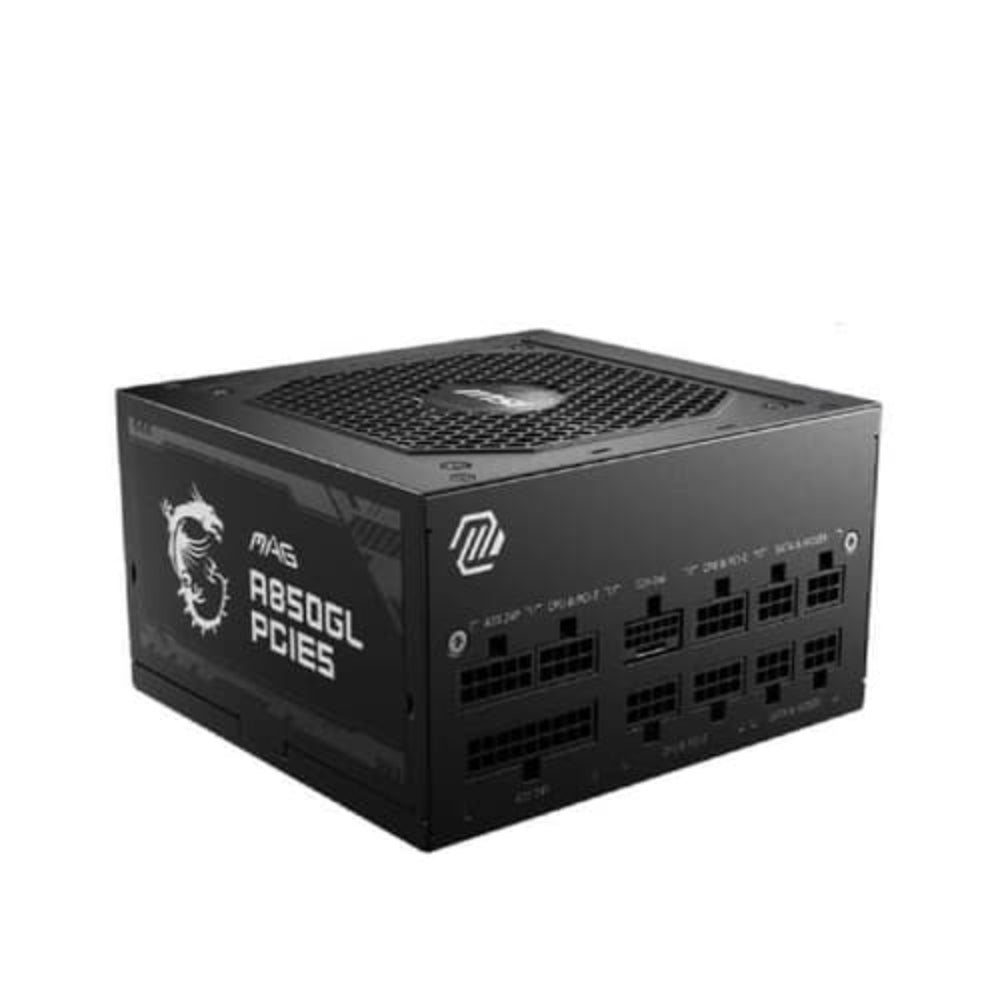

Features of MSI MAG A850GL 850W PCIE5 80+ Gold ATX 3.1 Fully Modular Power Supply
- ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
- Supports NVIDIA GeForce RTX 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the MAG A850GL PCIE5 power supply can hold up to 2x total power excursion and 3x GPU power excursion.
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold and Cybenetics Gold certification promises lower energy consumption and higher efficiency.
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than plenty.

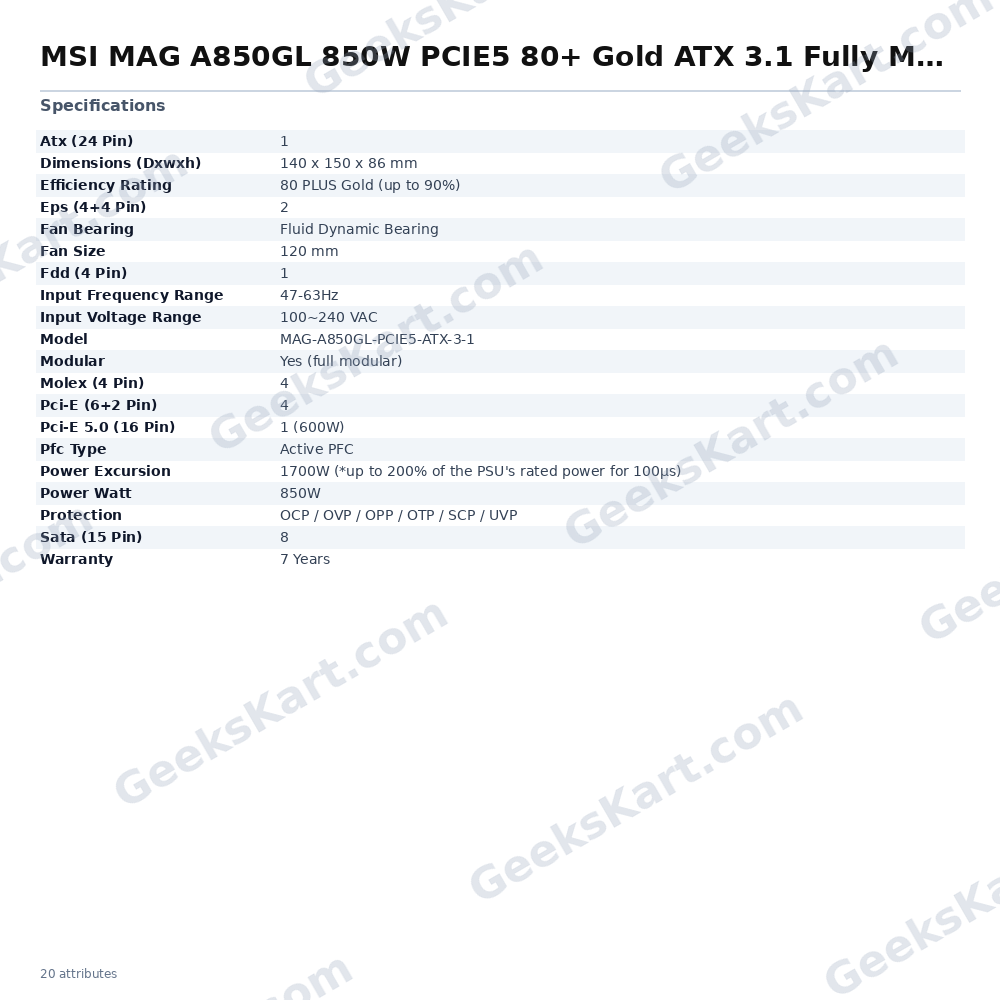

Specification of MSI MAG A850GL PCIE5 850W 80+ Gold ATX 3.1 Fully Modular Power Supply
| Model | MAG-A850GL-PCIE5-ATX-3-1 |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU’s rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 7 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice |
