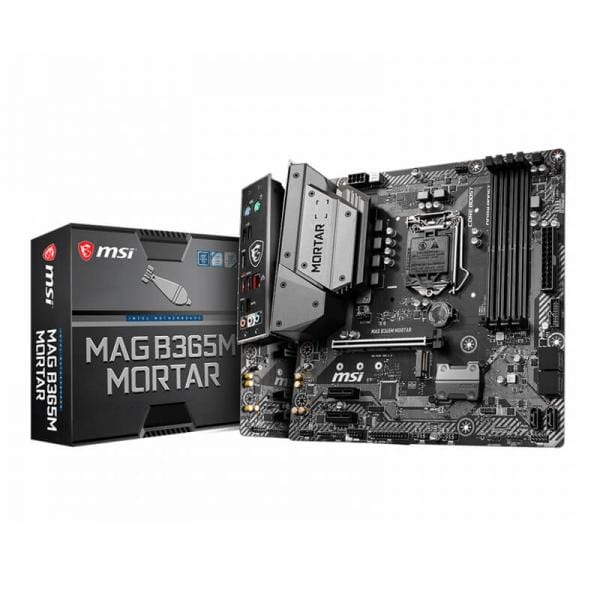

MSI MAG B365M Mortar DDR4 Intel Motherboard
MPN MSI-MAG-B365M-MORTAR · Brand MSI
The MSI MAG B365M Mortar is a Micro-ATX LGA1151 motherboard supporting Intel 8th/9th Gen processors, up to 64 GB DDR4-2666 across four slots, Turbo M.2 NVMe storage, and Intel I219-V Gigabit LAN — with MSI Mystic Light RGB header support
Inclusive of GST · GST invoice available
Overview
The MSI MAG B365M Mortar is a Micro-ATX motherboard built on Intel's B365 chipset, designed for LGA1151 socket processors. It supports Intel 8th and 9th Generation Core, Pentium Gold, and Celeron CPUs, making it a practical platform for both system builds and upgrades centred on that processor generation. Memory headroom is a highlight: four DDR4 slots accept up to 64 GB of non-ECC unbuffered RAM across dual channels, with official speeds of 2133, 2400, and 2666 MHz, plus Intel Extreme Memory Profile (XMP) support for tuned kits. Expansion follows with one PCIe 3.0 x16 slot for a discrete graphics card and two PCIe 3.0 x1 slots for additional cards. Storage options are generous. Six SATA 6 Gb/s ports handle conventional drives, while the single M.2 Key-M slot runs at up to PCIe 3.0 x4 speeds for NVMe SSDs — MSI markets this as Turbo M.2. Form factors 2242, 2260, 2280, and 22110 are all supported. Note that installing a SATA M.2 drive will disable the SATA1 port, and Intel Optane Memory is supported after a BIOS update. Connectivity is covered by an Intel I219-V Gigabit LAN controller, 12 USB ports in total (six USB 3.1 Gen1 and six USB 2.0, split between the rear panel and internal headers), and Realtek ALC892 audio delivering 7.1-channel HD sound. The board ships with a pre-installed I/O shield, aiding EMI protection and simplifying installation. For lighting, internal headers accommodate both a 3-pin RAINBOW addressable LED strip and a 4-pin standard RGB strip, controllable via MSI's Mystic Light software and mobile app. Fan management covers a 4-pin CPU fan header and two 4-pin system fan headers, all with DC or PWM auto-detection and hysteresis control via BIOS or Dragon Center software. The rear panel includes an HDMI 1.4 port capable of outputting up to 4096×2160 at 30 Hz from a processor's integrated graphics, two USB 2.0 ports, four USB 3.1 Gen1 Type-A ports, an Intel LAN port, HD audio jacks, and legacy PS/2 keyboard and mouse ports. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in × 9.6 in (24.3 cm × 24.3 cm) - Chipset: Intel B365 - Socket: LGA1151 (8th/9th Gen Intel Core, Pentium Gold, Celeron) - Memory: 4 × DDR4 slots, up to 64 GB, DDR4-2666/2400/2133, Dual-Channel, XMP - Expansion: 1 × PCIe 3.0 x16, 2 × PCIe 3.0 x1 - Storage: 6 × SATA 6 Gb/s, 1 × M.2 (Key M, PCIe 3.0 x4 / SATA, up to 22110) - USB: 6 × USB 3.1 Gen1, 6 × USB 2.0 - LAN: Intel I219-V Gigabit - Audio: Realtek ALC892, 7.1-Channel HD - Display Output: HDMI 1.4 (max 4096×2160@30Hz) - LED Headers: 1 × 4-pin RGB, 1 × 3-pin RAINBOW - OS Support: Windows 10 64-bit - Warranty: 3 Years

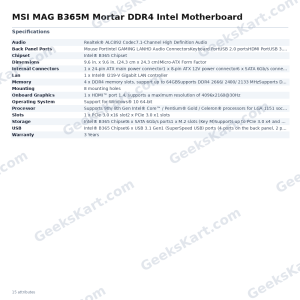

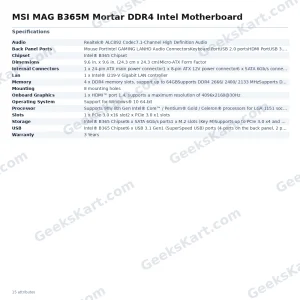

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® B365 Chipset |
| Lan | 1 x Intel® I219-V Gigabit LAN controller |
| USB | Intel® B365 Chipset6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| Audio | Realtek® ALC892 Codec7.1-Channel High Definition Audio |
| Slots | 1 x PCIe 3.0 x16 slot2 x PCIe 3.0 x1 slots |
| Memory | 4 x DDR4 memory slots, support up to 64GBSupports DDR4 2666/ 2400/ 2133 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® B365 Chipset6 x SATA 6Gb/s ports1 x M.2 slots (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devicesIntel® Optane™ Memory ReadySATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Mounting | 8 mounting holes |
| Processor | Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Dimensions | 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)Micro-ATX Form Factor |
| Back Panel Ports | Mouse PortIntel GAMING LANHD Audio ConnectorsKeyboard PortUSB 2.0 portsHDMI PortUSB 3.1 Gen1 Type-A portsUSB 3.1 Gen1 Type-A C ports |
| Onboard Graphics | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector6 x SATA 6Gb/s connectors1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)1 x 4-pin CPU fan connector2 x 4-pin system fan connectors1 x Front panel audio connector2 x Front panel connectors1 x Serial port connector1 x Parallel port connector1 x 3-pin RAINBOW LED connector1 x 4-pin RGB LED connector1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper |
