MSI MAG B460M Mortar DDR4 Intel Motherboard
MPN MSI-MAG-B460M-MORTAR · Brand MSI · mATX

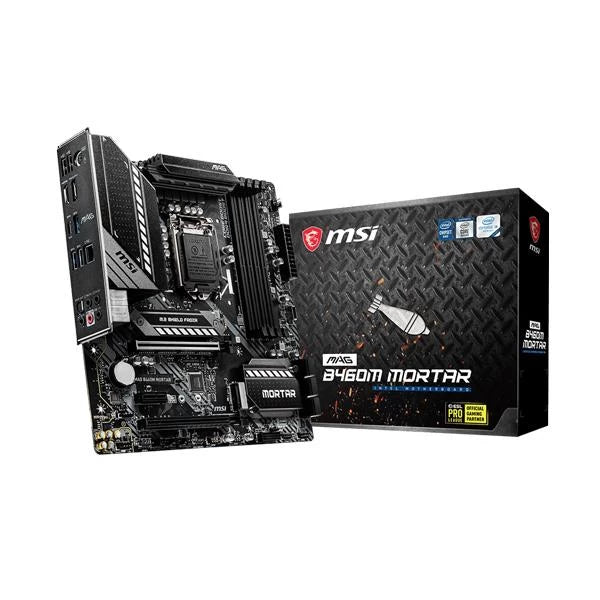

The MSI MAG B460M Mortar is a Micro-ATX motherboard for 10th Gen Intel LGA1200 processors, featuring 4x DDR4 slots (up to 128 GB), dual M.2, 2.5G LAN, and 7.1-channel HD audio in a compact 9.6" x 9.6" form factor
Inclusive of GST · GST invoice available
Overview
The MSI MAG B460M Mortar is a Micro-ATX motherboard built on Intel's B460 chipset, designed for 10th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1200 socket. Its compact 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) footprint makes it well-suited for space-efficient builds without sacrificing connectivity or expansion options. Memory support is generous for its class: four DDR4 DIMM slots accommodate up to 128 GB of non-ECC, unbuffered RAM. Core i7 and i9 processors unlock DDR4-2933 speeds, while Core i5 and below top out at DDR4-2666. Dual-channel operation and Intel XMP profiles are both supported, giving enthusiasts room to optimise performance within chipset limits. Storage flexibility is a highlight. Two M.2 Key-M slots — both reaching PCIe 3.0 x4 — handle NVMe SSDs up to the 2280 form factor, with M2_1 also accepting SATA drives. Six SATA 6 Gb/s ports round out the storage array, and the board supports Intel Optane Memory as well as RAID 0/1/5/10 configurations across SATA devices. Networking is handled by a Realtek RTL8125B controller delivering 2.5 Gigabit Ethernet — a meaningful step above standard Gigabit ports for high-bandwidth local transfers and low-latency online gaming. Wi-Fi antenna connectors on the rear I/O indicate the board is Wi-Fi ready, though a wireless card is not included. Audio comes via a Realtek ALC1200 codec delivering 7.1-channel high-definition output with S/PDIF optical output on the rear panel. USB connectivity is comprehensive: the back panel alone provides one USB 3.2 Gen 1 Type-C, multiple USB 3.2 Gen 1 Type-A, and USB 2.0 ports, while internal headers add further expansion. A pre-installed I/O shield simplifies assembly. The power delivery system uses a 12+1+1 Duet Rail configuration backed by an extended PWM heatsink and an M.2 Shield Frozr to manage thermals on storage and VRM components. RGB and addressable-RGB headers (4-pin RGB and 3-pin RAINBOW) support lighting customisation. BIOS is UEFI AMI with multi-language support. Verified Specifications: - Socket: LGA1200 | Chipset: Intel B460 - Form Factor: mATX — 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) - Memory: 4x DDR4, max 128 GB, DDR4-2933 (i7/i9) / DDR4-2666 (i5 and below), Dual-Channel, XMP - Expansion: 1x PCIe 3.0 x16 (CPU), 1x PCIe 3.0 x16 (PCH, x4 mode), 1x PCIe 3.0 x1 (PCH) - Storage: 6x SATA 6 Gb/s; 2x M.2 (PCIe 3.0 x4); RAID 0/1/5/10 (SATA) - LAN: Realtek RTL8125B 2.5 GbE - Audio: Realtek ALC1200, 7.1-channel HD, S/PDIF optical out - USB: 2x USB 3.2 Gen 1 Type-C, 5x USB 3.2 Gen 1 Type-A, 6x USB 2.0 - Video Out: 1x HDMI (4096x2160 @ 30 Hz), 1x DisplayPort (4096x2304 @ 60 Hz) - I/O Controller: NUVOTON NCT6687 - BIOS: UEFI AMI, 128 Mb flash, ACPI 6.2, SMBIOS 3.2 - Warranty: 3 Years

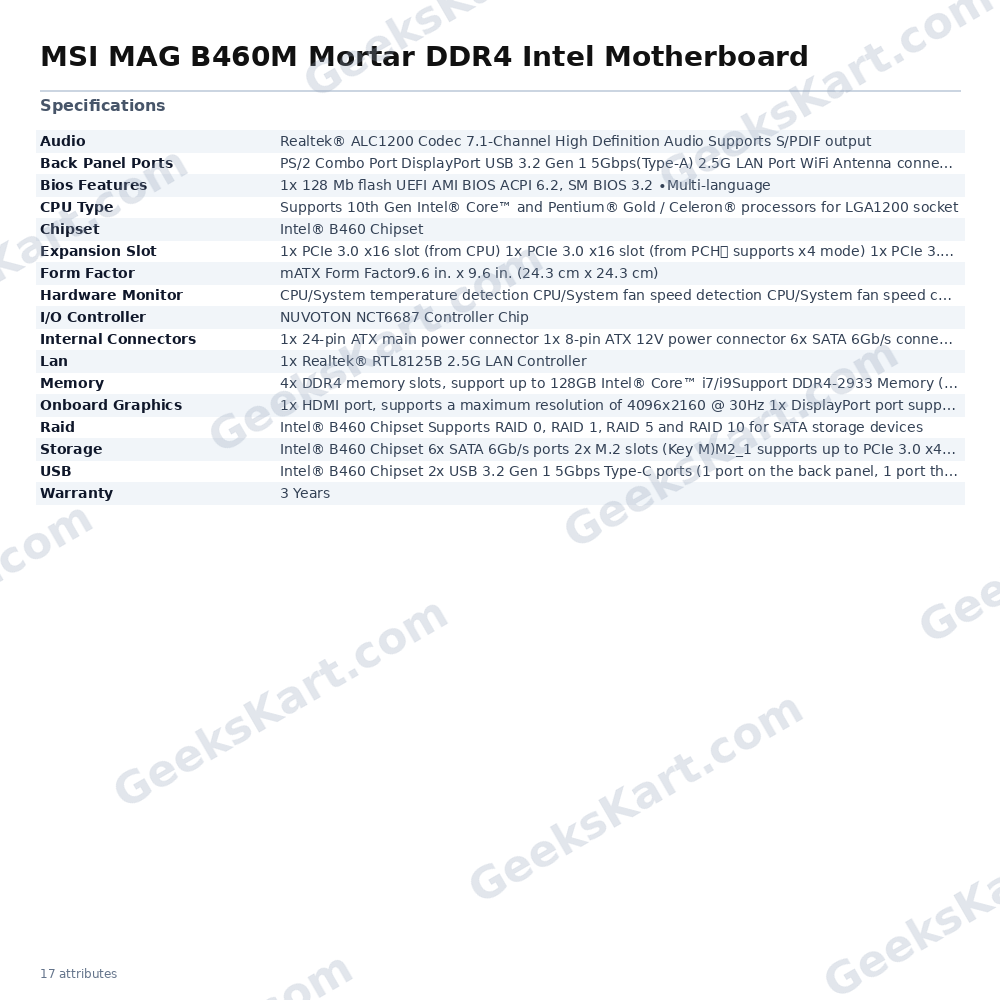

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B460 Chipset |
| CPU Type | Supports 10th Gen Intel® CoreTM and Pentium® Gold / Celeron® processors for LGA1200 socket |
| Lan | 1x Realtek® RTL8125B 2.5G LAN Controller |
| USB | Intel® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Raid | Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Memory | 4x DDR4 memory slots, support up to 128GB Intel® Core™ i7/i9Support DDR4-2933 Memory (Max.) Intel® Core™ i5 (Below)Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
| Bios Features | 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language |
| Expansion Slot | 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH) |
| I/O Controller | NUVOTON NCT6687 Controller Chip |
| Back Panel Ports | PS/2 Combo Port DisplayPort USB 3.2 Gen 1 5Gbps(Type-A) 2.5G LAN Port WiFi Antenna connectors HD Audio Connectors USB 2.0 Ports HDMI Port USB 3.2 Gen 1 5Gbps(Type-C) USB 3.2 Gen 1 5Gbps(Type-A) Optical S/PDIF OUT |
| Hardware Monitor | CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector |
